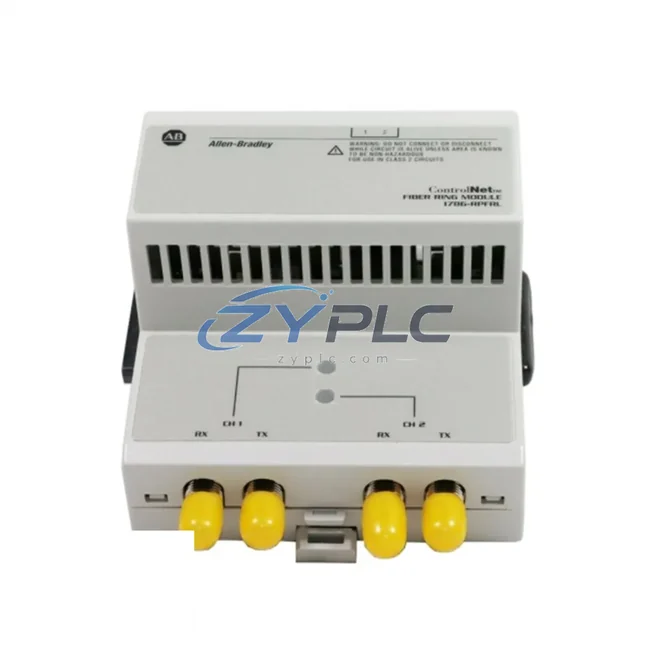

Allen-Bradley 1786-RPFRL Industrial Network Interface for ControlNet Systems

Allen-Bradley 1786-RPFRL: Industrial Data Link for ControlNet Fiber Ring Systems

The Allen-Bradley 1786-RPFRL is a high-performance ControlNet Fiber Ring Long Distance Repeater designed to extend and reinforce industrial communication networks across large-scale manufacturing environments. As a critical node in the ControlNet topology, the 1786-RPFRL enables seamless data flow between field-level devices, PLC controllers, remote I/O modules, HMI panels, SCADA systems, variable frequency drives, and edge gateways — forming the backbone of a transparent, real-time smart factory network.

In modern industrial automation, reliable network communication is not optional — it is the foundation of operational efficiency. The 1786-RPFRL addresses the challenge of signal degradation over long cable runs by leveraging fiber optic transmission, which is immune to electromagnetic interference (EMI) commonly found in heavy industrial environments. Whether deployed in automotive assembly lines, chemical processing plants, water treatment facilities, or discrete manufacturing cells, this repeater ensures that every byte of process data reaches its destination with minimal latency and maximum integrity.

Compatibility & Integration Notes

Connected Automation Data Flow

The 1786-RPFRL sits at the heart of a layered industrial communication architecture. At the field level, sensors and actuators — including proximity switches, pressure transmitters, and photoelectric sensors — feed real-time process signals into remote I/O modules such as the Allen-Bradley 1794-AENT FLEX I/O EtherNet/IP adapter. These I/O modules communicate upstream through ControlNet segments reinforced by the 1786-RPFRL, ensuring that signal integrity is maintained even across distances exceeding 3,000 meters via single-mode fiber.

At the controller level, the Allen-Bradley ControlLogix 1756-L73 PLC acts as the central processing unit, executing ladder logic and function block programs while exchanging scheduled and unscheduled data packets across the ControlNet ring. The 1786-RPFRL regenerates and retimes these packets, preventing jitter and packet loss that could otherwise trigger false alarms or cause process shutdowns. Paired with the 1756-CNB ControlNet Bridge Module, the ControlLogix backplane gains full access to the extended fiber ring network, enabling deterministic communication with all connected nodes.

For human-machine interaction, Allen-Bradley PanelView Plus 7 HMI terminals connect to the ControlNet backbone, displaying live process data, alarm states, and trend graphs sourced directly from the PLC. Operators can acknowledge alarms, adjust setpoints, and initiate manual overrides — all with sub-100ms response times guaranteed by the ControlNet scheduled messaging protocol. The 1786-RPFRL ensures that HMI data refresh cycles remain consistent even under heavy network load.

At the supervisory level, SCADA platforms such as Rockwell Automation FactoryTalk View SE aggregate data from multiple ControlNet segments via RSLinx Classic or FactoryTalk Linx communication middleware. The 1786-RPFRL’s ability to bridge long-distance fiber segments means that SCADA servers located in centralized control rooms can maintain live connections to field devices distributed across multiple production buildings — without requiring additional protocol conversion hardware.

Variable frequency drives such as the Allen-Bradley PowerFlex 755 are integrated into the ControlNet ring via 20-750-CNETC ControlNet communication cards, enabling the SCADA system to monitor motor speed, torque, energy consumption, and fault codes in real time. The 1786-RPFRL ensures that drive status data is delivered on schedule, supporting predictive maintenance algorithms that can detect bearing wear or winding degradation before a failure occurs.

For edge computing and IIoT connectivity, Cisco IE 4000 industrial Ethernet switches bridge the ControlNet data into the plant’s EtherNet/IP backbone, where edge gateways aggregate and pre-process data before forwarding it to cloud analytics platforms. The 1786-RPFRL’s role in maintaining a stable ControlNet ring is therefore foundational to the entire data pipeline — from sensor to cloud.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the condition where field devices, controllers, and supervisory systems operate in disconnected silos, making it impossible to achieve true production transparency. The Allen-Bradley 1786-RPFRL directly addresses this challenge by extending the ControlNet fiber ring to connect previously isolated network segments.

In facilities where copper coaxial ControlNet cable has reached its distance limits, the 1786-RPFRL enables the transition to fiber optic infrastructure without replacing existing ControlNet devices or reprogramming PLC logic. This preserves the investment in existing automation hardware while dramatically expanding the network’s geographic reach. Production lines in separate buildings, outdoor process areas, and high-EMI zones can all be brought onto a single, unified ControlNet ring.

Remote monitoring and diagnostics are transformed by the 1786-RPFRL’s ability to maintain a stable, low-latency communication path between field devices and SCADA systems. Maintenance engineers can use RSNetWorx for ControlNet to remotely browse the network, verify node health, check scheduled bandwidth utilization, and diagnose communication faults — all without physically visiting the field. This capability reduces mean time to repair (MTTR) and supports the shift from reactive to predictive maintenance strategies.

Production line transparency is further enhanced by the deterministic nature of ControlNet communication. Unlike Ethernet-based protocols that rely on collision avoidance, ControlNet uses a time-division multiple access (TDMA) scheme that guarantees each node a fixed communication slot. The 1786-RPFRL preserves this determinism across fiber segments, ensuring that real-time control loops — such as PID controllers managing temperature, pressure, or flow — remain stable and responsive even as the network scales.

System expansion is straightforward with the 1786-RPFRL. New nodes — whether additional remote I/O racks, HMI panels, or drive communication cards — can be added to the ControlNet ring without disrupting existing communications. The repeater’s transparent operation means that the PLC and SCADA system see a single, unified network regardless of how many fiber segments are interconnected.

Industrial Connectivity FAQ

Q1: What is the maximum communication distance supported by the 1786-RPFRL?
The 1786-RPFRL supports long-distance fiber optic transmission, with single-mode fiber enabling segment lengths of up to 3,000 meters per span. Multiple repeaters can be cascaded to extend the network further, making it suitable for large campus-style industrial facilities.

Q2: Is the 1786-RPFRL compatible with existing ControlNet coaxial cable segments?
Yes. The 1786-RPFRL is designed to interface between fiber optic and coaxial ControlNet segments, allowing facilities to extend their existing coaxial infrastructure with fiber without replacing field devices or modifying PLC programs. Protocol compatibility is fully maintained across the transition.

Q3: How does the 1786-RPFRL ensure network stability in high-EMI environments?
By converting the ControlNet signal to fiber optic transmission, the 1786-RPFRL eliminates susceptibility to electromagnetic interference from motors, welding equipment, and high-voltage switchgear. The fiber medium provides galvanic isolation between network segments, preventing ground loop currents from corrupting data. This makes it ideal for steel mills, automotive body shops, and chemical processing plants.

Q4: What warranty and quality assurance does the 1786-RPFRL come with?
Every 1786-RPFRL unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and communication failures. Prior to shipment, each unit undergoes functional testing to verify ControlNet communication, fiber port integrity, and power supply performance. Availability is confirmed via RFQ for same-week global shipping, with full documentation and traceability provided upon request.
