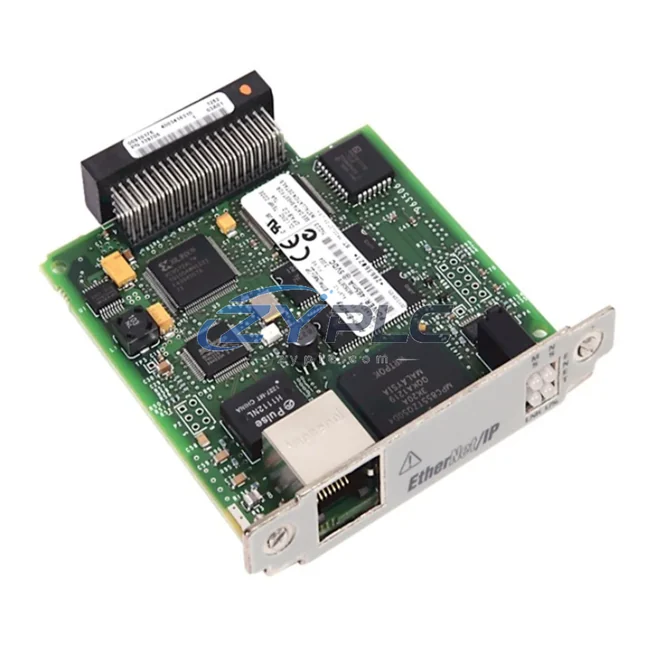

Allen-Bradley 1788-ENBT Industrial Network Interface for 1788 Series Systems

Allen-Bradley 1788-ENBT Industrial Network Interface for 1788 Series Systems: Bridging the Industrial Data Link

The Allen-Bradley 1788-ENBT is a high-performance EtherNet/IP daughterboard module engineered to bridge DeviceNet field-level networks with EtherNet/IP upper-layer communication infrastructure. Designed as a core component within the Allen-Bradley 1788 Series communication platform, this gateway module enables seamless, real-time data exchange between field devices, PLC controllers, SCADA systems, and enterprise-level MES platforms — making it an indispensable element in any modern smart factory architecture.

In industrial environments where data integrity, protocol compatibility, and network uptime are non-negotiable, the 1788-ENBT delivers a reliable, deterministic communication bridge that eliminates data silos and accelerates production transparency. Whether deployed in automotive assembly lines, food and beverage processing plants, water treatment facilities, or discrete manufacturing cells, this module ensures that every signal — from sensor to supervisor — travels with precision and speed.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory deployment, the 1788-ENBT sits at the intersection of field-level sensing and supervisory control. At the device layer, sensors such as photoelectric detectors, proximity switches, and pressure transmitters connect to DeviceNet drop lines, feeding real-time process values upward through the network. Variable frequency drives — including Allen-Bradley PowerFlex 40 and PowerFlex 700 series — communicate torque, speed, and fault status via DeviceNet, with the 1788-ENBT transparently forwarding this data onto the EtherNet/IP backbone.

At the controller level, a ControlLogix L7x or CompactLogix L3x PLC running RSLogix 5000 / Studio 5000 Logix Designer reads I/O data from the 1788-ENBT module through standard EtherNet/IP implicit messaging. The PLC ladder logic processes incoming device states and issues control commands back through the bridge — closing the real-time control loop without any manual intervention. For installations using the 1756-ENBT or 1756-EN2T EtherNet/IP communication modules in a ControlLogix chassis, the 1788-ENBT extends the same EtherNet/IP fabric down to DeviceNet-native field devices, preserving investment in legacy wiring infrastructure.

Remote I/O expansion is handled through 1734 POINT I/O or 1794 FLEX I/O adapters connected on the DeviceNet segment, with the 1788-ENBT aggregating all I/O data and presenting it as a unified EtherNet/IP node to the upstream controller. This architecture dramatically reduces panel wiring complexity and enables modular machine expansion without rewiring.

At the supervisory layer, FactoryTalk View SE or Wonderware InTouch HMI terminals subscribe to EtherNet/IP data tags produced by the 1788-ENBT bridge, rendering live process dashboards, alarm annunciation panels, and trend historians. SCADA platforms such as FactoryTalk Historian or Ignition SCADA poll the EtherNet/IP network at configurable scan rates, archiving production KPIs, energy consumption data, and equipment health metrics for OEE analysis and predictive maintenance workflows.

For edge computing deployments, an industrial edge gateway — such as the Cisco IE 4000 series industrial switch or a Moxa EDS-510E managed Ethernet switch — provides the network infrastructure layer that connects the 1788-ENBT’s EtherNet/IP port to the plant-wide LAN, enabling remote diagnostics and firmware management from the control room or from a cloud-connected operations center.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is the coexistence of multiple, incompatible communication protocols across different generations of equipment. A production line may include DeviceNet-based motor starters installed in 2005, Modbus RTU sensors added in 2012, and a new EtherNet/IP-capable PLC platform commissioned in 2022 — each operating as an isolated data island with no native path to share information.

The Allen-Bradley 1788-ENBT directly addresses this fragmentation by acting as a transparent protocol bridge between DeviceNet and EtherNet/IP. Rather than replacing existing DeviceNet infrastructure — which would require significant rewiring, device replacement, and production downtime — the 1788-ENBT inserts into the existing 1788 Series backplane and immediately makes all DeviceNet device data available on the EtherNet/IP network. This approach preserves capital investment while enabling full production transparency.

Remote monitoring becomes straightforward once the 1788-ENBT is in place. Maintenance engineers can access live device diagnostics — including DeviceNet node health, communication error counters, and device identity objects — directly from RSLinx Classic or RSLinx Enterprise over the EtherNet/IP network, without requiring physical access to the control panel. Alarm conditions detected at the DeviceNet device level are propagated through the bridge and surfaced in the SCADA alarm management system within milliseconds, enabling rapid fault response and minimizing unplanned downtime.

Production line transparency is further enhanced through the 1788-ENBT’s support for explicit messaging, which allows SCADA and MES systems to read device configuration parameters, write setpoints, and execute diagnostic routines on individual DeviceNet nodes — all through standard EtherNet/IP CIP (Common Industrial Protocol) services. This capability supports paperless production reporting, automated quality traceability, and dynamic recipe management without requiring custom middleware or proprietary software.

System expansion is equally simplified. Adding new DeviceNet devices to an existing 1788-ENBT installation requires only assigning a node address and connecting to the DeviceNet trunk — no changes to the EtherNet/IP network configuration, PLC program structure, or SCADA tag database are required beyond adding the new device’s I/O tags. This plug-and-expand architecture supports agile manufacturing strategies and rapid line reconfiguration in response to changing production demands.

Every 1788-ENBT unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying EtherNet/IP connectivity, DeviceNet node scanning, and I/O data integrity before dispatch. Units are shipped with original Allen-Bradley packaging where available, and all products carry a warranty terms confirmed during quotation covering manufacturing defects and communication failures under normal operating conditions. Availability confirmed by RFQ inventory ensures short lead times for urgent MRO and project requirements.

Industrial Connectivity FAQ

Q1: What is the maximum communication latency between a DeviceNet device and an EtherNet/IP controller when using the 1788-ENBT?
A: Under normal operating conditions with a 500 Kbps DeviceNet data rate and a 10 ms RPI (Requested Packet Interval) configured on the EtherNet/IP connection, end-to-end latency from DeviceNet device to PLC controller is typically under 20 ms. For time-critical applications, reducing the RPI and optimizing DeviceNet network loading can bring latency below 10 ms.

Q2: Is the 1788-ENBT compatible with both ControlLogix and CompactLogix PLC platforms?
A: Yes. The 1788-ENBT is designed for use with the 1788 Series backplane and is compatible with ControlLogix (1756 series), CompactLogix (1769 series), and FlexLogix (1794 series) controller platforms when used with the appropriate 1788 Series interface module. Configuration is performed through RSLogix 5000 or Studio 5000 Logix Designer using standard Add-On Profiles.

Q3: Can the 1788-ENBT maintain network stability in electrically noisy industrial environments?
A: The 1788-ENBT is designed to meet IEC 61000-4 EMC immunity standards applicable to industrial environments. For installations in high-noise environments — such as near large VFDs or welding equipment — proper cable shielding, grounding practices per DeviceNet specification, and use of managed industrial Ethernet switches with storm control features are recommended to maintain network stability.

Q4: What warranty and support terms apply to 1788-ENBT units purchased through ZYPLC?
A: All 1788-ENBT units sold by ZYPLC carry a warranty terms confirmed during quotation from the date of shipment, covering defects in materials and workmanship under normal operating conditions. Pre-shipment testing is performed on every unit. Technical support for installation, configuration, and network troubleshooting is available via email and phone. Replacement or refund is provided for confirmed warranty claims within the warranty period.
