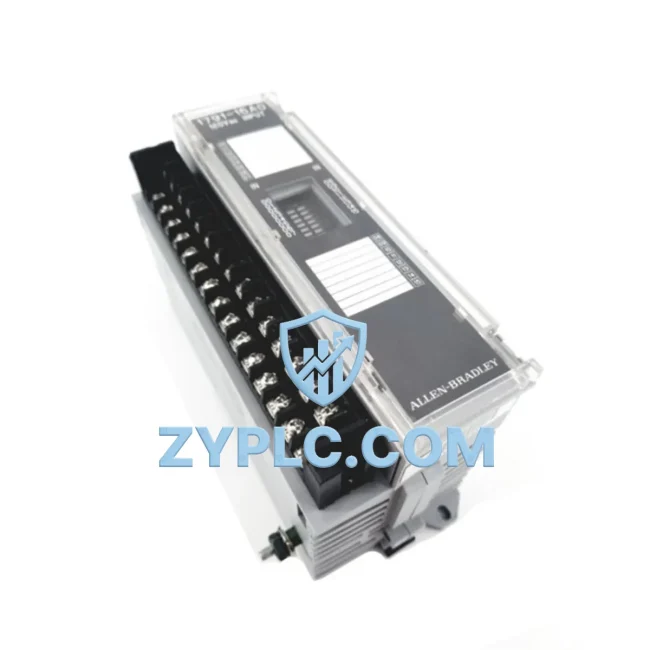

Allen-Bradley 1791-16A0 Block I/O Input Module | Series B

Allen-Bradley 1791-16A0 Block I/O Input Module: Industrial Data Link for Series B DeviceNet Systems

The Allen-Bradley 1791-16A0 is a 16-point discrete input Block I/O module engineered for high-density signal acquisition in demanding industrial environments. As a core node on DeviceNet networks, the 1791-16A0 bridges field-level sensors and actuators directly to PLC control platforms, enabling real-time data flow across the full automation hierarchy — from the plant floor to SCADA dashboards and MES systems. With Series B architecture, this module delivers enhanced noise immunity, deterministic scan cycle performance, and seamless integration into Rockwell Automation’s Connected Enterprise framework.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 1791-16A0 serves as the first link in the industrial data chain. Proximity sensors, photoelectric sensors, and limit switches connect directly to the module’s 16 input channels. The module encodes these discrete signals into DeviceNet I/O messages and transmits them at up to 500 Kbps to a 1756-DNB DeviceNet Scanner module seated in a ControlLogix chassis. The ControlLogix controller — running on a 1756-L73 processor — processes the input data in real time, executing ladder logic or function block programs that govern conveyor sequencing, robotic cell interlocking, and safety zone monitoring.

Upstream, the controller communicates via EtherNet/IP to a 1783-BMS10CGN Stratix managed switch, which routes live process data to a FactoryTalk View SE HMI server and a FactoryTalk Historian node. Operators at the HMI workstation receive millisecond-level status updates from every 1791-16A0 node on the DeviceNet segment, enabling immediate response to fault conditions. For multi-zone production lines, additional 1791-16A0 modules are daisy-chained on the same DeviceNet trunk, with a 1485R-P2R5-C termination resistor maintaining signal integrity at each cable end.

Remote I/O expansion is handled through 1794-ADN FLEX I/O DeviceNet adapters, which allow analog and specialty I/O modules to share the same network segment as the 1791-16A0 discrete input nodes. Variable frequency drives — such as the PowerFlex 525 — also reside on the DeviceNet bus, reporting motor speed, current draw, and fault codes alongside the discrete input data from the 1791-16A0. This unified data stream feeds into a SCADA gateway, where historians log every state change for OEE analysis, predictive maintenance scheduling, and regulatory compliance reporting.

For facilities transitioning to Industry 4.0 architectures, the 1791-16A0 integrates with edge computing platforms via the ControlLogix EtherNet/IP backplane, forwarding pre-processed I/O data to cloud analytics pipelines without disrupting the deterministic DeviceNet scan cycle. The module’s IP67 rating ensures reliable operation in wash-down zones, outdoor enclosures, and high-humidity press rooms where standard DIN-rail I/O would be unsuitable.

Solving Data Isolation in Industrial Sites

Legacy production environments frequently suffer from protocol fragmentation — islands of discrete wiring, proprietary serial links, and incompatible fieldbus segments that prevent unified visibility across the plant. The 1791-16A0 addresses this directly by standardizing field-level discrete input data onto DeviceNet, a globally recognized open network protocol supported by hundreds of device manufacturers. Once sensors are connected to the 1791-16A0, their status is immediately available to any DeviceNet-compatible scanner, eliminating the need for custom wiring panels or protocol converters between the field device and the PLC.

For remote monitoring and diagnostics, the module’s DeviceNet node address and baud rate are configurable via onboard rotary switches, and fault status is reported back to the scanner in real time. Maintenance engineers using RSNetWorx for DeviceNet can remotely browse the network, verify module health, read input states, and update electronic data sheet (EDS) parameters without physical access to the panel — dramatically reducing mean time to repair (MTTR) on distributed production lines.

System scalability is a key advantage of the 1791-16A0 platform. A single DeviceNet segment supports up to 64 nodes, and multiple segments can be bridged through a DeviceNet-to-EtherNet/IP linking device, allowing the input data from hundreds of 1791-16A0 modules to converge in a single ControlLogix controller or SCADA server. This architecture supports phased factory expansion without rewiring existing segments, protecting capital investment as production capacity grows.

Production line transparency is achieved through FactoryTalk Historian integration, which timestamps every input transition logged by the 1791-16A0 and stores it in a time-series database. Quality engineers can replay event sequences to identify root causes of downtime, while OEE dashboards display real-time availability, performance, and quality metrics derived directly from the discrete input data stream.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1791-16A0 on a DeviceNet network?
At 500 Kbps baud rate with a 64-node segment, the 1791-16A0 achieves a typical I/O response time of under 5 milliseconds. For time-critical applications, reducing the node count or increasing baud rate further minimizes latency. The module supports Strobed, Polled, Change-of-State (COS), and Cyclic I/O messaging modes, allowing engineers to optimize scan performance for each application.

Q2: Is the 1791-16A0 compatible with both ControlLogix and CompactLogix platforms?
Yes. The 1791-16A0 is compatible with any DeviceNet scanner module, including the 1756-DNB (ControlLogix), 1769-SDN (CompactLogix), 1747-SDN (SLC 500), and 1771-SDN (PLC-5). Configuration is performed through RSNetWorx for DeviceNet, and the module’s EDS file is available from Rockwell Automation’s product compatibility and download center (PCDC).

Q3: How is network stability maintained in electrically noisy environments?
The 1791-16A0 Series B incorporates enhanced EMI filtering on all input channels and the DeviceNet communication port. Proper cable shielding, grounding at a single point, and the use of Belden 3084A or equivalent DeviceNet-rated cable are recommended. The module’s IP67 enclosure prevents moisture ingress, and its wide operating temperature range (-20°C to +60°C) ensures stable communication in foundry, outdoor, and refrigerated environments.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing performed?
Every 1791-16A0 unit supplied by ZYPLC undergoes functional verification prior to shipment, including DeviceNet communication handshake testing, input channel continuity checks, and power supply validation. The 12-month warranty covers manufacturing defects and communication failures under normal operating conditions. Units are shipped with original packaging and documentation. For warranty claims or technical support, contact our team at plc.sales@zyplc.com or +86 19859288691.
