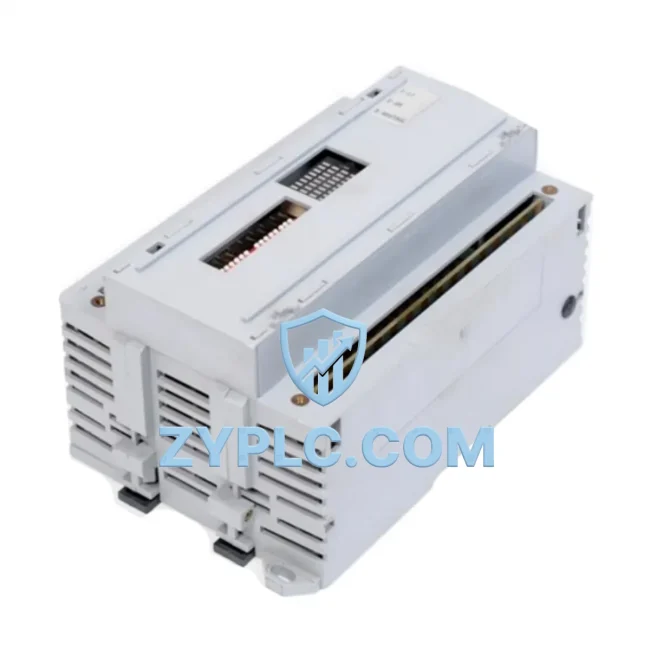

Allen-Bradley 1791-32A0 Block I/O Module

Allen-Bradley 1791-32A0 Block I/O Module: Precision I/O Control for CompactBlock Automation

The Allen-Bradley 1791-32A0 CompactBlock I/O Module is engineered for industrial environments where energy efficiency, reliable discrete signal handling, and minimal control overhead are non-negotiable. As a core component in Allen-Bradley’s CompactBlock I/O architecture, the 1791-32A0 delivers 32 discrete output channels with low-power switching logic, enabling production lines to reduce parasitic energy draw from I/O infrastructure while maintaining deterministic scan-cycle performance. Whether integrated into a legacy SLC 500 control system or bridged into a modern ControlLogix platform via DeviceNet, this module supports the kind of lean, data-driven automation that modern factories demand.

In high-throughput manufacturing environments, I/O modules are often overlooked as energy consumers — yet poorly managed discrete I/O can introduce unnecessary power cycling, extended scan times, and increased heat dissipation across the control panel. The 1791-32A0 addresses this by consolidating 32 output points into a compact, DIN-rail-mountable block that minimizes wiring runs, reduces voltage drop across field devices, and lowers the aggregate current demand on the 24 VDC power supply rail. When paired with an Allen-Bradley 1791-A2B0 or 1791-16A0 input block, the system forms a balanced I/O node that keeps field-side power consumption tightly bounded.

Product Specification Table

System Compatibility and Application

The 1791-32A0 does not operate in isolation — its true energy efficiency value emerges when it is deployed as part of a coherent, well-architected control system. In a typical CompactBlock node, the module connects to a 1791-A2B0 DeviceNet adapter, which handles all network communication and eliminates the need for a dedicated scanner card in the PLC rack, reducing both hardware cost and backplane power draw. The DeviceNet network itself, managed by a 1756-DNB DeviceNet Scanner in a ControlLogix chassis, allows the 1791-32A0 to participate in a distributed I/O topology where only active nodes consume network bandwidth — a key advantage for maintenance-focused system design.

On the drive side, pairing the 1791-32A0 with an Allen-Bradley PowerFlex 525 or PowerFlex 755 variable frequency drive allows the discrete output signals from the module to directly command motor start/stop, speed reference selection, and fault reset — without routing through an intermediate relay panel. This direct digital command path eliminates the energy losses associated with control relay coils and reduces the thermal load inside the control enclosure. The PowerFlex drives’ built-in operational-efficiency algorithms, such as sleep mode and flux optimization, respond faster and more reliably to clean digital signals from a solid-state output block like the 1791-32A0.

For power quality monitoring, integrating an Allen-Bradley PowerMonitor 1000 or PowerMonitor 5000 into the same DeviceNet or EtherNet/IP network provides real-time visibility into operating load at the machine level. When the 1791-32A0 controls high-cycle actuators — pneumatic valves, solenoids, or motor contactors — the PowerMonitor can correlate output switching events with current draw spikes, enabling engineers to identify inefficient load profiles and optimize duty cycles. This data feeds directly into a FactoryTalk Energy Manager instance, closing the loop between I/O-level control and plant-wide energy reporting.

At the sensor and feedback layer, combining the 1791-32A0 with an Allen-Bradley 1734 POINT I/O system for analog input acquisition allows the control architecture to blend discrete output control with continuous process feedback. A 1756-L73 ControlLogix processor running structured text or ladder logic can use analog feedback from current transducers or temperature sensors to modulate the duty cycle of outputs on the 1791-32A0, implementing simple closed-loop maintenance planning without requiring a dedicated motion controller. For operator visibility, a PanelView Plus 7 HMI connected via EtherNet/IP displays real-time output status, cycle counts, and operating load trends — giving line operators the information they need to make informed decisions about equipment utilization.

Maintenance and Replacement Notes

In a high-speed packaging line running three shifts, the 1791-32A0 typically controls conveyor diverters, reject gates, label applicator triggers, and end-of-line accumulation zones. Each of these loads cycles hundreds of thousands of times per week. By replacing aging relay-based output panels with the solid-state 1791-32A0, facilities report measurable reductions in control panel heat generation — directly translating to lower HVAC loads for the electrical room and extended service life for adjacent components.

Downtime reduction is equally significant. The 1791-32A0’s solid-state outputs have no mechanical wear components, eliminating the relay replacement cycles that typically account for 15–20% of planned maintenance labor on older discrete output systems. With predictive maintenance data flowing through the DeviceNet network to a ControlLogix historian, maintenance teams can track output switching frequency per channel and schedule proactive inspections of the field devices being controlled — rather than reacting to unexpected failures that halt production.

For facilities running mixed legacy and modern equipment, the 1791-32A0 serves as a bridge component. Its compatibility with SLC 500 processors via the 1747-SDN DeviceNet Scanner means that older control systems can be extended with additional I/O capacity without a full PLC replacement — deferring capital expenditure while improving the energy profile of the control system. When the facility is ready for a full migration to a ControlLogix or CompactLogix platform, the 1791-32A0 nodes can be retained and re-addressed on the new network, protecting the original investment.

Every unit shipped by ZYPLC undergoes a full functional test under load conditions, verifying output switching response, leakage current within specification, and DeviceNet communication integrity. Units are shipped with a warranty and condition confirmed before quote, and our technical team provides pre-sales compatibility verification to ensure the 1791-32A0 integrates correctly with your existing control architecture before the order is placed.

Product Sourcing FAQ

Q1: How does the 1791-32A0 contribute to measurable operational stability on a production line?
The 1791-32A0 uses solid-state transistor outputs rather than mechanical relays, eliminating coil power draw (typically 1–3 W per relay) across all 32 output points. In high-cycle applications, this reduces both direct power consumption and the secondary cooling load required to manage heat generated by relay coils. When combined with a PowerFlex VFD receiving direct digital start/stop commands, the elimination of intermediate control relays further reduces system-level unplanned downtime.

Q2: Is the 1791-32A0 compatible with both legacy SLC 500 and modern ControlLogix systems?
Yes. The 1791-32A0 communicates over DeviceNet, which is supported by both the SLC 500 (via the 1747-SDN scanner) and ControlLogix (via the 1756-DNB scanner). It can also be integrated into EtherNet/IP-based architectures using a DeviceNet-to-EtherNet/IP linking device, making it a flexible choice for facilities in the middle of a phased control system modernization.

Q3: What is the recommended replacement or upgrade path if the 1791-32A0 is no longer available new from the manufacturer?
For applications requiring a direct form-fit-function replacement, ZYPLC maintains inventory of tested 1791-32A0 units sourced from decommissioned systems and verified against original Allen-Bradley specifications. For facilities open to a platform upgrade, the Allen-Bradley 1734 POINT I/O system with a 1734-ADNX DeviceNet adapter offers a modern alternative with expanded diagnostics and lower per-point power consumption.

Q4: What does the warranty and condition confirmed before quote cover, and what is the testing process before shipment?
Every 1791-32A0 unit sold by ZYPLC is tested for full output switching functionality across all 32 channels, DeviceNet communication response, and leakage current compliance before shipment. The warranty and condition confirmed before quote covers defects in materials and workmanship under normal operating conditions. If a unit fails within the warranty period, ZYPLC provides a replacement unit after fault verification — minimizing production disruption for our customers.
