Allen-Bradley 1791-OB16 Output Block for 1791: Compatibility and Replacement Notes

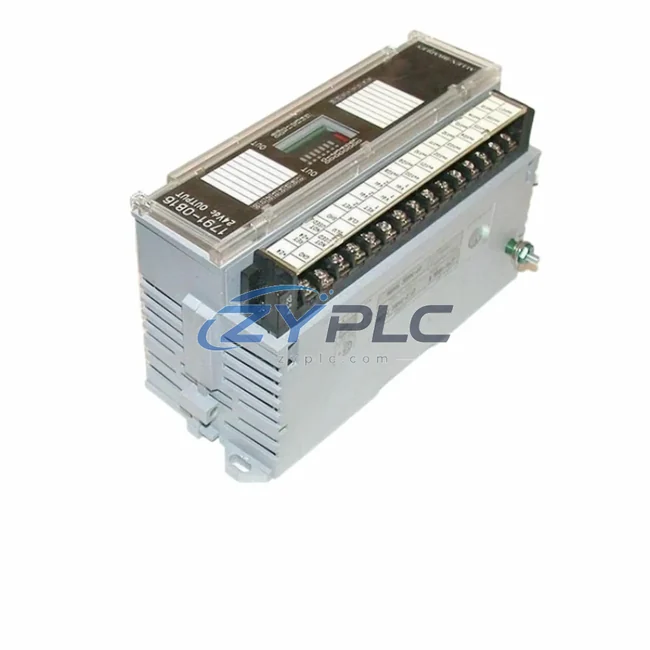

The Allen-Bradley 1791-OB16 is a 16-point 24VDC discrete output Block I/O module engineered for seamless integration within the Allen-Bradley 1791 Block I/O platform. Rather than functioning as a standalone component, the 1791-OB16 occupies a defined role within a layered automation architecture — serving as the execution-layer interface between the programmable logic controller and field devices such as solenoid valves, motor starters, indicator lamps, and relay coils. Understanding this module in the context of a complete control system reveals its true value: consistent signal delivery, deterministic output response, and long-term maintainability across demanding industrial environments.

In a typical 1791-based control architecture, the 1791-OB16 operates downstream of the CPU and communication adapter, receiving discrete output commands via the 1791 backplane or remote I/O link. The module’s 16 sourcing output channels are individually addressable, enabling the controller — such as a SLC 5/04 or SLC 5/05 processor — to drive field actuators with precise timing and status feedback. This tight coupling between the control layer and the execution layer is what defines the 1791 platform’s strength in distributed I/O applications.

Product Specification Table

System Compatibility Notes

The 1791-OB16 does not operate in isolation — its performance is a function of the entire control system architecture surrounding it. In a well-engineered 1791-based system, the module works in concert with a range of complementary components across every automation layer.

At the control layer, a SLC 5/04 (1747-L541) or SLC 5/05 (1747-L551) processor manages the output scan and ladder logic execution. The processor communicates with the 1791-OB16 through a 1791-A2 or 1791-A4 Block I/O Adapter, which serves as the Remote I/O (RIO) gateway between the SLC backplane and the distributed block modules. This adapter is the network-layer bridge that translates RIO protocol commands into direct module I/O updates, ensuring deterministic output response times critical for process control.

At the I/O layer, the 1791-OB16 is frequently deployed alongside complementary input modules such as the 1791-IB16 (16-point 24VDC input block) or the 1791-IB32 (32-point input block), creating a balanced I/O architecture at each field node. For mixed signal applications, the 1791-OB16 pairs naturally with analog output modules such as the 1791-OA8 or dedicated analog blocks, enabling both discrete and process variable control from a single distributed node.

At the power layer, the 1791-OB16 requires a stable 24VDC field power supply. Engineers typically specify a 1606-XLP power supply or equivalent Allen-Bradley 24VDC DIN-rail supply to ensure clean, regulated power to both the module logic circuitry and the output load circuits. Proper power distribution design — including fusing per output group — is essential for protecting the solid-state output transistors and maintaining system uptime.

At the network layer, the RIO link connecting the 1791-A2 adapter to the SLC processor must be properly terminated and shielded. In larger architectures, multiple 1791 block nodes are daisy-chained on a single RIO trunk, with each node assigned a unique rack/group address. The 1770-CD RIO cable and proper Belden 9463 shielded cable are standard for maintaining signal integrity across long cable runs in electrically noisy environments such as motor control centers and switchgear rooms.

At the HMI layer, operator interface terminals such as the 2711P-T7C22D9P (PanelView Plus 7) or legacy 2711-T10C1 (PanelView 1000) provide real-time visualization of output states, alarm conditions, and system diagnostics. The HMI communicates with the SLC processor via DH+ or Ethernet/IP, while the processor’s output image table reflects the live state of each 1791-OB16 channel — giving operators full visibility into field device status without requiring physical inspection.

At the execution layer, the 1791-OB16’s 16 sourcing outputs directly energize field devices including solenoid valve coils, motor starter coils, pilot lights, and relay inputs. The module’s IP67-rated sealed housing makes it suitable for direct panel-edge or machine-frame mounting, reducing wiring runs to field devices and improving overall system reliability.

Industrial Application Notes

The 1791-OB16 has a proven deployment history across a wide range of industrial sectors where distributed I/O, environmental sealing, and deterministic output control are non-negotiable requirements.

In automotive and discrete manufacturing environments, the 1791-OB16 controls pneumatic actuators, part-present indicators, and conveyor divert gates on assembly lines. Its sealed block design eliminates the need for enclosure-mounted I/O racks at each machine station, reducing panel footprint and simplifying maintenance access.

In food and beverage processing plants, the module’s IP67 rating allows it to be mounted close to washdown zones, controlling valve manifolds and conveyor drives while withstanding periodic cleaning cycles. The 24VDC sourcing output type is compatible with the majority of modern solenoid valve coils used in hygienic process lines.

In water and wastewater treatment facilities, the 1791-OB16 manages pump start/stop commands, valve open/close sequences, and chemical dosing actuators across distributed lift stations and treatment process nodes. The RIO communication architecture allows a single SLC 5/04 processor to supervise dozens of distributed 1791 block nodes across a facility, reducing the need for multiple local PLCs.

In oil, gas, and petrochemical applications, the module is deployed in non-hazardous areas of control panels managing utility systems, compressor auxiliaries, and pipeline valve sequencing. Its compatibility with the PLC-5 and SLC 500 platforms — both of which remain widely installed in legacy petrochemical infrastructure — makes the 1791-OB16 a critical spare and replacement component for long-term plant maintenance programs.

In mining and metals processing, the 1791-OB16 controls conveyor belt drives, crusher gate actuators, and dust suppression systems in environments characterized by vibration, dust, and wide temperature swings. The block I/O form factor’s mechanical robustness and sealed housing provide reliable operation under these demanding conditions.

Product Compatibility FAQ

Q1: Is the 1791-OB16 compatible with both SLC 500 and PLC-5 control systems?
Yes. The 1791-OB16 communicates via Allen-Bradley Remote I/O (RIO) protocol, which is natively supported by both the SLC 500 series (SLC 5/02, 5/03, 5/04, 5/05) and the PLC-5 family (PLC-5/11, 5/20, 5/30, 5/40, 5/60, 5/80). The module connects to the controller through a 1791-A2 or 1791-A4 Block I/O Adapter, which handles the RIO protocol translation. No additional communication modules are required at the controller chassis for standard RIO configurations. Verify the RIO scanner capacity of your specific processor model to ensure sufficient rack/group addresses are available for all 1791 nodes on the network.

Q2: What are the key installation and commissioning considerations for integrating the 1791-OB16 into an existing 1791 RIO network?
Prior to installation, confirm the RIO trunk cable is properly terminated at both ends with 82-ohm resistors and that the cable shield is grounded at one point only to prevent ground loops. Assign the 1791-A2/A4 adapter a unique rack/group address that does not conflict with existing nodes on the RIO link. During commissioning, use RSLogix 500 or RSLogix 5 to verify the output image table mapping and confirm that each of the 16 output bits correctly corresponds to the intended field device. Perform a forced output test on each channel before enabling automatic control to verify wiring continuity and load device operation. Ensure field power (24VDC) is applied to the module’s field power terminals before testing output switching.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
Every 1791-OB16 supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each unit undergoes functional testing that verifies output switching on all 16 channels, logic power consumption within specification, and communication response via the RIO interface. The warranty covers defects in materials and workmanship identified under normal operating conditions. For maintenance engineers managing aging SLC 500 or PLC-5 infrastructure, this warranty provides a documented quality assurance baseline that supports spare parts inventory justification and reduces the risk associated with sourcing legacy modules. ZYPLC supports RFQ sourcing for 1791-OB16 and related 1791 series components to support rapid replacement needs and minimize unplanned downtime.
