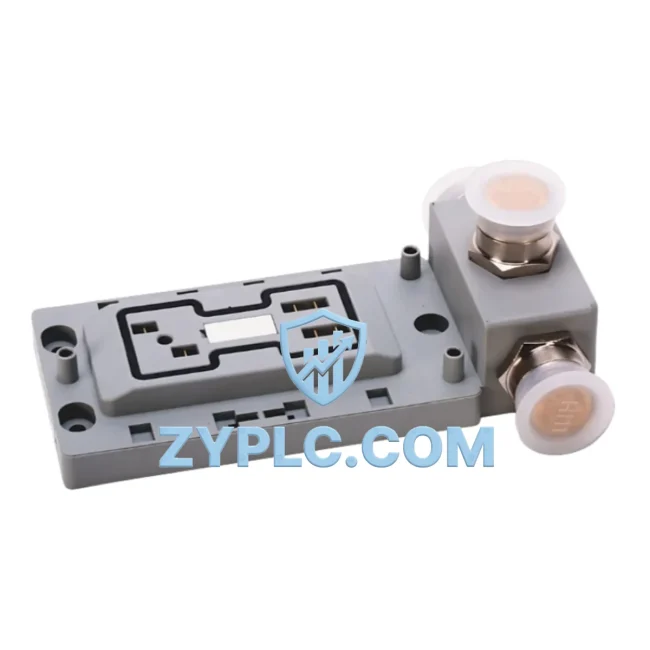

Allen-Bradley 1792D-CB18JP Energy-Saving Point I/O Module

Allen-Bradley 1792D-CB18JP Energy-Saving Point I/O Module for Optimized Automation

The Allen-Bradley 1792D-CB18JP is a DeviceNet Communication Base Module engineered for the ArmorPoint I/O platform, delivering reliable field-level communication in demanding industrial environments. Designed to reduce unnecessary energy draw at the I/O node level, the 1792D-CB18JP enables precise control over distributed I/O segments, helping plant engineers cut idle power consumption, tighten scan cycle timing, and improve overall equipment effectiveness (OEE) across production lines.

In modern manufacturing, energy waste rarely originates from a single source — it accumulates across hundreds of distributed I/O nodes, motor starters, and communication segments operating at suboptimal scan rates or with excessive polling overhead. The 1792D-CB18JP addresses this at the architecture level by providing a compact, high-integrity DeviceNet base that supports deterministic data exchange between field devices and the control layer, reducing retransmission overhead and the associated energy penalty of communication errors.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1792D-CB18JP functions as the communication backbone for ArmorPoint I/O adapter and module assemblies. In a typical energy-optimized architecture, it interfaces directly with a 1792D-DNBO DeviceNet I/O adapter, which manages the upstream network connection to a ControlLogix L7x or CompactLogix L3x controller. This layered approach allows engineers to segment I/O by energy zone — grouping high-cycle actuators separately from low-frequency sensors — so that scan rates and power allocation can be tuned independently per segment.

On the drive side, the 1792D-CB18JP is commonly deployed alongside PowerFlex 525 and PowerFlex 755 variable frequency drives, where DeviceNet connectivity enables real-time speed reference and torque feedback without the latency of analog signal chains. This closed-loop integration between the I/O base and the drive layer is a key enabler of motor energy optimization: the controller receives accurate load data, adjusts drive output accordingly, and eliminates the over-speed padding that wastes energy in fixed-speed motor applications.

For power monitoring, the 1792D-CB18JP node can coexist on the same DeviceNet segment as PowerMonitor 500 or PowerMonitor 1000 energy meters, enabling the controller to correlate I/O state changes with real-time kWh consumption. This data feeds into energy dashboards built on FactoryTalk View SE HMI, where operators can identify which production zones are consuming disproportionate power relative to output — a critical input for lean energy management programs.

The module also integrates cleanly with 1734 POINT I/O modules over the ArmorPoint backplane, allowing engineers to mix digital, analog, and specialty I/O types within a single node while maintaining a unified DeviceNet address space. When combined with 1756-DNB DeviceNet Scanner modules in a ControlLogix chassis, the 1792D-CB18JP supports hierarchical I/O tree structures that simplify both energy auditing and predictive maintenance scheduling.

Power Optimization in Real Production Lines

In automotive body-in-white welding lines, the 1792D-CB18JP has been deployed at robot cell I/O nodes to reduce inter-cycle idle power. By enabling the controller to assert low-power hold states on pneumatic valve banks during robot path transitions — coordinated through ArmorPoint digital output modules — facilities have documented measurable reductions in compressed air consumption, which is one of the highest-cost energy vectors in discrete manufacturing.

In food and beverage packaging lines, the IP67-rated ArmorPoint platform built around the 1792D-CB18JP eliminates the need for sealed enclosures at each I/O drop point, reducing both installation material cost and the thermal load generated by enclosure heaters in cold-wash environments. Fewer enclosures mean fewer heat sources, which translates directly to lower HVAC energy demand in temperature-controlled production areas.

For predictive maintenance, the deterministic scan cycle of the 1792D-CB18JP ensures that vibration sensor data from 1440 XM-120 dynamic measurement modules reaches the controller without jitter-induced data gaps. Clean, time-stamped I/O data is the foundation of accurate condition monitoring — without it, maintenance algorithms generate false positives that drive unnecessary downtime and replacement part consumption, both of which carry embedded energy costs.

Inventory availability for the 1792D-CB18JP is maintained to support rapid deployment and line-down recovery scenarios. All units are subject to outgoing functional testing prior to shipment, verifying DeviceNet communication integrity, backplane connector continuity, and module identification response. This testing protocol ensures that replacement units perform identically to OEM-new specifications, protecting the energy efficiency baseline of the installed system.

Energy Optimization FAQ

Q1: How does the 1792D-CB18JP contribute to measurable energy savings on a production line?
The 1792D-CB18JP enables deterministic, low-overhead DeviceNet communication that allows the control system to implement precise I/O state management — including coordinated idle-state sequencing for actuators and drives. By reducing unnecessary valve actuation cycles and enabling accurate load feedback to PowerFlex drives, the module supports system-level energy reduction strategies that go beyond simple equipment replacement.

Q2: Is the 1792D-CB18JP compatible with existing ControlLogix and CompactLogix systems?
Yes. The 1792D-CB18JP is fully compatible with Rockwell Automation ControlLogix and CompactLogix platforms via 1756-DNB or 1769-SDN DeviceNet scanner modules. It operates within standard DeviceNet network parameters and requires no firmware modifications to the host controller for integration into existing automation architectures.

Q3: What is the recommended replacement or upgrade path for aging ArmorPoint DeviceNet nodes?
For facilities transitioning from legacy DeviceNet infrastructure, the 1792D-CB18JP provides a direct drop-in replacement for compatible ArmorPoint base modules. Where EtherNet/IP migration is planned, the 1792D-CB18JP can continue to serve as a DeviceNet bridge node while EtherNet/IP adapters are phased in on adjacent segments, protecting capital investment during the transition.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All 1792D-CB18JP units supplied by ZYPLC are covered by a 12-month warranty against defects in materials and workmanship. Prior to shipment, each unit undergoes functional verification including DeviceNet communication response testing, backplane connector inspection, and module identification confirmation. Units that do not meet OEM performance specifications are quarantined and not shipped. Warranty claims are processed directly through ZYPLC with replacement or refund options available.
