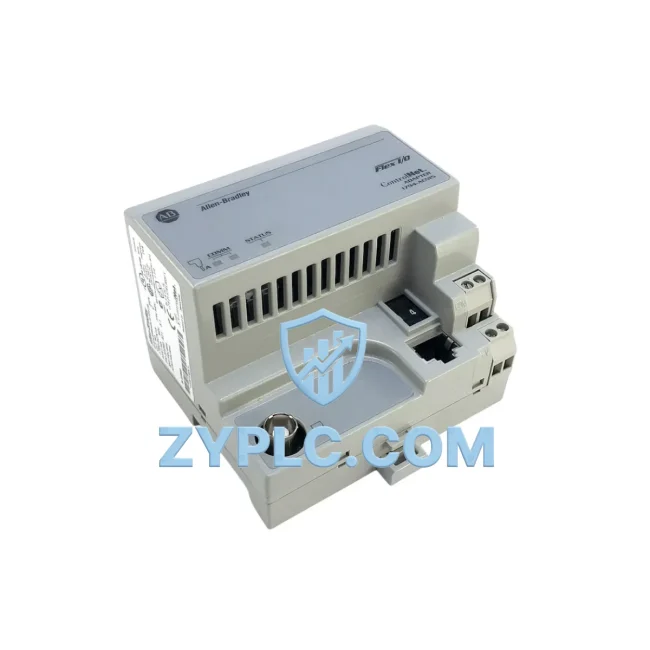

Allen-Bradley 1794-ACN15/C ControlNet Adapter | Flex I/O Series C

Allen-Bradley 1794-ACN15/C: Industrial ControlNet Data Link for Flex I/O Smart Factory Connectivity

The Allen-Bradley 1794-ACN15/C is a high-performance ControlNet communication adapter designed for the Flex I/O platform, enabling seamless integration between field-level devices and upper-level control systems in demanding industrial environments. As a core node in the ControlNet network architecture, this adapter bridges the data gap between distributed I/O modules, PLC controllers, SCADA systems, and HMI terminals — forming the backbone of a transparent, real-time smart factory data chain.

In modern industrial automation, the ability to move data reliably from sensors and actuators through the control layer to supervisory systems is not optional — it is the foundation of operational efficiency. The 1794-ACN15/C fulfills this role by providing deterministic, high-speed ControlNet communication with full support for both scheduled (time-critical) and unscheduled (messaging) data transfers, ensuring that every signal from the production floor reaches the right system at the right time.

Network Communication Table

Connected Automation Data Flow

The 1794-ACN15/C sits at the intersection of field instrumentation and plant-wide control networks. In a typical smart factory deployment, field sensors — including pressure transmitters, flow meters, and proximity switches — feed analog and digital signals into Flex I/O modules such as the 1794-IE8 (8-channel analog input) and 1794-OB16 (16-channel digital output). These I/O modules connect directly to the 1794-ACN15/C adapter, which aggregates all field data and transmits it over the ControlNet backbone at 5 Mbps with deterministic scheduling.

On the controller side, Allen-Bradley ControlLogix 1756-L7x and CompactLogix 5370 PLCs equipped with 1756-CNB or 1756-CNBR ControlNet bridge modules receive the I/O data in real time, executing ladder logic and function block programs that govern machine behavior. The ControlNet network’s scheduled bandwidth ensures that time-critical I/O updates — such as servo drive feedback from a PowerFlex 755 variable frequency drive — arrive within guaranteed cycle times, preventing process deviations.

For supervisory visibility, the ControlNet data stream is bridged to the Ethernet/IP layer via a 1756-ENBT EtherNet/IP bridge module, making all Flex I/O data accessible to FactoryTalk View SE SCADA and HMI stations. Operators can monitor real-time process values, configure alarm thresholds, and initiate remote diagnostic routines without interrupting production. In multi-zone facilities, additional ControlNet segments — each served by its own 1794-ACN15/C node — can be interconnected through ControlNet repeaters or bridged via 1788-CNF ControlNet fiber modules, extending the network across large plant footprints without signal degradation.

Edge computing nodes and industrial IoT gateways can tap into the ControlNet data stream through protocol conversion middleware, forwarding aggregated production KPIs to MES and ERP platforms. This end-to-end data chain — from the 1794-ACN15/C at the field level to cloud-based analytics dashboards — is what defines the connected, data-driven smart factory.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation: field devices that cannot communicate with upper-level systems, proprietary protocols that block interoperability, and remote assets that are invisible to plant management. The 1794-ACN15/C directly addresses these pain points.

Protocol Unification: By standardizing field I/O communication on ControlNet — an open, ODVA-certified protocol — the 1794-ACN15/C eliminates the proprietary barriers that create data silos. Devices from multiple vendors can coexist on the same ControlNet segment, with the adapter managing all scheduled and unscheduled data exchanges transparently.

Remote Monitoring and Diagnostics: The adapter supports RSNetWorx for ControlNet network configuration and diagnostics tools, allowing engineers to remotely verify node health, check communication status, and identify faults without physical access to the panel. This capability is critical for facilities with distributed equipment across large production areas or multiple buildings.

Production Line Transparency: With all Flex I/O data flowing through the 1794-ACN15/C into the ControlLogix controller and onward to FactoryTalk SCADA, every production parameter — cycle counts, fault states, energy consumption, and throughput rates — becomes visible in real time. Supervisors gain the line transparency needed to make data-driven decisions and respond to anomalies before they escalate into downtime.

System Scalability: The Flex I/O platform’s modular architecture means that additional I/O modules can be added to an existing 1794-ACN15/C node without rewiring the ControlNet segment. As production requirements grow, the network scales horizontally by adding new adapter nodes, keeping infrastructure investment proportional to operational need.

Outgoing Inspection and Quality Assurance: Every 1794-ACN15/C unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, firmware version, and hardware condition. Units are shipped with original packaging where available, and all products carry a 12-month warranty covering manufacturing defects and communication failures.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1794-ACN15/C on a ControlNet network?
ControlNet provides deterministic, scheduled communication with configurable Requested Packet Intervals (RPI). For the 1794-ACN15/C, typical I/O update rates range from 2 ms to 500 ms depending on network load and the number of scheduled connections. This determinism makes ControlNet — and the 1794-ACN15/C — suitable for motion control, process control, and safety-critical applications where unpredictable latency is unacceptable.

Q2: Is the 1794-ACN15/C compatible with both ControlLogix and CompactLogix controllers?
Yes. The 1794-ACN15/C is fully compatible with any Rockwell Automation controller that supports ControlNet communication, including the ControlLogix 1756 platform (with 1756-CNB/CNBR modules) and CompactLogix systems with ControlNet interface cards. Network configuration is performed using RSNetWorx for ControlNet, and I/O mapping is managed within Studio 5000 Logix Designer.

Q3: How does the 1794-ACN15/C handle network redundancy and fault tolerance?
The 1794-ACN15/C supports dual-port BNC coaxial connections, enabling media redundancy configurations where two independent cable paths carry the same ControlNet signal. If one cable path fails, the network automatically continues operating on the redundant path without data loss or controller faults. This architecture is essential for high-availability production environments where network downtime directly impacts output.

Q4: What warranty and support does ZYPLC provide for the 1794-ACN15/C?
ZYPLC provides a 12-month warranty on all 1794-ACN15/C units, covering hardware defects and communication failures under normal operating conditions. Each unit is tested prior to shipment for ControlNet communication integrity. Global express shipping via DHL and FedEx ensures fast delivery to industrial sites worldwide. For technical support, spare part sourcing, or volume pricing, contact our team at [email protected] or +86 19859288691.
