Allen-Bradley 1794-IA16 Industrial Network Interface for Flex I/O Systems: Bridging Field Signals to Smart Factory Data Links

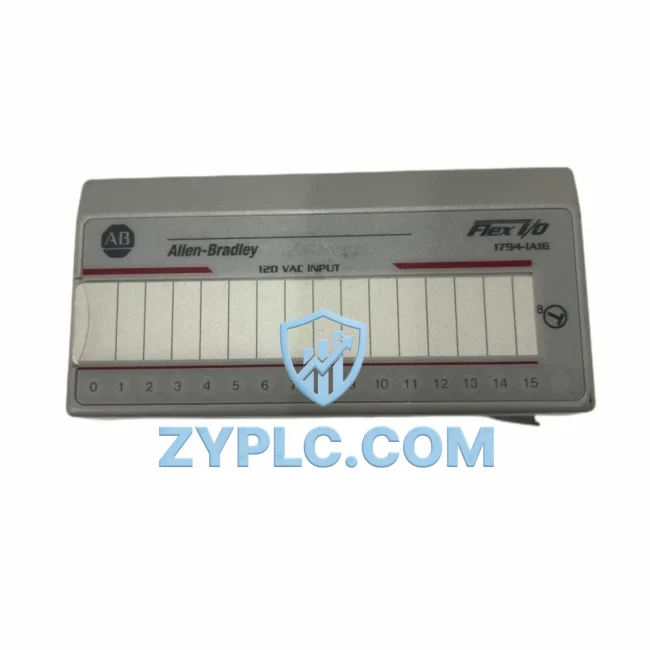

The Allen-Bradley 1794-IA16 is a 16-point, 120VAC digital input module engineered for the Flex I/O platform — one of Rockwell Automation’s most versatile distributed I/O architectures for industrial network environments. Designed to operate seamlessly over the FlexBus backplane and integrate with EtherNet/IP-based control networks, the 1794-IA16 serves as a critical data acquisition node in modern smart factory deployments. Whether you are connecting field-level sensors to a ControlLogix or CompactLogix PLC controller, feeding real-time signal data into a SCADA system, or extending your remote I/O architecture across a production floor, this module delivers the communication reliability and protocol compatibility that industrial automation demands.

In today’s connected manufacturing environment, the ability to capture discrete field signals and transmit them accurately across an industrial Ethernet backbone is foundational to operational transparency. The 1794-IA16 fulfills this role by accepting 120VAC input signals from pushbuttons, limit switches, proximity sensors, and other field devices, then converting those signals into digital data that travels via the FlexBus interface to an adapter module — such as the 1794-AENT EtherNet/IP adapter or the 1794-ADN DeviceNet adapter — and onward to the control layer. This architecture eliminates data isolation at the field level and ensures that every input state is visible to the PLC, HMI, and SCADA layers in real time.

Network Communication Table

Connected Automation Data Flow

The 1794-IA16 sits at the very beginning of the industrial data chain. At the field level, discrete 120VAC signals from limit switches, photoelectric sensors, emergency stop buttons, and motor run-feedback contacts are wired directly into the module’s input terminals via a compatible Flex I/O terminal base unit. Once captured, these binary states are transmitted across the FlexBus backplane to an adapter module. When paired with the 1794-AENT EtherNet/IP Adapter, the 1794-IA16 becomes a fully networked node on a standard 100Mbps industrial Ethernet segment, enabling the ControlLogix L7x or CompactLogix L3x PLC controller to poll input states at deterministic scan rates.

Within the control layer, the PLC processes the incoming digital data and executes ladder logic or function block programs that govern machine behavior. The same EtherNet/IP network that carries I/O data also supports messaging to PanelView Plus HMI terminals, where operators can monitor input states, acknowledge alarms, and visualize production line status in real time. For facilities running FactoryTalk View SE or FactoryTalk Historian, the 1794-IA16’s data is automatically logged and trended, providing the historical dataset needed for OEE analysis and predictive maintenance programs.

In distributed architectures, the 1794-IA16 is frequently deployed alongside 1794-OB16 digital output modules and 1794-IE8 analog input modules on the same Flex I/O rack, creating a compact, mixed-signal remote I/O node that can be installed close to the machine — minimizing field wiring runs and reducing signal degradation. Where legacy DeviceNet infrastructure is in place, the 1794-ADN DeviceNet Adapter provides an alternative communication path, allowing the same 1794-IA16 module to participate in a DeviceNet segment managed by a 1756-DNB scanner card in a ControlLogix chassis.

For plants integrating Siemens SIMATIC S7 controllers or other non-Rockwell PLCs, protocol gateways such as the ProSoft Technology MVI56E-MNET or similar EtherNet/IP-to-Modbus TCP gateways bridge the communication gap, allowing the 1794-IA16’s input data to be consumed by third-party SCADA platforms including Wonderware InTouch, Ignition by Inductive Automation, or Siemens WinCC. Edge computing nodes — such as the Stratus ftServer or Cisco IE3400 industrial switch — can further aggregate and forward this data to cloud-based MES or ERP systems, completing the data flow from field sensor to enterprise dashboard.

Power distribution within the Flex I/O rack is managed by the 1794-TB3 or 1794-TB3S terminal base, which provides the mechanical mounting and field wiring interface for the 1794-IA16. Industrial power supplies such as the Allen-Bradley 1606-XLP series deliver the regulated 24VDC logic power required by the FlexBus backplane, ensuring stable operation even in electrically noisy environments typical of motor control centers and variable frequency drive (VFD) panels.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of field data — sensors and actuators that generate valuable process information but cannot communicate it to higher-level systems due to protocol mismatches, aging point-to-point wiring, or the absence of a unified network backbone. The 1794-IA16, as part of the Flex I/O ecosystem, directly addresses this problem by providing a standardized, network-ready interface for 120VAC discrete signals that would otherwise require dedicated hardwired connections to a centralized I/O rack.

By distributing Flex I/O nodes — each containing a 1794-IA16 and companion modules — throughout a production facility and connecting them via EtherNet/IP, plant engineers can achieve complete input visibility across multiple production cells from a single SCADA workstation. Alarm conditions detected at the field level are propagated through the network in milliseconds, enabling rapid fault response and reducing unplanned downtime. Remote diagnostic capabilities built into the EtherNet/IP protocol allow maintenance engineers to query module health, verify input states, and troubleshoot wiring faults without physically accessing the panel — a critical advantage in hazardous or hard-to-reach installation locations.

System expansion is equally straightforward: additional 1794-IA16 modules can be added to an existing Flex I/O rack (up to the adapter’s node capacity) without modifying the network infrastructure. This scalability makes the Flex I/O platform — and the 1794-IA16 specifically — a long-term investment for facilities planning phased automation upgrades. Protocol unification across mixed-vendor environments is achievable through gateway devices, ensuring that the 1794-IA16’s data can be consumed by any SCADA, MES, or cloud analytics platform regardless of the underlying communication standard.

Every 1794-IA16 unit supplied by ZYPLC undergoes pre-shipment functional verification, confirming input channel integrity, FlexBus communication, and module identification. All units are covered by a 12-month warranty, and verified inventory is maintained for immediate dispatch to support urgent production requirements and MRO replenishment programs globally.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1794-IA16 support?
The 1794-IA16 itself communicates via the FlexBus backplane protocol. The network protocol — EtherNet/IP, DeviceNet, ControlNet, or PROFIBUS — is determined by the adapter module installed on the same Flex I/O rack. Common adapter choices include the 1794-AENT for EtherNet/IP and the 1794-ADN for DeviceNet, making the 1794-IA16 compatible with a wide range of industrial network architectures.

Q2: Can the 1794-IA16 be integrated with non-Rockwell SCADA or PLC systems?
Yes. When connected via an EtherNet/IP adapter, the 1794-IA16’s data can be accessed by any SCADA platform that supports EtherNet/IP or OPC-UA — including Ignition, Wonderware, and Siemens WinCC — either natively or through protocol gateway devices. This makes it suitable for multi-vendor smart factory environments.

Q3: What is the typical communication latency for the 1794-IA16 on an EtherNet/IP network?
When configured with a 1794-AENT adapter on a dedicated EtherNet/IP segment, the 1794-IA16 supports Requested Packet Intervals (RPI) as low as 1ms, delivering near-real-time input data to the PLC controller. Actual latency depends on network topology, switch configuration, and PLC scan time.

Q4: Does ZYPLC provide a warranty and pre-shipment testing for the 1794-IA16?
Yes. All 1794-IA16 units are functionally tested prior to shipment to verify input channel operation and FlexBus communication integrity. Each unit is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Expedited shipping and in-stock availability ensure minimal lead times for production-critical orders.
