Allen-Bradley 1794-IE8H Industrial Network Interface for FLEX I/O Systems

Allen-Bradley 1794-IE8H: Industrial Data Link for FLEX I/O Smart Factory Connectivity

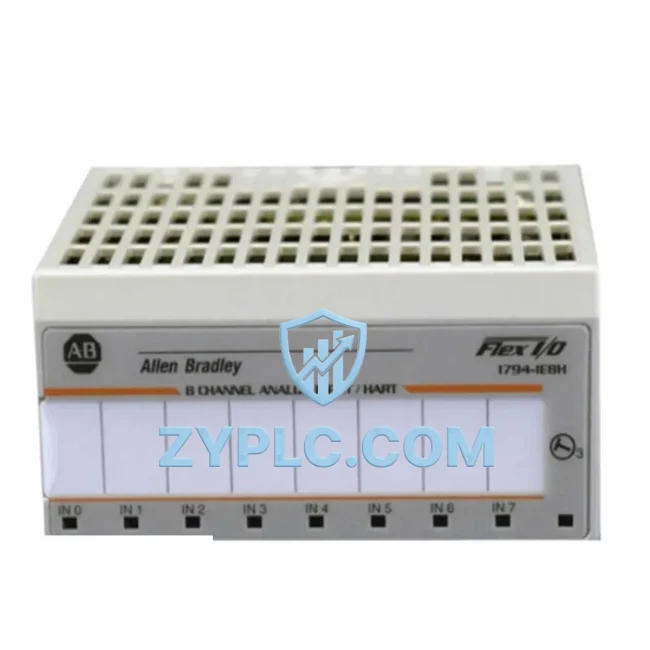

The Allen-Bradley 1794-IE8H is an 8-channel analog input module engineered for the FLEX I/O platform — one of Rockwell Automation’s most widely deployed distributed I/O architectures in industrial automation. Designed to bridge the gap between field-level sensors and upper-layer control systems, the 1794-IE8H delivers precise signal acquisition, reliable protocol communication, and seamless integration across the full automation data chain: from field devices and PLC controllers to SCADA platforms, HMI terminals, and enterprise MES systems.

In modern smart factory environments, the ability to collect, transmit, and act on real-time analog data is foundational to operational transparency. The 1794-IE8H fulfills this role by accepting current and voltage signals from transmitters, pressure sensors, flow meters, temperature transducers, and other field instruments, then converting them into digital values that can be processed by the host controller — typically a ControlLogix or CompactLogix PLC — over the FLEX I/O backplane bus.

Network Communication Table

Connected Automation Data Flow

The 1794-IE8H sits at the heart of a distributed sensing and control architecture. In a typical smart factory deployment, field instruments such as pressure transmitters, thermocouple signal conditioners, and ultrasonic flow sensors feed 4–20 mA or 0–10 V signals directly into the 1794-IE8H input channels. These analog values are digitized and passed across the FLEX I/O backplane to a communication adapter — most commonly the 1794-AENT EtherNet/IP adapter — which encapsulates the process data into standard EtherNet/IP packets for transmission over the plant network.

At the controller level, a ControlLogix L7x or CompactLogix L3x PLC receives the I/O data via the EtherNet/IP scanner port, executing ladder logic or function block programs that compare real-time values against setpoints. When a process variable exceeds its alarm threshold — for example, a tank pressure reading from a connected 1794-IE8H channel — the PLC triggers an output command to a PowerFlex 525 variable frequency drive, adjusting pump speed to restore normal operating conditions within milliseconds.

Simultaneously, the same process data is mirrored to a PanelView Plus 7 HMI terminal via EtherNet/IP, giving operators a real-time graphical view of all analog inputs across the production line. Alarm banners, trend charts, and historical logs are rendered directly from the live I/O values sourced through the 1794-IE8H, enabling operators to identify anomalies without leaving the control room.

For SCADA integration, the EtherNet/IP data stream is consumed by a FactoryTalk View SE SCADA server, which aggregates analog readings from multiple FLEX I/O nodes distributed across the plant floor. Each 1794-IE8H node — whether mounted in a remote panel near a reactor vessel or in a centralized MCC room — contributes its channel data to the unified SCADA historian, enabling long-term trend analysis, OEE calculation, and predictive maintenance scheduling.

In installations requiring protocol bridging — for example, connecting legacy PROFIBUS field devices to a modern EtherNet/IP backbone — a ProSoft Technology MVI56E-PDPMV1 gateway module can be inserted into the ControlLogix chassis alongside the FLEX I/O network, translating PROFIBUS DP data into tags accessible by the same controller that manages the 1794-IE8H inputs. This unified data model eliminates the need for separate SCADA drivers and reduces integration complexity significantly.

Remote I/O expansion is equally straightforward. Additional 1794-OB16 digital output modules and 1794-TB3 terminal base units can be added to the same FLEX I/O rack as the 1794-IE8H, extending the system’s I/O capacity without requiring additional network nodes or controller resources. For edge computing applications, an Allen-Bradley Stratix 5700 managed Ethernet switch provides the network infrastructure to connect multiple FLEX I/O drops, PLC backplanes, and HMI stations within a single, VLAN-segmented industrial Ethernet topology.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate in separate communication silos, preventing real-time visibility and coordinated control. The 1794-IE8H directly addresses this problem by serving as a universal analog front-end that feeds data into the EtherNet/IP ecosystem, the most widely adopted industrial Ethernet protocol in North American manufacturing.

Protocol fragmentation is a common barrier in brownfield facilities where older DeviceNet or ControlNet segments coexist with newer EtherNet/IP infrastructure. By pairing the 1794-IE8H with the appropriate FLEX I/O adapter — the 1794-ADN for DeviceNet or the 1794-ACN15 for ControlNet — engineers can integrate analog field data into legacy network architectures without replacing existing cabling or controllers. This backward compatibility protects capital investment while enabling a phased migration toward fully Ethernet-based plant networks.

Production line transparency is another key benefit. With the 1794-IE8H providing continuous, high-resolution analog data to the SCADA historian, plant managers gain access to real-time KPIs — cycle times, energy consumption, process temperatures, and flow rates — that were previously invisible or available only through manual sampling. This data transparency is the foundation of lean manufacturing initiatives, enabling data-driven decisions that reduce waste, improve yield, and shorten changeover times.

Remote diagnostics capability is built into the FLEX I/O platform. Through the EtherNet/IP adapter, maintenance engineers can query the 1794-IE8H’s channel status, calibration data, and fault codes from any networked workstation — or even remotely via a secure VPN connection to the plant network. This eliminates the need for on-site troubleshooting visits for routine diagnostics, reducing mean time to repair (MTTR) and minimizing unplanned downtime.

System scalability is a core design principle of the FLEX I/O architecture. As production capacity grows, additional 1794-IE8H modules can be added to existing racks, or new FLEX I/O drops can be deployed at remote locations across the plant — all managed from the same ControlLogix or CompactLogix controller without changes to the network topology or SCADA configuration.

Industrial Connectivity FAQ

Q1: What communication protocols does the 1794-IE8H support?
The 1794-IE8H itself communicates over the FLEX I/O backplane bus. The network protocol — EtherNet/IP, DeviceNet, or ControlNet — is determined by the communication adapter installed in the same FLEX I/O rack. Common adapters include the 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), and 1794-ACN15 (ControlNet), giving the module broad compatibility with existing plant network infrastructures.

Q2: How does the 1794-IE8H ensure network stability and data integrity?
The FLEX I/O backplane uses a deterministic, cyclic communication model that guarantees consistent scan times and eliminates data collisions between modules. Combined with the EtherNet/IP adapter’s CIP (Common Industrial Protocol) implementation, the system provides implicit I/O messaging with configurable RPI (Requested Packet Interval) rates as low as 1 ms, ensuring real-time data delivery to the host controller even in high-traffic network environments.

Q3: Can the 1794-IE8H be integrated with third-party SCADA and HMI systems?
Yes. Because EtherNet/IP is an open, ODVA-standardized protocol, the 1794-IE8H’s data is accessible to any SCADA or HMI platform with an EtherNet/IP driver — including Wonderware, Ignition by Inductive Automation, Siemens WinCC, and GE iFIX, in addition to Rockwell’s native FactoryTalk View SE. OPC-UA gateways can also be used to expose the analog data to cloud-based analytics platforms and MES systems.

Q4: What does the 12-month warranty cover, and how is the module tested before shipment?
Every 1794-IE8H supplied by ZYPLC undergoes pre-shipment functional testing to verify channel accuracy, communication integrity, and backplane compatibility. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Modules are shipped in original or equivalent protective packaging via DHL or FedEx Express, with full export documentation and compliance certification provided upon request.
