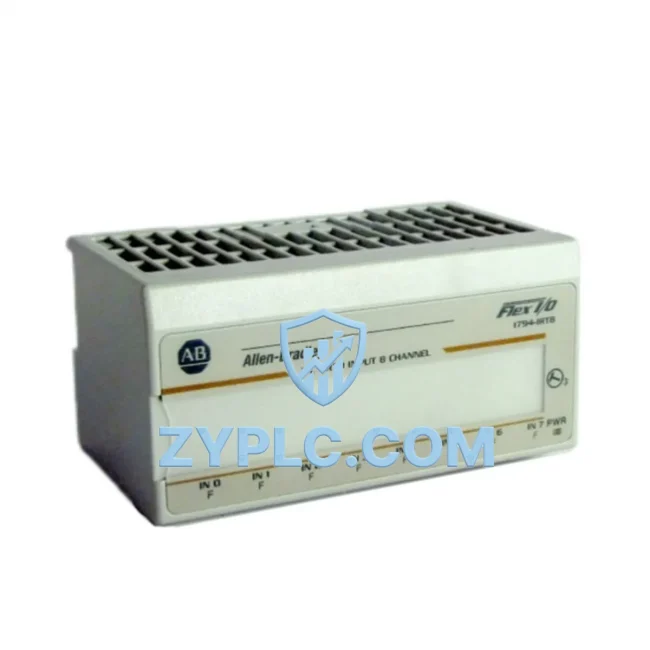

Allen-Bradley 1794-IRTB Industrial Network Interface for FLEX I/O Systems

Allen-Bradley 1794-IRTB FLEX I/O RTD Input Module: Industrial Data Link for Smart Factory Systems

The Allen-Bradley 1794-IRTB is a high-precision RTD and resistance input module engineered for the FLEX I/O platform, delivering reliable temperature and process data across EtherNet/IP, ControlNet, and DeviceNet industrial networks. Designed for demanding automation environments, the 1794-IRTB bridges field-level sensing devices and upper-level control systems — enabling real-time data acquisition, protocol-transparent communication, and seamless integration into modern SCADA and HMI architectures.

In smart factory deployments, the 1794-IRTB serves as a critical node in the industrial data chain. RTD sensors installed on motors, furnaces, reactors, and conveyor systems feed temperature signals directly into the module’s 8 differential input channels. With 16-bit resolution and configurable input ranges supporting PT100, PT1000, Ni120, and custom resistance curves, the module converts raw analog signals into engineering-unit data that flows upstream through the FLEX I/O backplane to the network adapter — whether a 1794-AENT EtherNet/IP adapter, a 1794-ACN15 ControlNet adapter, or a 1794-ADN DeviceNet adapter — and onward to the ControlLogix or CompactLogix PLC controller managing the production line.

This unbroken data path — from sensor to controller to SCADA — is what defines the 1794-IRTB’s value in connected automation. Engineers integrating the module with a 1756-EN2T EtherNet/IP communication module in a ControlLogix chassis gain sub-millisecond update rates and deterministic data delivery, ensuring that temperature excursions trigger alarm responses in the PLC ladder logic before process deviations escalate. The module’s compatibility with Studio 5000 Logix Designer simplifies tag mapping, and its Add-On Profile (AOP) support accelerates commissioning across distributed I/O racks.

Network Communication Table

Connected Automation Data Flow

The 1794-IRTB operates at the heart of a layered industrial network architecture. At the field level, PT100 RTD sensors mounted on process equipment — heat exchangers, extruders, injection molding machines, and HVAC systems — deliver resistance signals to the module’s input terminals. The 1794-IRTB digitizes these signals at 16-bit resolution and places the engineering-unit values onto the FLEX I/O backplane, where the network adapter — typically the 1794-AENT for EtherNet/IP topologies — encapsulates the data into CIP (Common Industrial Protocol) packets for transmission across the plant Ethernet backbone.

At the controller level, a ControlLogix L7x or CompactLogix L3x PLC receives the temperature tags via the 1756-EN2T or 1756-EN3TR EtherNet/IP bridge module. The PLC executes PID control loops, compares live temperature values against setpoints, and issues corrective commands to PowerFlex 525 or PowerFlex 755 variable frequency drives controlling cooling fans, pumps, or heating elements. This closed-loop data flow — sensor → 1794-IRTB → 1794-AENT → EtherNet/IP network → ControlLogix PLC → drive output — is the backbone of real-time process control in smart manufacturing.

For facilities running ControlNet topologies, the 1794-ACN15 adapter connects the FLEX I/O rack to a redundant ControlNet ring, ensuring deterministic scan times even under heavy network load. In legacy DeviceNet environments, the 1794-ADN adapter integrates the 1794-IRTB into existing DeviceNet segments alongside 1734 POINT I/O modules and 1756-DNB scanner cards, preserving investment in established network infrastructure while adding high-resolution temperature monitoring capability.

At the supervisory level, FactoryTalk View SE or third-party SCADA platforms such as Ignition by Inductive Automation subscribe to the temperature tags published by the ControlLogix controller. HMI panels — including PanelView Plus 7 terminals — display real-time trend graphs, alarm banners, and historical logs, giving operators full visibility into thermal conditions across the production floor. Remote diagnostic access via FactoryTalk Remote Access or VPN-secured connections to the plant network allows maintenance engineers to review module diagnostics, channel fault codes, and calibration offsets without physical site visits.

Solving Data Isolation in Industrial Sites

Many industrial facilities face a persistent challenge: temperature and resistance data collected at the field level never reaches the systems that need it most. Legacy analog wiring, proprietary sensor interfaces, and incompatible communication protocols create data silos that prevent operators from correlating thermal events with production outcomes, energy consumption, or equipment health trends.

The 1794-IRTB directly addresses these integration gaps. By converting RTD and resistance signals into digital EtherNet/IP, ControlNet, or DeviceNet data streams, the module eliminates the analog signal degradation and noise susceptibility that plague long cable runs in electrically noisy factory environments. Each of the module’s 8 channels is individually configurable, allowing engineers to mix PT100, PT1000, and Ni120 sensor types within a single module — reducing the number of I/O modules required and simplifying panel wiring.

For facilities undergoing digital transformation, the 1794-IRTB provides a migration path from isolated analog instrumentation to fully networked, SCADA-visible process data. When paired with a 1794-AENT adapter and integrated into a ControlLogix system running FactoryTalk Historian, every temperature reading is automatically time-stamped and archived — enabling predictive maintenance algorithms to detect bearing overheating, motor winding degradation, and heat exchanger fouling weeks before failure occurs.

System expansion is equally straightforward. The FLEX I/O platform supports up to 8 I/O modules per adapter, and multiple 1794-IRTB modules can be deployed across distributed racks connected to the same EtherNet/IP network. As production lines grow, additional temperature monitoring points are added without rewiring the network infrastructure — only new FLEX I/O racks and modules are required. All units supplied by ZYPLC undergo pre-shipment functional testing, verifying channel accuracy, network communication, and backplane integrity before dispatch. Every 1794-IRTB is backed by a 12-month warranty and supported by in-stock inventory for rapid global fulfillment.

Industrial Connectivity FAQ

Q1: What communication protocols does the 1794-IRTB support, and how does it integrate with EtherNet/IP networks?
The 1794-IRTB itself is a backplane module and communicates via the FLEX I/O backplane to a network adapter. When paired with the 1794-AENT adapter, it communicates over EtherNet/IP using the CIP protocol, supporting both explicit messaging for configuration and implicit I/O messaging for real-time data exchange with ControlLogix and CompactLogix controllers. ControlNet and DeviceNet topologies are supported via the 1794-ACN15 and 1794-ADN adapters respectively.

Q2: What is the typical communication latency for temperature data from the 1794-IRTB to the PLC controller?
In EtherNet/IP configurations with a 1794-AENT adapter, the requested packet interval (RPI) is configurable from 1 ms to 3,200 ms. For most temperature monitoring applications, an RPI of 10–100 ms is typical, providing near-real-time data updates to the ControlLogix controller with minimal network overhead. ControlNet configurations offer deterministic scan times independent of network load.

Q3: Can the 1794-IRTB be used alongside other FLEX I/O modules in the same rack, and how many modules are supported?
Yes. The FLEX I/O platform supports up to 8 I/O modules per adapter in a single rack. The 1794-IRTB can be mixed with analog output modules, digital I/O modules, and other specialty modules such as the 1794-IF4I isolated analog input module within the same rack, sharing the backplane and communicating through a single network adapter connection.

Q4: Does ZYPLC provide pre-shipment testing and warranty coverage for the 1794-IRTB?
Yes. Every 1794-IRTB unit supplied by ZYPLC undergoes pre-shipment functional testing covering channel accuracy verification, backplane communication integrity, and network adapter compatibility. All units are covered by a 12-month warranty from the date of shipment. In-stock inventory ensures rapid order fulfillment, and our technical team is available to support integration, configuration, and commissioning queries.
