Allen-Bradley 1794-OA8 Industrial Network Interface for FLEX I/O Systems

Allen-Bradley 1794-OA8 Industrial Network Interface for FLEX I/O Systems: Powering the Smart Factory Data Link

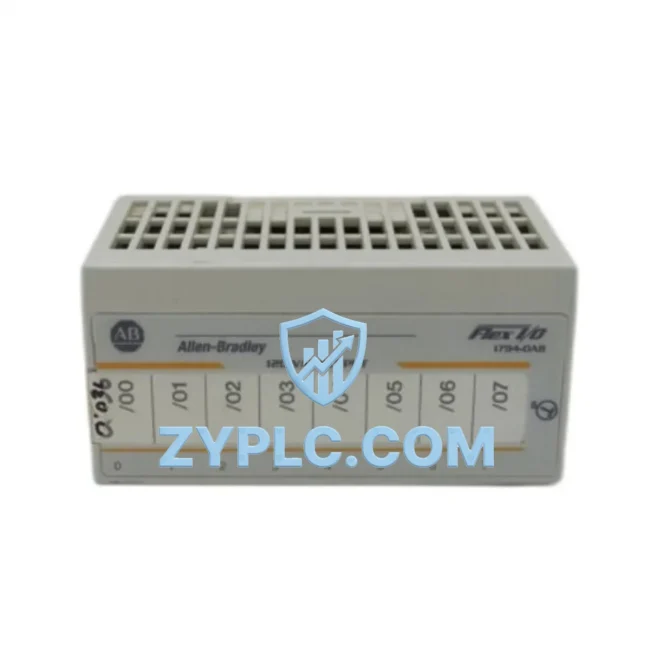

The Allen-Bradley 1794-OA8 is an 8-point 120/240VAC digital output module engineered for the FLEX I/O platform — Rockwell Automation’s modular, distributed I/O architecture designed to bridge field-level devices with upper-layer control and monitoring systems. In modern smart factory environments, where every millisecond of signal latency and every byte of process data matters, the 1794-OA8 serves as a critical node in the industrial data chain, converting controller commands into precise AC output signals that drive actuators, solenoids, motor starters, and other field devices across the production floor.

Deployed across discrete manufacturing, process control, and hybrid automation environments, the 1794-OA8 integrates seamlessly into ControlLogix, CompactLogix, and MicroLogix control architectures via the FLEX I/O adapter backplane. Its role extends beyond simple output switching — it participates in a structured data flow that begins at the sensor level, passes through the PLC controller, and terminates in real-time SCADA dashboards and MES reporting layers. ZYPLC maintains verified stock of the 1794-OA8 with a 12-month warranty and global shipping capability.

Network Communication Table

Connected Automation Data Flow

Understanding the 1794-OA8’s value requires tracing the full industrial data path in which it operates. At the field level, sensors and encoders feed analog and digital signals into remote I/O modules such as the 1794-IB16 (16-point 24VDC digital input module), which captures process states — valve positions, limit switch status, proximity sensor triggers — and forwards this data upstream via the FLEX I/O adapter. The 1794-AENT EtherNet/IP adapter serves as the network gateway for the entire FLEX I/O rack, encapsulating I/O data into EtherNet/IP packets and transmitting them across the plant network to the ControlLogix or CompactLogix controller.

Within the controller — for example, a 1756-L73 ControlLogix CPU — the PLC ladder logic or function block program processes incoming field data, executes control algorithms, and generates output commands. These commands are routed back through the EtherNet/IP network to the 1794-AENT adapter, which distributes them across the FLEX I/O backplane to the 1794-OA8 output module. The 1794-OA8 then switches its 8 AC output channels to energize or de-energize connected field devices — motor starters, solenoid valves, pilot lights, or relay coils — completing the closed-loop control cycle.

Simultaneously, the 1794-OB16 DC digital output module may operate in parallel racks to handle 24VDC output loads, while the 1794-IE8 analog input module captures continuous process variables such as temperature, pressure, and flow rate. These analog values are transmitted to the SCADA layer — typically running on a FactoryTalk View SE server or a third-party SCADA platform — where operators monitor real-time process trends, configure alarm thresholds, and generate production reports.

For drive-level integration, the 1794-OA8 output signals may trigger start/stop commands to PowerFlex 525 or PowerFlex 755 variable frequency drives via hardwired relay outputs or through coordinated PLC logic, enabling precise motor speed and torque control synchronized with the broader production sequence. Edge gateway devices such as the 1783-ETAP EtherNet/IP tap or Stratix managed switches provide the network infrastructure that ensures deterministic, low-latency communication between all nodes in this architecture.

ZYPLC supplies the 1794-OA8 alongside compatible FLEX I/O adapters, input modules, and communication components, enabling customers to source complete rack assemblies from a single verified distributor with guaranteed 12-month warranty coverage.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and enterprise systems operate in disconnected silos, preventing real-time visibility and coordinated control. The 1794-OA8, as part of the FLEX I/O ecosystem, directly addresses this challenge by providing a standardized, protocol-consistent output interface that integrates with EtherNet/IP, DeviceNet, and ControlNet networks through the appropriate FLEX I/O adapter selection.

In legacy installations where older SLC 500 or PLC-5 controllers communicate via DH+ or Remote I/O protocols, the FLEX I/O platform with the 1794-OA8 can be deployed as a migration bridge — maintaining existing field wiring while introducing modern EtherNet/IP connectivity that feeds data to contemporary SCADA and MES platforms. This eliminates the need for complete system overhauls, protecting capital investment while enabling production line transparency.

Remote diagnostic capability is another key advantage. Through EtherNet/IP, the 1794-OA8’s output status, fault conditions, and module health data are continuously available to the ControlLogix controller and, by extension, to FactoryTalk Diagnostics or any SCADA system with OPC-UA or EtherNet/IP driver support. Maintenance engineers can remotely identify blown fuse conditions, output overloads, or communication faults without physically accessing the control panel — reducing mean time to repair (MTTR) and minimizing unplanned downtime.

System scalability is inherent to the FLEX I/O architecture. Additional 1794-series modules — whether digital inputs, analog I/O, or specialty communication modules — can be added to the rack without controller reprogramming, simply by updating the I/O configuration in Studio 5000 Logix Designer. This modularity supports phased production expansions, seasonal line reconfigurations, and the incremental addition of new process monitoring points as smart factory initiatives evolve.

Every 1794-OA8 unit supplied by ZYPLC undergoes pre-shipment functional verification, ensuring output channel integrity and backplane communication compliance before dispatch. Combined with a 12-month warranty and responsive technical support, ZYPLC provides the supply chain reliability that industrial operations demand.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1794-OA8 support?
The 1794-OA8 itself is a digital output module and does not contain an independent communication processor. Its network protocol support — EtherNet/IP, DeviceNet, or ControlNet — is determined by the FLEX I/O adapter (e.g., 1794-AENT for EtherNet/IP, 1794-ADN for DeviceNet) installed in the same rack. This architecture allows the same 1794-OA8 module to operate across different network topologies by simply changing the adapter, providing exceptional protocol flexibility without hardware replacement.

Q2: How does the 1794-OA8 ensure network stability and deterministic output response?
The FLEX I/O backplane uses a high-speed internal bus that decouples field-side output switching from network communication timing. Even during momentary EtherNet/IP network congestion, the adapter maintains the last commanded output state, preventing unintended output de-energization. For applications requiring strict determinism, ControlNet-based FLEX I/O configurations provide scheduled, time-synchronized data transfers that guarantee output update rates independent of network load.

Q3: Can the 1794-OA8 integrate with third-party SCADA and HMI systems?
Yes. Because the 1794-OA8 communicates through standard EtherNet/IP or DeviceNet protocols via its FLEX I/O adapter, it is accessible to any SCADA or HMI platform with compatible driver support — including Wonderware, Ignition, Citect, and iFIX — through OPC-DA or OPC-UA server interfaces. Output status tags, fault bits, and diagnostic data are all available as standard controller tags in Studio 5000, which can be exposed to SCADA clients via RSLinx Classic or FactoryTalk Linx gateway services.

Q4: What does ZYPLC’s 12-month warranty cover for the 1794-OA8, and what is the typical lead time?
ZYPLC’s 12-month warranty covers manufacturing defects, output channel failures, and backplane communication faults under normal operating conditions. Each unit is functionally tested prior to shipment to verify all 8 output channels, optical isolation integrity, and backplane communication compliance. For in-stock units, standard lead time is 3–7 business days for international shipments. Expedited shipping options are available for urgent production requirements. Contact ZYPLC at [email protected] or +86 19859288691 for real-time stock confirmation and volume pricing.
