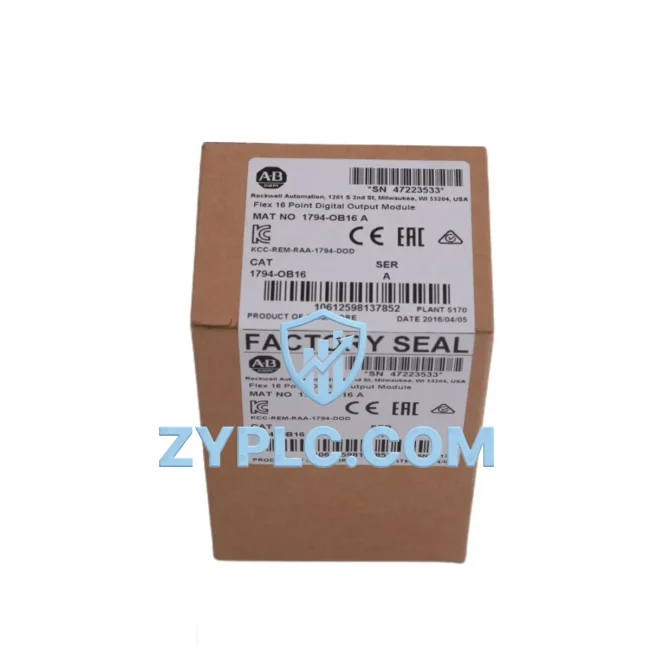

Allen-Bradley 1794-OB16 FLEX I/O Digital Output Module

Allen-Bradley 1794-OB16: Industrial Data Link for FLEX I/O Smart Factory Networks

The Allen-Bradley 1794-OB16 is a 16-point, 24VDC digital output module engineered for the FLEX I/O platform — one of Rockwell Automation’s most widely deployed distributed I/O architectures in industrial automation. Designed to operate at the edge of the control network, the 1794-OB16 serves as a critical output node in the data chain that connects field devices, PLC controllers, remote I/O stations, HMI panels, SCADA systems, and upper-level MES platforms. In smart factory environments where real-time responsiveness and network transparency are non-negotiable, this module delivers the output switching precision and communication reliability that modern production lines demand.

At its core, the 1794-OB16 interfaces directly with the FLEX I/O adapter — such as the 1794-AENT EtherNet/IP adapter or the 1794-ADN DeviceNet adapter — to transmit output command data from the controller to field actuators, solenoid valves, motor starters, and indicator lights. This architecture allows the module to participate in a fully networked I/O topology where every output state is visible, logged, and remotely controllable from the control room or cloud-based monitoring platform.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 1794-OB16 sits at the output end of a multi-layer data flow that begins at the sensor level and terminates at the actuator. Consider a production line where a ControlLogix L73 controller manages a high-speed packaging process. The controller communicates over EtherNet/IP to a 1794-AENT adapter mounted on a FLEX I/O rail. The 1794-OB16 module, seated on that same rail, receives output commands from the controller scan cycle and switches its 16 output channels to drive pneumatic solenoids, conveyor motor starters, and reject gate actuators — all within a single network scan.

Upstream, a 1794-IB16 digital input module on the same FLEX I/O rail feeds real-time sensor states — proximity switches, photoelectric sensors, and limit switches — back to the ControlLogix controller via the same EtherNet/IP backbone. This bidirectional data flow, managed through the 1794-AENT adapter, ensures that the controller always has an accurate picture of both input conditions and output states, enabling closed-loop control with sub-millisecond response times.

For facilities running mixed-protocol environments, the 1794-OB16 can also be deployed behind a 1794-ADN DeviceNet adapter, integrating seamlessly with legacy DeviceNet networks where older MicroLogix 1500 or SLC 5/05 controllers remain in service. This flexibility makes the 1794-OB16 a bridge component in network modernization projects — allowing new FLEX I/O output nodes to coexist with existing DeviceNet or ControlNet infrastructure without requiring a full system overhaul.

At the HMI and SCADA layer, output states from the 1794-OB16 are mapped as tags in FactoryTalk View SE or third-party SCADA platforms such as Ignition by Inductive Automation. Operators can monitor individual output channel status, acknowledge alarms triggered by output faults, and initiate remote output commands from the control room — all without physical access to the field panel. This remote diagnostics capability is especially valuable in hazardous or hard-to-reach installation environments such as chemical processing plants, offshore platforms, and large-scale water treatment facilities.

When integrated with a Stratix 5700 managed industrial Ethernet switch, the EtherNet/IP network carrying 1794-OB16 output data benefits from VLAN segmentation, QoS prioritization, and ring topology redundancy — ensuring that output command latency remains within acceptable bounds even during peak network traffic. For applications requiring deterministic output timing, pairing the 1794-OB16 with a 1794-ACN15 ControlNet adapter provides the scheduled, time-deterministic communication that motion-critical and safety-adjacent processes demand.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of control data across incompatible protocols and isolated network segments. A facility may operate ControlLogix PLCs on EtherNet/IP in one zone, legacy SLC 500 systems on DH+ in another, and third-party variable frequency drives communicating over PROFIBUS in a third area. Without a unified I/O strategy, output commands must be manually relayed or converted through proprietary gateways — introducing latency, error risk, and maintenance overhead.

The 1794-OB16, deployed within the FLEX I/O platform, directly addresses this fragmentation. By selecting the appropriate FLEX I/O adapter — whether EtherNet/IP, DeviceNet, ControlNet, or PROFIBUS — the same 1794-OB16 output module can be integrated into virtually any industrial network architecture. This adapter-agnostic design eliminates the need for protocol-specific output hardware at each network boundary, reducing panel complexity and spare parts inventory.

For production line transparency, the 1794-OB16’s output states are continuously available as real-time data tags in the controller’s I/O tree. SCADA systems polling these tags can generate trend logs, output cycle counts, and fault history reports — transforming raw output switching events into actionable production intelligence. When an output channel fails to energize within the expected time window, the SCADA alarm system can immediately notify maintenance personnel, reducing mean time to repair and preventing unplanned downtime.

Remote diagnostics through FactoryTalk Diagnostics or equivalent tools allow engineers to interrogate the 1794-OB16’s output status, verify channel health, and simulate output commands from remote workstations — eliminating the need for on-site troubleshooting in many fault scenarios. Combined with the module’s 12-month warranty and verified pre-shipment functional testing, the 1794-OB16 represents a low-risk, high-reliability choice for both new installations and replacement procurement in existing FLEX I/O systems.

System expansion is equally straightforward. Additional 1794-OB16 modules can be added to an existing FLEX I/O rail without reconfiguring the network adapter or modifying the controller’s communication parameters. The controller’s I/O configuration is updated in Studio 5000 Logix Designer, the new output module is mapped to available tags, and the expanded output capacity is immediately available to the control program — making the FLEX I/O platform one of the most scalable distributed I/O solutions in the Rockwell Automation ecosystem.

Industrial Connectivity FAQ

Q1: What communication protocols does the 1794-OB16 support?
The 1794-OB16 itself is a pure output module and does not contain an onboard communication interface. Protocol support is determined by the FLEX I/O adapter installed on the same rail. Compatible adapters include the 1794-AENT for EtherNet/IP, the 1794-ADN for DeviceNet, the 1794-ACN15 for ControlNet, and the 1794-APB for PROFIBUS DP — giving the 1794-OB16 broad compatibility across virtually all major industrial network standards.

Q2: Is the 1794-OB16 compatible with ControlLogix and CompactLogix controllers?
Yes. The 1794-OB16 is fully compatible with ControlLogix, CompactLogix, MicroLogix, and SLC 500 series controllers when paired with the appropriate FLEX I/O adapter. Configuration is performed in Studio 5000 Logix Designer (for Logix5000 controllers) or RSLogix 500 (for SLC/MicroLogix platforms), and the module’s I/O data is mapped directly into the controller’s I/O tree for seamless program integration.

Q3: How does the 1794-OB16 support remote diagnostics and SCADA integration?
When connected via a 1794-AENT EtherNet/IP adapter, the 1794-OB16’s output channel states are continuously available as real-time EtherNet/IP tags. SCADA platforms such as FactoryTalk View SE, Ignition, WinCC, and InTouch can subscribe to these tags for live output monitoring, alarm generation, and historical trending. Remote engineers can verify output status, acknowledge faults, and issue output commands without physical access to the field panel.

Q4: What warranty and pre-shipment testing does the 1794-OB16 come with?
Every 1794-OB16 unit supplied by ZYPLC is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional output testing to verify channel switching performance, current sourcing capacity, and backplane communication integrity. In-stock units are available for same-week global shipping, with full traceability documentation provided upon request.
