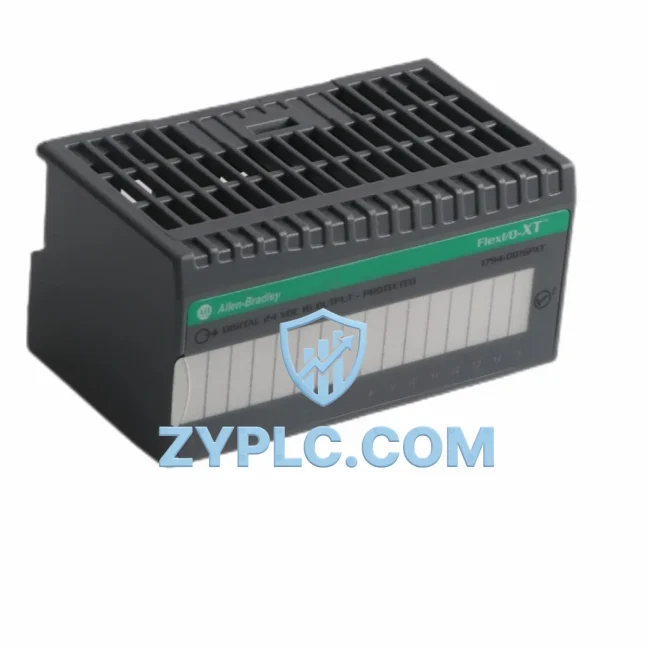

Allen-Bradley 1794-OB16PXT Industrial Network Interface for Flex I/O Systems

Allen-Bradley 1794-OB16PXT: Industrial Data Link for Flex I/O Smart Factory Systems

The Allen-Bradley 1794-OB16PXT is a 16-point, 24VDC sourcing digital output module engineered for the Flex I/O platform — one of Rockwell Automation’s most versatile distributed I/O architectures. Designed to bridge the gap between field-level actuators and upper-layer control systems, the 1794-OB16PXT delivers deterministic signal output, robust network integration, and seamless compatibility with modern industrial communication backbones. Whether deployed on a high-speed assembly line, a process control skid, or a remote field cabinet, this module serves as a critical node in the industrial data chain — converting controller commands into precise, real-time actuation signals across 16 independent output channels.

In today’s smart factory environments, the ability to maintain uninterrupted data flow from the PLC controller down to the field device — and back up to the SCADA or MES layer — is non-negotiable. The 1794-OB16PXT fulfills this role by integrating directly into the Flex I/O backplane, communicating over the 1794 adapter bus with full compatibility with adapter modules such as the 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), and 1794-APB (PROFIBUS DP). This multi-protocol flexibility means the module can operate within virtually any industrial network topology — from legacy fieldbus installations to modern Ethernet-based architectures — without requiring hardware redesign or costly system overhauls.

Network Communication Table

Connected Automation Data Flow

Understanding how the 1794-OB16PXT fits into a complete industrial data flow is essential for system integrators and automation engineers. At the field level, sensors and actuators — including proximity switches, solenoid valves, motor starters, and indicator lights — connect directly to the module’s 16 output terminals via a 1794 terminal base unit (TBU). The module receives output commands from the host PLC controller, such as a ControlLogix L7x or CompactLogix 5380, through the Flex I/O backplane. The backplane communicates with the network adapter — for example, the 1794-AENT EtherNet/IP adapter — which in turn transmits I/O data over a standard Ethernet infrastructure to the controller’s I/O tree.

This data path enables real-time control loop execution at scan rates compatible with high-speed manufacturing processes. When integrated with a FactoryTalk View SE SCADA system or a third-party platform such as Ignition by Inductive Automation, operators gain live visibility into output channel states, fault diagnostics, and energy consumption metrics. The 1794-OB16PXT’s extended temperature rating (-20°C to +60°C) makes it particularly well-suited for outdoor enclosures, cold-storage facilities, and harsh industrial environments where standard modules would fail.

For applications requiring protocol conversion — such as bridging a legacy DeviceNet network to a modern EtherNet/IP backbone — the 1794-OB16PXT can be paired with a 1794-ADN DeviceNet adapter on one segment and a 1794-AENT on another, with a ProSoft Technology MVI56E-MNET gateway or similar device handling the protocol translation at the controller level. Remote I/O expansion is equally straightforward: additional Flex I/O modules, including the 1794-IB16 digital input module, 1794-IE8 analog input module, and 1794-OE4 analog output module, can be added to the same terminal base assembly, extending the I/O count without adding network nodes or increasing scan time overhead.

At the drive and motion layer, the 1794-OB16PXT output signals can trigger enable/disable commands to PowerFlex 525 or PowerFlex 755 variable frequency drives, coordinating motor start sequences, speed references, and fault resets within a unified ControlLogix program. HMI panels — such as the PanelView Plus 7 — display real-time output status, allowing operators to monitor field device states and respond to alarms without leaving the control room. For edge computing and IIoT applications, an Allen-Bradley Stratix 5700 managed Ethernet switch provides the network infrastructure to segment I/O traffic, prioritize real-time data, and connect the Flex I/O network to cloud-based analytics platforms.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate in silos, unable to share process data in real time. The 1794-OB16PXT directly addresses this problem by serving as a standardized, protocol-agnostic output node that can be addressed by any Rockwell Automation controller and monitored by any SCADA or HMI system with EtherNet/IP or OPC-UA connectivity.

In brownfield installations where legacy PROFIBUS DP or DeviceNet networks coexist with newer EtherNet/IP infrastructure, the Flex I/O platform’s adapter modularity allows the 1794-OB16PXT to participate in both network generations simultaneously — eliminating the need for costly rip-and-replace upgrades. System integrators can deploy the module in a mixed-protocol cabinet, using the 1794-APB PROFIBUS adapter for legacy PLC communication while simultaneously feeding data to a FactoryTalk Historian server via EtherNet/IP for long-term trend analysis and OEE reporting.

Remote diagnostics are fully supported through the Flex I/O adapter’s built-in web server (available on the 1794-AENT), which exposes module health, output channel status, and fault codes to any browser-based interface on the plant network. This eliminates the need for on-site technician visits for routine diagnostics, reducing mean time to repair (MTTR) and improving overall equipment effectiveness (OEE). For multi-site operations, the module’s data can be aggregated through a centralized SCADA platform, enabling cross-plant benchmarking and predictive maintenance scheduling based on real output cycle counts and fault history.

Production line transparency is further enhanced by integrating the 1794-OB16PXT into a Manufacturing Execution System (MES) via FactoryTalk Transaction Manager or a similar middleware layer. Output state changes — such as a conveyor start signal or a reject gate activation — are logged with millisecond timestamps, providing a complete audit trail for quality management and regulatory compliance. As production demands grow, the Flex I/O system scales horizontally: additional terminal base assemblies and I/O modules can be added to the network without reconfiguring the existing I/O map, protecting the initial system investment and minimizing engineering change order (ECO) costs.

Industrial Connectivity FAQ

Q1: What communication protocols does the 1794-OB16PXT support, and is it compatible with non-Rockwell controllers?
The 1794-OB16PXT itself is a pure I/O module and does not contain an onboard communication processor. Protocol support is determined by the Flex I/O adapter module installed in the same terminal base assembly. Using the 1794-AENT adapter enables EtherNet/IP communication, compatible with any EtherNet/IP scanner — including Siemens S7 controllers via third-party EtherNet/IP scanner cards, Omron NJ/NX series PLCs, and Mitsubishi iQ-R series with EtherNet/IP option modules. DeviceNet and PROFIBUS DP compatibility is available via the 1794-ADN and 1794-APB adapters respectively.

Q2: How does the 1794-OB16PXT handle network latency and real-time output response?
Output response time is primarily governed by the RPI (Requested Packet Interval) configured in the controller’s I/O tree, typically set between 2ms and 20ms for most applications. The Flex I/O backplane itself introduces negligible latency (sub-millisecond), ensuring that controller output commands are reflected at the field terminals within one RPI cycle. For time-critical applications, the RPI can be reduced to 2ms on EtherNet/IP networks with sufficient bandwidth, providing deterministic output response suitable for high-speed packaging, press control, and robotic cell coordination.

Q3: Can the 1794-OB16PXT be expanded with additional I/O modules without network reconfiguration?
Yes. The Flex I/O platform supports up to 8 I/O modules per terminal base assembly (adapter), and multiple assemblies can be connected on the same network segment. Adding modules — such as the 1794-IB16 input module or 1794-IE8 analog input — requires only a Studio 5000 Logix Designer project update to add the new module to the I/O tree. No physical network reconfiguration, IP address changes, or adapter firmware updates are required, making system expansion straightforward and low-risk.

Q4: What quality assurance and warranty coverage is provided with the 1794-OB16PXT?
Every 1794-OB16PXT unit supplied by ZYPLC undergoes a pre-shipment functional test that verifies all 16 output channels, backplane communication integrity, and power supply rail voltages. Units are shipped with full documentation including test reports and serialized traceability records. A 12-month warranty covers all hardware defects arising from manufacturing or component failure under normal operating conditions. Expedited replacement is available for critical production applications, and our technical team provides remote diagnostic support to minimize downtime in the event of a field issue.
