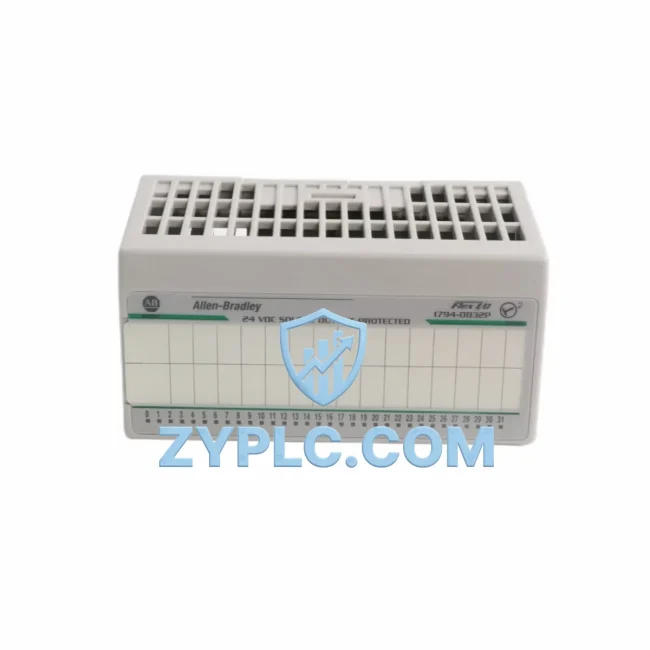

Allen-Bradley 1794-OB32P FLEX I/O 32-Point Digital Output Module

Allen-Bradley 1794-OB32P: Industrial Data Link for FLEX I/O Smart Factory Output Control

In modern smart manufacturing environments, the ability to deliver precise, high-density digital output signals across distributed field devices is fundamental to operational efficiency. The Allen-Bradley 1794-OB32P is a 32-point sourcing digital output module engineered for the FLEX I/O platform — a modular, distributed I/O architecture designed to bridge field-level actuators, solenoids, motor starters, and control valves with upper-level PLC controllers, SCADA systems, and HMI interfaces. With 24VDC output capability and a compact DIN-rail form factor, the 1794-OB32P delivers reliable signal transmission across the full automation data chain, from the plant floor to the enterprise network.

Network Communication Table

Connected Automation Data Flow

The 1794-OB32P operates as a critical output node within a layered industrial automation architecture. At the field level, it directly drives actuators, solenoid valves, indicator lights, and motor starter coils — converting digital commands from the control layer into physical machine actions with millisecond-level response times. These output signals originate from a ControlLogix L7x or CompactLogix L3x series PLC controller, which processes real-time logic and issues output commands via the FLEX I/O backplane.

Communication between the 1794-OB32P and the PLC controller is facilitated through a FLEX I/O network adapter such as the 1794-AENT EtherNet/IP adapter or the 1794-ADN DeviceNet adapter. These adapters translate backplane I/O data into standard industrial Ethernet or DeviceNet packets, enabling seamless integration with plant-wide EtherNet/IP networks. Upstream, a Stratix 5700 managed industrial Ethernet switch aggregates data from multiple FLEX I/O nodes, remote I/O drops, and variable frequency drives such as the PowerFlex 525 or PowerFlex 755, routing all process data to the SCADA layer.

At the supervisory level, FactoryTalk View SE or an Ignition SCADA gateway subscribes to real-time output status tags from the 1794-OB32P, enabling operators to monitor actuator states, detect output faults, and trigger alarm notifications without leaving the control room. When integrated with a 1794-IB32 32-point digital input module on the same FLEX I/O backplane, the system creates a complete closed-loop feedback path — output commands are issued, field device responses are captured as input signals, and the PLC logic validates execution in real time.

For remote diagnostics and predictive maintenance, an edge gateway such as the Cisco IE-4000 or Rockwell’s FactoryTalk Edge Gateway can aggregate I/O health data, output cycle counts, and fault logs from the 1794-OB32P, forwarding structured data to cloud-based MES or ERP platforms. This end-to-end data flow — from field output signal through backplane communication, industrial Ethernet, SCADA visualization, and edge analytics — positions the 1794-OB32P as a foundational component in any IIoT-ready smart factory deployment.

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with fragmented automation architectures where field-level output devices are disconnected from supervisory systems, creating data silos that impede real-time decision-making and remote monitoring. The Allen-Bradley 1794-OB32P directly addresses these challenges through its open, adapter-based communication architecture.

By pairing the 1794-OB32P with a 1794-AENT EtherNet/IP adapter, plant engineers can expose all 32 output channels as standard EtherNet/IP I/O tags, making them immediately accessible to ControlLogix PLCs, FactoryTalk SCADA servers, and third-party HMI systems without custom protocol conversion. This eliminates the traditional barrier between field output control and enterprise data systems, enabling production line transparency where every actuator state, output fault, and cycle count is visible in real time.

For facilities managing mixed-protocol environments — where legacy DeviceNet devices coexist with modern EtherNet/IP infrastructure — the FLEX I/O platform’s adapter flexibility allows the 1794-OB32P to operate on either network, protecting existing investments while enabling phased migration to unified EtherNet/IP architectures. System expansion is equally straightforward: additional 1794-OB32P modules can be added to existing FLEX I/O backplanes without rewiring, and new backplane drops can be distributed across the plant floor to extend output coverage to new production zones.

Every 1794-OB32P unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying output channel integrity, backplane communication, and power consumption within specification. With in-stock inventory available for immediate dispatch and a 12-month warranty covering all hardware defects, procurement teams can confidently source the 1794-OB32P for both planned capital projects and urgent maintenance replacements.

Industrial Connectivity FAQ

Q: What communication protocols does the 1794-OB32P support?
A: The 1794-OB32P itself is a backplane I/O module and communicates via the FLEX I/O backplane. Protocol support — EtherNet/IP or DeviceNet — is determined by the network adapter installed on the same backplane, such as the 1794-AENT for EtherNet/IP or the 1794-ADN for DeviceNet. This makes the module compatible with both modern and legacy industrial network architectures.

Q: Can the 1794-OB32P integrate with SCADA and HMI systems?
A: Yes. When connected via a 1794-AENT EtherNet/IP adapter, all 32 output channels are exposed as standard I/O tags accessible by FactoryTalk View SE, Ignition SCADA, Wonderware, and other OPC-UA or EtherNet/IP-compatible HMI and SCADA platforms. Real-time output status, fault diagnostics, and alarm data are all available at the supervisory level.

Q: How does ZYPLC ensure the 1794-OB32P is functional before shipment?
A: Each unit undergoes pre-shipment functional testing that verifies all 32 output channels, backplane communication integrity, and power rail performance. Units are shipped with original or equivalent packaging and are covered by a 12-month warranty against manufacturing defects and hardware failures.

Q: Can I expand my FLEX I/O system by adding more 1794-OB32P modules?
A: Yes. The FLEX I/O platform supports modular expansion — additional 1794-OB32P modules can be added to existing backplanes up to the adapter’s node capacity, or new backplane drops can be deployed at remote locations across the plant. This scalable architecture allows output capacity to grow with production demands without requiring a complete system redesign.

—
