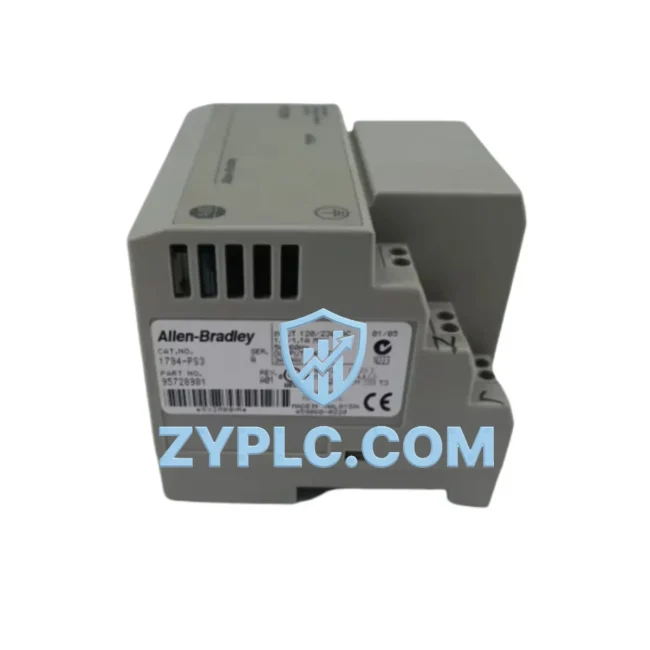

Allen-Bradley 1794-PS3 System-Ready Power Supply for FLEX I/O Architecture
The Allen-Bradley 1794-PS3 is a dedicated power supply module engineered to serve as the electrical backbone of Rockwell Automation’s FLEX I/O distributed control architecture. In modern industrial automation environments, reliable and stable power delivery is not merely a hardware requirement — it is a foundational element of system integrity. The 1794-PS3 fulfills this role by providing regulated 24 VDC bus power to FLEX I/O terminal bases and I/O modules, ensuring that every signal, every scan cycle, and every control decision is supported by a consistent and noise-free power source.
Unlike standalone power supplies, the 1794-PS3 is designed with contextual integration in mind. It is not evaluated in isolation but as a functional node within a layered automation system that spans the control layer, I/O layer, network layer, power layer, human-machine interface layer, and field execution layer. Understanding the 1794-PS3 through this architectural lens reveals why it remains a preferred component in distributed I/O panels across manufacturing, energy, water treatment, and process industries worldwide.
Architecture Specification Table
| Parameter |
Specification |
| System Role |
FLEX I/O Bus Power Supply |
| Output Voltage |
5 VDC (backplane bus) |
| Input Voltage |
24 VDC nominal |
| Compatible Platform |
Allen-Bradley 1794 FLEX I/O Series |
| Mounting |
DIN rail or panel mount via FLEX I/O terminal base |
| Communication Capability |
Passive power node; integrates with 1794-AENT, 1794-ACN15 adapters |
| Operating Temperature |
0°C to 55°C |
| Protection Class |
IP20 |
| Certifications |
UL, CE, cUL |
| Warranty |
12-Month Warranty |
Coordinated Control System Design
The 1794-PS3 operates at the intersection of the power layer and the I/O layer, making it a critical enabler for the entire FLEX I/O node. In a typical distributed control panel, the 1794-PS3 is mounted alongside a network adapter such as the 1794-AENT (EtherNet/IP adapter) or the 1794-ACN15 (ControlNet adapter), which handles all upstream communication with the programmable logic controller. The power supply ensures that these adapters and all downstream I/O modules receive stable bus voltage without interference from field-side transients.
On the I/O side, the 1794-PS3 supports a range of digital and analog modules. Discrete input modules such as the 1794-IB16 (16-point 24 VDC input) and discrete output modules such as the 1794-OB16 (16-point 24 VDC output) rely on the 1794-PS3 for consistent backplane power. Analog modules including the 1794-IF4I (4-channel isolated analog input) and the 1794-IE8 (8-channel analog input) are particularly sensitive to power quality, and the regulated output of the 1794-PS3 directly contributes to measurement accuracy and signal stability.
The terminal base infrastructure — including the 1794-TB3 and 1794-TB3S terminal bases — physically connects the 1794-PS3 to the I/O module stack, forming the mechanical and electrical backbone of the FLEX I/O node. In remote I/O configurations using the 1794-ASB (Remote I/O adapter), the 1794-PS3 continues to serve as the local power source, decoupling the remote node from the main control cabinet’s power bus and improving overall system resilience.
At the controller level, the FLEX I/O system managed by the 1794-PS3-powered nodes is typically supervised by a ControlLogix or CompactLogix processor. Controllers such as the 1756-L72S (ControlLogix Safety Controller) or the 2080-LC50-48QWB (Micro850 controller) communicate with the FLEX I/O network through the appropriate adapter, while the 1794-PS3 ensures that the I/O data exchanged is backed by stable, uninterrupted power. This architecture supports both standard and safety-rated control applications, depending on the I/O modules selected.
Application in Layered Automation Systems
The 1794-PS3 is deployed across a wide range of industrial sectors where distributed I/O architecture is preferred for its flexibility, scalability, and ease of maintenance.
In manufacturing and assembly lines, the 1794-PS3 powers FLEX I/O nodes that monitor conveyor status, actuator feedback, and safety interlocks. Its compact form factor allows integration into space-constrained control panels without compromising power capacity.
In power generation and electrical utilities, the 1794-PS3 supports substation automation panels where reliable I/O power is essential for protection relay feedback, breaker status monitoring, and SCADA integration. The module’s compatibility with EtherNet/IP adapters enables seamless data exchange with supervisory systems.
In petrochemical and refinery applications, the 1794-PS3 is used in hazardous-area-adjacent control panels where FLEX I/O nodes handle pressure, temperature, and flow signal acquisition. Its stable output voltage reduces the risk of spurious trips caused by power fluctuations.
In water and wastewater treatment facilities, the 1794-PS3 powers distributed I/O nodes across pump stations, filtration systems, and chemical dosing panels. Its DIN rail mounting and standard terminal base compatibility simplify installation and reduce commissioning time.
In mining and metallurgical operations, the 1794-PS3 supports I/O nodes in crusher control panels, conveyor drive systems, and ore processing lines, where environmental conditions demand robust and reliable power delivery.
Across all these applications, the 1794-PS3 contributes to long-term maintenance efficiency. Its modular design allows field replacement without disturbing adjacent I/O modules, and its compatibility with the broader 1794 FLEX I/O ecosystem ensures that spare parts and replacement units remain readily available. Combined with a 12-Month Warranty, the 1794-PS3 represents a low-risk, high-reliability investment for any distributed control architecture.
Architecture Engineering FAQ
Q1: Is the 1794-PS3 compatible with all 1794 FLEX I/O terminal bases and adapters?
The 1794-PS3 is designed for use within the 1794 FLEX I/O platform and is compatible with standard FLEX I/O terminal bases including the 1794-TB3 and 1794-TB3S. It provides backplane bus power to all standard 1794-series I/O modules when used with compatible network adapters such as the 1794-AENT or 1794-ACN15. Always verify the specific revision and firmware compatibility with your system configuration before installation.
Q2: Can the 1794-PS3 support redundant power configurations in critical control systems?
The 1794-PS3 itself is a single-supply module; however, system-level redundancy can be achieved by designing separate FLEX I/O nodes with independent power supplies for critical I/O groups. In high-availability architectures, engineers typically segment I/O nodes so that a single power supply failure does not affect the entire I/O network. Consult your system architecture documentation and Rockwell Automation guidelines for redundancy design best practices.
Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. It provides procurement teams and maintenance engineers with a defined support window for budgeting spare parts and scheduling preventive maintenance. Units supplied through ZYPLC are tested prior to shipment and documented for traceability, ensuring that warranty claims can be processed efficiently and that replacement units are available from stock to minimize system downtime.
