Allen-Bradley 1794-TB3S Industrial Network Interface for FLEX I/O Systems

Allen-Bradley 1794-TB3S: Industrial Data Link for FLEX I/O Network Systems

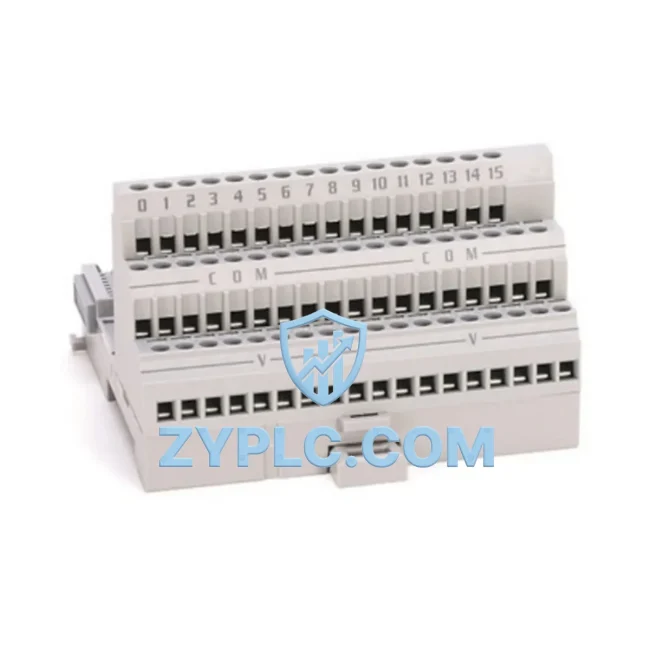

The Allen-Bradley 1794-TB3S is a high-integrity Terminal Base Unit engineered for the FLEX I/O platform — one of Rockwell Automation’s most widely deployed distributed I/O architectures in smart manufacturing environments. Designed to serve as the physical and electrical backbone of modular I/O assemblies, the 1794-TB3S enables seamless signal acquisition, protocol-level data exchange, and real-time communication between field devices and upper-level control systems. Whether deployed in a new greenfield automation project or integrated into an existing ControlLogix or CompactLogix network, this terminal base delivers the structural reliability and connectivity density that modern industrial data chains demand.

In today’s smart factory, data flows continuously from sensors and actuators at the field level, through distributed I/O nodes, across industrial Ethernet backbones, and into SCADA and MES platforms. The 1794-TB3S sits at a critical junction in this chain — providing the physical mounting and wiring interface for FLEX I/O adapter and I/O modules such as the 1794-AENT EtherNet/IP adapter, 1794-IB16 digital input module, and 1794-OB16 digital output module. By standardizing the terminal base across multiple I/O module types, the 1794-TB3S dramatically reduces wiring complexity and accelerates commissioning time on the plant floor.

Network Communication Table

Connected Automation Data Flow

Understanding the 1794-TB3S requires viewing it within the full automation data chain. At the field level, sensors — including photoelectric sensors, proximity switches, and pressure transmitters — connect directly to the screw terminals of the 1794-TB3S, feeding raw signals into FLEX I/O modules such as the 1794-IB16 (16-point digital input) or 1794-IE8 (8-channel analog input). These modules snap onto the terminal base and communicate over the FLEX I/O backplane to the network adapter.

The 1794-AENT EtherNet/IP adapter, mounted at the head of the FLEX I/O assembly, bridges the backplane data to the plant’s industrial Ethernet network. From there, a ControlLogix L7x controller — or a CompactLogix 5380 in smaller cell applications — receives real-time I/O data via EtherNet/IP cyclic connections. The controller executes ladder logic or function block programs, processes the data, and issues output commands back through the same network path to actuators wired at the 1794-TB3S terminals.

For legacy installations using DeviceNet or ControlNet, the 1794-ADN DeviceNet adapter or 1794-ACN15 ControlNet adapter can replace the EtherNet/IP head, allowing the same 1794-TB3S terminal base infrastructure to remain in place while the communication layer is upgraded. This backward compatibility is a key reason why the FLEX I/O platform — and the 1794-TB3S in particular — remains a preferred choice for phased modernization projects.

At the supervisory level, SCADA platforms such as Rockwell’s FactoryTalk View SE or third-party systems using OPC-UA or Modbus TCP gateways collect aggregated I/O data from the ControlLogix backplane. HMI panels — including PanelView Plus 7 terminals — display real-time process values, alarm states, and trend data sourced ultimately from field devices wired through the 1794-TB3S. Edge gateways deployed at the network boundary can further push this data to cloud-based MES or IIoT analytics platforms, completing the digital thread from sensor to enterprise.

Variable frequency drives (VFDs) and servo drives connected via DeviceNet or EtherNet/IP also participate in this data ecosystem. Drive status, speed references, fault codes, and energy consumption data flow through the same network infrastructure that the 1794-TB3S supports at the I/O layer, enabling unified diagnostics and predictive maintenance across the entire drive and I/O network. Industrial power supplies such as the 1606-XLP series provide stable 24 VDC rail power to the FLEX I/O assembly, ensuring uninterrupted backplane communication even under fluctuating load conditions.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate in silos, unable to share process data in real time. The 1794-TB3S, as part of the FLEX I/O ecosystem, directly addresses this problem by providing a standardized, protocol-agnostic wiring interface that supports multiple communication adapters without rewiring the field terminals.

Sites running mixed protocols — for example, a legacy DeviceNet segment alongside a newer EtherNet/IP backbone — can use the 1794-TB3S terminal base with different adapter modules to bridge these networks without replacing field wiring. This dramatically reduces the cost and downtime associated with protocol migration projects, enabling true protocol conversion at the I/O layer without disrupting production.

Remote monitoring and diagnostics are equally critical in distributed manufacturing environments. With the 1794-AENT adapter connected to a ControlLogix system, maintenance engineers can remotely query I/O module status, check terminal wiring faults, and review historical alarm data through FactoryTalk Diagnostics or Studio 5000 Logix Designer — all without physically accessing the panel. This capability reduces mean time to repair (MTTR) and supports predictive maintenance strategies that keep production lines running at peak efficiency.

Production line transparency is another key benefit. By connecting every field device through a structured FLEX I/O network built on 1794-TB3S terminal bases, plant managers gain full visibility into machine states, cycle counts, downtime events, and quality metrics — data that feeds directly into OEE dashboards and continuous improvement programs. System expansion is equally straightforward: additional 1794-TB3S units and I/O modules can be added to the DIN rail assembly without disrupting existing wiring or network configuration, supporting incremental capacity growth aligned with production demands.

Every 1794-TB3S unit shipped from our inventory undergoes pre-shipment functional testing and is backed by a 12-month warranty. We maintain ready stock to support urgent project timelines, with fast global logistics to minimize lead times for MRO and capital project procurement alike.

Industrial Connectivity FAQ

Q1: What communication protocols does the 1794-TB3S support?
The 1794-TB3S is a terminal base unit and is protocol-independent at the wiring level. Protocol support is determined by the FLEX I/O network adapter mounted to the assembly. Compatible adapters support EtherNet/IP (1794-AENT), DeviceNet (1794-ADN), ControlNet (1794-ACN15), and Remote I/O, making the 1794-TB3S compatible with virtually all Rockwell Automation control platforms including ControlLogix and CompactLogix.

Q2: Is the 1794-TB3S compatible with both new and legacy PLC systems?
Yes. The FLEX I/O platform is designed for broad compatibility across Rockwell Automation’s controller families. The 1794-TB3S terminal base supports the full range of 1794-series I/O modules and adapters, allowing integration with ControlLogix L6x/L7x/L8x, CompactLogix 5370/5380, and legacy SLC 500 or MicroLogix systems via appropriate adapter selection. This makes it an ideal choice for both new installations and phased modernization projects.

Q3: How does the 1794-TB3S contribute to network stability and reduced communication latency?
The 1794-TB3S provides a robust, vibration-resistant screw-terminal interface that minimizes signal noise and connection failures at the field wiring level — a common source of intermittent communication faults in industrial networks. Combined with the deterministic EtherNet/IP cyclic communication of the 1794-AENT adapter, the overall FLEX I/O assembly delivers consistent, low-latency I/O updates to the controller, supporting scan times suitable for high-speed process control and motion coordination applications.

Q4: What warranty and testing standards apply to this unit?
All 1794-TB3S units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit is functionally tested prior to dispatch to verify terminal integrity, module seating, and backplane connectivity. We supply both new and certified refurbished units, clearly identified at the time of quotation, ensuring full transparency for your procurement and quality assurance processes.
