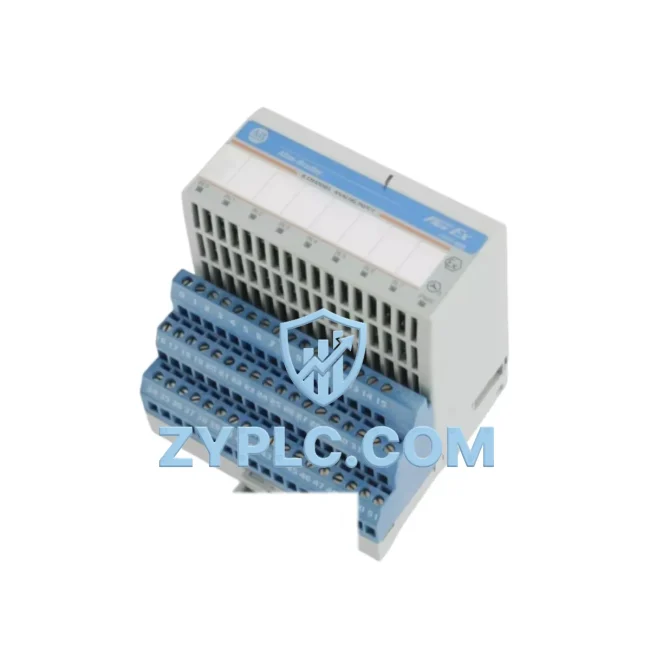

Allen-Bradley 1797-IE8H System-Ready Analog Input for FLEX I/O Architecture

Allen-Bradley 1797-IE8H System-Ready Analog Input for FLEX I/O Architecture

The Allen-Bradley 1797-IE8H is an 8-channel analog input module engineered for seamless integration within the FLEX I/O distributed control architecture. Rather than functioning as a standalone component, the 1797-IE8H is designed to operate as a precision signal acquisition node within a layered automation system — collecting, conditioning, and transmitting process variable data across the control hierarchy with high fidelity and deterministic timing. In modern industrial environments where system consistency, scalability, and long-term maintainability are paramount, the 1797-IE8H delivers the architectural coherence that engineers and system integrators demand.

Within a complete FLEX I/O control system, the 1797-IE8H occupies the I/O layer, interfacing directly with field instruments such as pressure transmitters, temperature sensors, flow meters, and level transducers. Its 8 differential analog input channels accept standard 4–20 mA and 0–10 VDC signals, providing the resolution and accuracy required for closed-loop process control. The module communicates upstream to the control layer via the FLEX I/O adapter — such as the 1794-AENT EtherNet/IP adapter or the 1794-ADN DeviceNet adapter — which bridges the I/O layer to the CPU platform, typically a ControlLogix or CompactLogix processor. This layered signal flow ensures that process data is delivered to the controller with minimal latency, supporting real-time PID regulation, alarm management, and historian logging.

System architects integrating the 1797-IE8H will find it fully compatible with the broader 1797 FLEX I/O module family. It mounts on the 1797-TB3 or 1797-TB3S terminal base, which provides both the electrical connection to field wiring and the mechanical backplane interface to adjacent modules. Power distribution within the FLEX I/O rack is managed by the 1794-PS13 or 1794-PS1 power supply, ensuring stable 24 VDC bus voltage across all installed modules. For applications requiring redundant power architectures, the FLEX I/O platform supports dual-supply configurations that eliminate single points of failure in the power layer — a critical consideration for continuous process industries.

At the network layer, the 1797-IE8H participates in EtherNet/IP, DeviceNet, ControlNet, or PROFIBUS DP topologies depending on the adapter selected. This protocol flexibility allows the module to be deployed in both legacy system expansions and greenfield installations without requiring changes to the field wiring or module configuration. In EtherNet/IP-based architectures, the 1794-AENT adapter enables implicit messaging with the ControlLogix 1756-L8x or CompactLogix 5380 processors, delivering cyclic I/O data at configurable RPI rates as low as 1 ms. This level of communication determinism is essential in high-speed process control applications where analog feedback loops must respond within tight time windows.

For human-machine interface integration, analog data acquired by the 1797-IE8H is made available to PanelView Plus 7 or PanelView 800 HMI terminals via the FactoryTalk View SE or ME runtime environment. Operators can monitor real-time process values, configure alarm thresholds, and trend historical data directly from the HMI, with the 1797-IE8H serving as the foundational data source for all analog process visualization. At the execution layer, the module’s output data drives actuators, variable frequency drives, and control valves through the controller’s analog output modules, completing the closed-loop control architecture.

The 1797-IE8H also supports channel-level diagnostics, providing fault detection for open-circuit, over-range, and under-range conditions. These diagnostics are surfaced through the controller’s I/O tree in Studio 5000 Logix Designer, enabling maintenance engineers to identify field instrument failures without physical inspection of the panel. This capability significantly reduces mean time to repair (MTTR) in large distributed control systems where hundreds of analog channels may be monitored simultaneously.

All units supplied by ZYPLC are covered by a 12-Month Warranty, ensuring that every 1797-IE8H module meets Allen-Bradley’s original performance specifications. Our inventory is sourced from verified supply chains, and each unit undergoes functional verification prior to shipment. With global logistics support and responsive technical assistance, ZYPLC provides the supply chain reliability that industrial projects require — from initial commissioning through long-term maintenance cycles.

Architecture Specification Table

Coordinated Control System Design

The 1797-IE8H achieves its full potential when deployed within a coordinated FLEX I/O system architecture. A typical installation begins with the 1794-AENT EtherNet/IP adapter, which serves as the communication gateway between the FLEX I/O rack and the plant-level EtherNet/IP network. The adapter connects upstream to a ControlLogix 1756-L83E processor housed in a 1756-A10 chassis, where the Logix 5000 control program executes the analog scaling, PID algorithms, and alarm logic associated with the 1797-IE8H channel data.

Within the same FLEX I/O rack, the 1797-IE8H typically operates alongside the 1797-OE8 analog output module, which closes the control loop by driving 4–20 mA signals to control valves and actuators based on the controller’s calculated output. Digital I/O is handled by the 1794-IB16 16-channel digital input module and the 1794-OB16 digital output module, which manage discrete field signals such as limit switches, solenoid valves, and motor starters within the same distributed I/O node.

For applications requiring intrinsic safety or HART communication, the 1797-IE8H can be paired with HART-capable signal conditioners and barriers mounted on the field wiring side, while the module itself interfaces with the backplane in the standard manner. Power integrity across the rack is maintained by the 1794-PS13 24 VDC power supply, which provides regulated bus power to all installed modules. In redundant power configurations, a secondary 1794-PS13 unit with automatic switchover ensures uninterrupted operation during power supply maintenance or failure events.

At the network infrastructure layer, a Stratix 5700 managed Ethernet switch provides the ring topology backbone for EtherNet/IP Device Level Ring (DLR) configurations, enabling the FLEX I/O node to maintain communication with the controller even in the event of a single cable fault. This network redundancy complements the module-level diagnostics of the 1797-IE8H to deliver a highly available analog acquisition architecture. The complete system is monitored and configured through Studio 5000 Logix Designer, which provides a unified engineering environment for I/O configuration, tag mapping, and online diagnostics across all FLEX I/O modules in the system.

Application in Layered Automation Systems

The 1797-IE8H is deployed across a wide range of industrial sectors where distributed analog signal acquisition is a core requirement of the control architecture.

In oil and gas and petrochemical processing, the module acquires pressure, temperature, and flow signals from field transmitters distributed across process units. Its compatibility with EtherNet/IP and ControlNet adapters allows it to be integrated into both modern DCS-replacement architectures and legacy system expansions without disrupting existing field wiring infrastructure. The 12-Month Warranty and verified supply chain support the long maintenance intervals typical of continuous process facilities.

In power generation and electrical utilities, the 1797-IE8H monitors generator output parameters, transformer temperatures, and bus voltage levels within SCADA-integrated control systems. Its deterministic communication with ControlLogix processors ensures that analog data is available to the SCADA historian and alarm management system within the required scan cycle.

In water and wastewater treatment, the module acquires signals from pH sensors, dissolved oxygen probes, turbidity meters, and flow transmitters distributed across treatment stages. The FLEX I/O platform’s modular architecture allows treatment plant operators to expand analog acquisition capacity by adding additional 1797-IE8H modules to existing racks without modifying the control program structure.

In automotive and discrete manufacturing, the 1797-IE8H supports quality control applications by acquiring analog signals from force sensors, torque transducers, and vision system analog outputs. Its integration with ControlLogix processors and FactoryTalk View HMI platforms enables real-time SPC monitoring and process trend analysis at the machine level.

In mining and metals processing, the module operates in high-vibration, high-temperature panel environments, acquiring signals from conveyor load cells, crusher pressure sensors, and flotation cell level transmitters. Its robust operating temperature range and IP20 panel-mount design make it suitable for installation in field control panels located close to process equipment.

Architecture Engineering FAQ

Q1: Is the 1797-IE8H compatible with both ControlLogix and CompactLogix control platforms?
Yes. The 1797-IE8H communicates via the FLEX I/O backplane to the installed adapter module, which determines the network protocol. Using a 1794-AENT EtherNet/IP adapter, the module is fully compatible with ControlLogix 1756-series and CompactLogix 5380-series processors via implicit EtherNet/IP messaging. The adapter handles all protocol translation, so the 1797-IE8H itself is platform-agnostic within the FLEX I/O ecosystem. Studio 5000 Logix Designer provides a unified I/O configuration interface for both controller families.

Q2: Can the 1797-IE8H be added to an existing FLEX I/O rack without system downtime?
Module addition to a FLEX I/O rack typically requires the rack to be de-energized for safe installation of the terminal base and module. However, the FLEX I/O platform supports online I/O configuration changes in Studio 5000, meaning that once the module is physically installed and powered, it can be added to the controller’s I/O tree and configured without requiring a controller restart or program download in most ControlLogix applications. This capability significantly reduces commissioning time and minimizes production interruption during system expansion projects.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance requirements?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions for a period of 12 months from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement units from verified inventory to minimize system downtime. For long-term maintenance planning, ZYPLC maintains stock of the 1797-IE8H and compatible FLEX I/O components — including terminal bases, adapters, and power supplies — to support both scheduled maintenance replacements and emergency spare requirements. Our technical team is available to assist with compatibility verification, configuration guidance, and system integration support throughout the product lifecycle.
