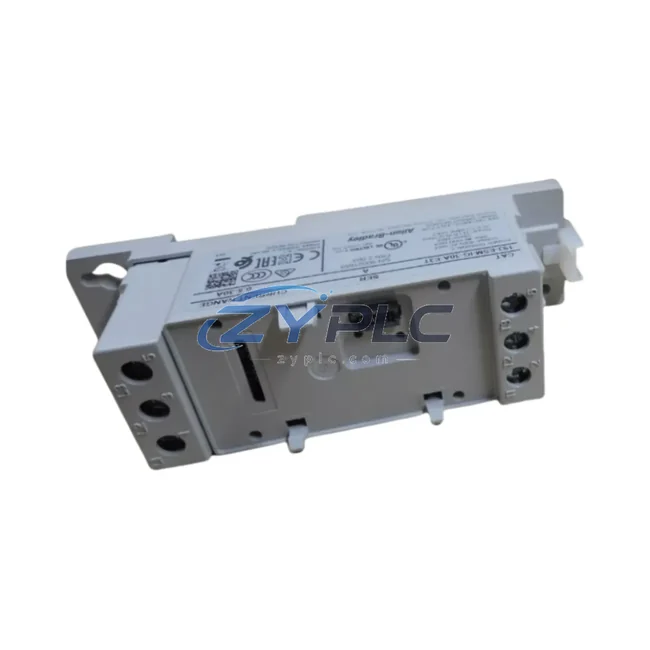

Allen-Bradley 193-ESM-IG-30A-E3T Soft Starter for E3 Plus

Allen-Bradley 193-ESM-IG-30A-E3T Soft Starter for E3 Plus

The Allen-Bradley 193-ESM-IG-30A-E3T is a dedicated electronic soft starter module engineered for seamless integration within the Rockwell Automation E3 Plus overload relay platform. Rated at 30A and designed for direct mounting to the E3 Plus relay body, this module eliminates the need for external wiring between the overload relay and the soft starter function, reducing panel footprint and simplifying commissioning in demanding industrial environments. Its architecture-first design philosophy makes it a critical component in layered automation systems where motor starting performance, system consistency, and long-term maintainability are non-negotiable requirements.

In modern industrial control architectures, the soft starter module does not operate in isolation. It functions as a coordinated element within a broader control hierarchy that spans from the field device level through the I/O layer, the control layer, the network layer, and up to the supervisory and human-machine interface level. The 193-ESM-IG-30A-E3T is purpose-built to fulfill this role within Allen-Bradley and Rockwell Automation system environments, providing deterministic motor ramp-up behavior, integrated overload protection, and DeviceNet or direct hardwired communication capability depending on the associated E3 Plus relay configuration.

From a system architecture standpoint, the 193-ESM-IG-30A-E3T contributes directly to control system consistency by standardizing motor starting behavior across multiple drive points within the same installation. When deployed alongside a CompactLogix or ControlLogix programmable automation controller, the module’s behavior can be coordinated through the controller’s I/O tree, enabling centralized parameter management and fault diagnostics without requiring technicians to access individual motor control centers. This integration reduces mean time to repair and supports predictive maintenance strategies that are increasingly required in process-critical industries.

Product Specification Table

System Compatibility Notes

The 193-ESM-IG-30A-E3T achieves its full value when considered as part of a coordinated motor control architecture rather than a standalone component. In a typical Allen-Bradley system deployment, the module mounts directly to the 193-EC2 E3 Plus Electronic Overload Relay, forming a unified soft starter and protection assembly. This combined unit is then wired into a motor control center or control panel alongside a 100-C contactor from the Bulletin 100 series, which handles the main power switching function under command from the soft starter logic.

At the control layer, a CompactLogix 5380 controller or a ControlLogix 5580 PAC manages the sequencing logic for motor start and stop commands, integrating the soft starter’s status feedback into the overall machine or process control program. The controller communicates with field devices through a 1756-DNB DeviceNet Scanner module installed in the ControlLogix chassis, enabling the E3 Plus relay to report fault codes, current readings, and operational status directly to the controller’s I/O table without additional hardwired signal cables.

Power distribution to the motor control section is typically handled through a 1606-XLP power supply or equivalent 24V DC regulated supply, which feeds the control circuit of the E3 Plus relay and the soft starter module’s logic board. In redundant architecture designs, a secondary power supply with automatic switchover ensures that the motor protection and soft starting functions remain available even during a primary supply failure — a critical requirement in continuous process industries such as water treatment, chemical processing, and power generation.

For human-machine interface integration, a PanelView Plus 7 terminal connected via EtherNet/IP to the CompactLogix controller provides operators with real-time motor status, soft start ramp progress, and fault history. This HMI layer eliminates the need for dedicated motor control panel instruments and consolidates diagnostics into the plant-wide SCADA or DCS visualization environment. In larger installations, a Stratix 5700 managed Ethernet switch provides the network backbone that connects the controller, HMI, and remote I/O nodes into a single coherent EtherNet/IP ring topology, supporting Device Level Ring (DLR) redundancy for uninterrupted communication.

Terminal block wiring between the 193-ESM-IG-30A-E3T assembly and the control panel is typically organized using 1492-W terminal blocks from the Allen-Bradley Bulletin 1492 series, which provide a standardized, color-coded wiring interface that simplifies both initial installation and subsequent maintenance activities. In applications requiring motor drive coordination — for example, where a soft starter is used for initial ramp-up before transitioning to variable frequency drive control — the 193-ESM-IG-30A-E3T can be sequenced alongside a PowerFlex 525 AC drive through the controller logic, with the contactor switching between the two power paths under program control.

Industrial Application Notes

The 193-ESM-IG-30A-E3T is deployed across a wide range of industrial sectors where controlled motor starting is essential to process integrity and equipment longevity. In water and wastewater treatment facilities, soft starting of pump motors prevents hydraulic shock in pipeline systems, reducing mechanical stress on valves, flanges, and pump impellers. The module’s integrated overload protection ensures that pump motors are automatically disconnected in the event of a locked rotor or sustained overload condition, protecting both the motor and the downstream process equipment.

In power generation and electrical utility applications, the 193-ESM-IG-30A-E3T supports the controlled starting of auxiliary motors such as cooling fans, lube oil pumps, and fuel handling conveyors. The ability to limit inrush current during motor starting is particularly valuable in facilities where generator capacity is limited or where multiple large motors must be started in sequence to avoid voltage sag on the distribution bus.

In mining and mineral processing environments, the module’s robust design and compatibility with the E3 Plus relay’s ground fault detection capability make it suitable for use in areas where cable insulation degradation is a known risk. The soft starting function also reduces mechanical shock on conveyor drive trains, extending the service life of couplings, gearboxes, and belt systems that would otherwise experience repeated high-torque starting events.

For petrochemical and oil and gas process plants, the 193-ESM-IG-30A-E3T supports the controlled starting of compressor motors, agitator drives, and cooling tower fans within hazardous area motor control centers. Its integration with the E3 Plus relay platform allows plant engineers to configure motor protection parameters — including overload class, phase imbalance thresholds, and ground fault sensitivity — through a single device, reducing the number of discrete protection relays required in the MCC and simplifying the overall panel design.

In packaging and material handling production lines, the soft starter module enables smooth acceleration of conveyor motors, preventing product spillage and reducing wear on belt tracking components. The module’s compatibility with Allen-Bradley’s broader control ecosystem means that line speed changes, start/stop sequencing, and fault recovery can all be managed from the same ControlLogix or CompactLogix program that governs the rest of the production line, eliminating the need for separate motor control programming environments.

Product Compatibility FAQ

Q1: Is the 193-ESM-IG-30A-E3T compatible with all E3 Plus relay variants, and what controller platforms support its DeviceNet integration?
The 193-ESM-IG-30A-E3T is designed for direct mounting to the Allen-Bradley 193-EC series E3 Plus Electronic Overload Relay body. It is compatible with E3 Plus relay variants that support the ESM (Electronic Soft Starter Module) accessory slot. For DeviceNet network integration, the E3 Plus relay requires a DeviceNet communication option, and the host controller must include a DeviceNet scanner module such as the 1756-DNB (ControlLogix) or 1769-SDN (CompactLogix). For hardwired control architectures without a fieldbus network, the module operates through direct I/O wiring to the relay’s control terminals without requiring any network scanner hardware.

Q2: What are the key installation and commissioning considerations when integrating the 193-ESM-IG-30A-E3T into an existing motor control center?
During installation, the 193-ESM-IG-30A-E3T must be mounted to the E3 Plus relay body before the relay is energized, as the module’s internal logic initializes during the relay’s power-up sequence. Commissioning engineers should verify that the motor full-load ampere (FLA) setting on the E3 Plus relay is correctly configured for the connected motor, as this value governs both the overload protection threshold and the soft starter’s current limiting behavior. Ramp time parameters — typically adjustable from 1 to 30 seconds depending on the relay firmware version — should be set based on the motor’s load inertia and the process requirements. It is recommended to perform a no-load test start before connecting the motor to its mechanical load, allowing verification of the ramp profile and fault detection settings without risk to the driven equipment.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for the 193-ESM-IG-30A-E3T?
The warranty terms confirmed during quotation provided by ZYPLC covers functional defects in the 193-ESM-IG-30A-E3T under normal operating conditions, including failures attributable to manufacturing defects or component quality issues identified within the warranty period. The warranty does not cover damage resulting from incorrect installation, operation outside the specified electrical ratings, or physical damage caused by external factors. For long-term maintenance planning, ZYPLC supports RFQ sourcing for the 193-ESM-IG-30A-E3T and associated E3 Plus relay components to support customers with multi-year maintenance contracts and planned outage schedules. Customers requiring guaranteed spare parts availability for critical process applications are encouraged to contact ZYPLC directly to discuss consignment stock arrangements or priority supply agreements.
