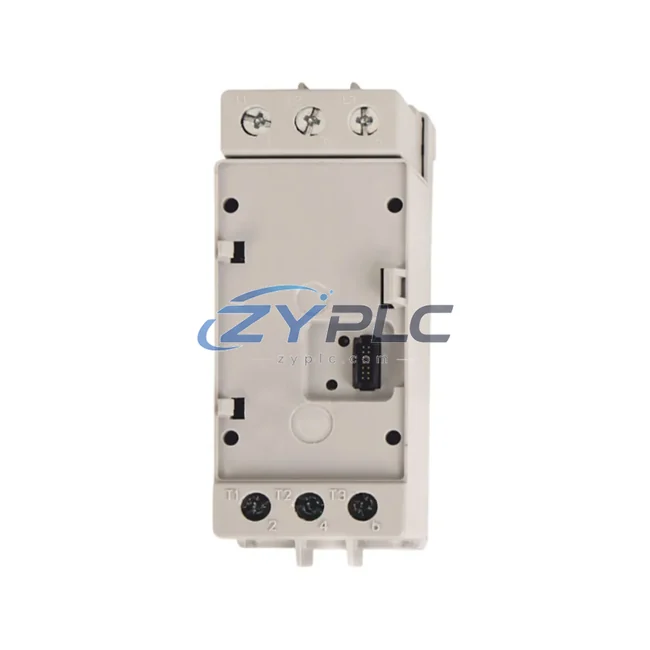

Allen-Bradley 193-ESM-IG-30A-T Sensing Module for E3 Plus

Allen-Bradley 193-ESM-IG-30A-T Sensing Module for E3 Plus

The Allen-Bradley 193-ESM-IG-30A-T is a precision-engineered Electronic Sensing Module designed to integrate seamlessly within the E3 Plus overload relay platform and the broader Rockwell Automation control system architecture. Rather than functioning as a standalone component, this module occupies a critical position within the layered automation hierarchy — bridging the motor protection layer with the control and communication layers to deliver real-time current sensing, diagnostics, and system-level coordination across industrial environments.

In modern industrial control architectures, the integrity of the motor protection layer directly influences the reliability of the entire system. The 193-ESM-IG-30A-T is engineered to provide accurate current measurement up to 30A, enabling the E3 Plus relay to execute precise overload, phase-loss, and ground-fault protection decisions. When paired with a ControlLogix or CompactLogix programmable automation controller (PAC), this sensing module contributes to a closed-loop protection strategy that reduces unplanned downtime and supports predictive maintenance workflows.

Product Specification Table

System Compatibility Notes

The 193-ESM-IG-30A-T achieves its full value when deployed within a coordinated Rockwell Automation control system. At the control layer, a ControlLogix L7x or CompactLogix L3x PAC serves as the system brain, executing ladder logic and function block programs that respond to motor protection events reported through the E3 Plus relay. The sensing module feeds real-time current data upward through the relay’s DeviceNet interface, allowing the controller to make informed decisions about motor restart, fault logging, and alarm escalation.

At the network layer, a 1756-DNB DeviceNet Scanner or 1769-SDN CompactLogix DeviceNet Scanner bridges the motor protection devices to the controller backplane, ensuring that current readings and fault status from the 193-ESM-IG-30A-T are available to the control program with minimal latency. For facilities transitioning to EtherNet/IP, the 193-DNENCAT DeviceNet-to-EtherNet/IP Linking Device enables transparent integration without replacing existing motor protection hardware.

At the I/O and power layer, the E3 Plus relay hosting the 193-ESM-IG-30A-T is typically mounted within a Motor Control Center (MCC) bucket alongside a 100-C or 100-D Allen-Bradley Contactor, forming a complete motor starter assembly. The 1492-SP Series Supplementary Protector or 140M Motor Protection Circuit Breaker provides upstream short-circuit protection, completing the motor branch circuit in compliance with IEC 60947 and NFPA 79 standards.

For human-machine interface visibility, a PanelView Plus 7 or PanelView 800 HMI can display motor current, fault history, and protection status sourced from the 193-ESM-IG-30A-T via the controller. This enables operators to monitor motor health in real time without accessing the control panel directly, improving both safety and operational efficiency.

In redundant architecture designs, the sensing module supports system-level redundancy strategies when the E3 Plus relay is configured with a 193-DNENCAT or 193-ECM-ETR communication module, allowing fault data to be mirrored across redundant network paths. Combined with a 1756-RM2 ControlLogix Redundancy Module at the controller level, this creates a fault-tolerant motor protection architecture suitable for critical process applications.

Industrial Application Notes

Manufacturing & Packaging Lines: In high-throughput packaging and assembly lines, the 193-ESM-IG-30A-T protects conveyor motors, pump drives, and actuator motors from thermal overload and phase imbalance. Its integration with the DeviceNet network allows the line PLC to automatically isolate a faulted motor and reroute production flow, minimizing line stoppages and protecting downstream equipment.

Power Generation & Utilities: In power plant auxiliary systems — including cooling water pumps, forced draft fans, and fuel handling conveyors — the sensing module provides the precise current monitoring required for predictive maintenance programs. Fault data logged through the E3 Plus relay and transmitted to the plant DCS via a DeviceNet gateway supports condition-based maintenance scheduling, reducing unplanned outages.

Petrochemical & Process Industries: In hazardous area motor control applications, the 193-ESM-IG-30A-T supports motor protection strategies that comply with IEC 60079 and ATEX requirements when installed in appropriately rated enclosures. Its ground-fault detection capability is particularly valuable in wet or chemically aggressive environments where insulation degradation is a common failure mode.

Water & Wastewater Treatment: Pump stations and aeration systems rely on continuous motor operation. The sensing module’s stall and jam detection functions protect submersible and vertical turbine pumps from mechanical overload caused by debris ingestion or cavitation, while its DeviceNet connectivity enables remote fault notification to SCADA systems.

Mining & Metals: In ore processing and conveyor drive applications, the 193-ESM-IG-30A-T withstands the vibration, dust, and temperature extremes typical of mining environments. Its robust sensing accuracy across the full 30A range ensures reliable protection for high-inertia loads during starting and running conditions.

Product Compatibility FAQ

Q1: Is the 193-ESM-IG-30A-T compatible with both DeviceNet and EtherNet/IP control architectures?
The 193-ESM-IG-30A-T is a plug-in sensing module for the E3 Plus relay body and does not independently communicate on any network. Its data is exposed to the control network through the E3 Plus relay’s communication interface. When the E3 Plus is equipped with a DeviceNet adapter, it communicates natively on DeviceNet. For EtherNet/IP integration, a 193-DNENCAT linking device or an E3 Plus variant with an EtherNet/IP adapter provides transparent system integration into EtherNet/IP-based control architectures, including those managed by ControlLogix or CompactLogix PACs.

Q2: Can this sensing module be installed in an existing E3 Plus relay without replacing the entire motor starter assembly?
Yes. The 193-ESM-IG-30A-T is designed as a field-replaceable plug-in module. It can be installed into or removed from a compatible E3 Plus relay body without disturbing the contactor, wiring, or MCC bucket assembly. This modular design significantly reduces maintenance time and allows current range upgrades — for example, transitioning from a lower-ampere sensing module to the 30A variant — without rewiring the motor branch circuit. Always verify E3 Plus relay body compatibility and firmware revision before installation.

Q3: What does the warranty terms confirmed during quotation cover, and how is it supported for international projects?
The warranty terms confirmed during quotation covers manufacturing defects, component failures, and performance deviations from published specifications under normal operating conditions. Warranty claims are processed from the date of shipment and include replacement or repair of the defective unit. For international projects, our global logistics network ensures that replacement units can be dispatched to most destinations within standard lead times. Technical support for installation, commissioning, and fault diagnosis is available throughout the warranty period via our engineering team at plc.sales@zyplc.com or +86 19859288691.
