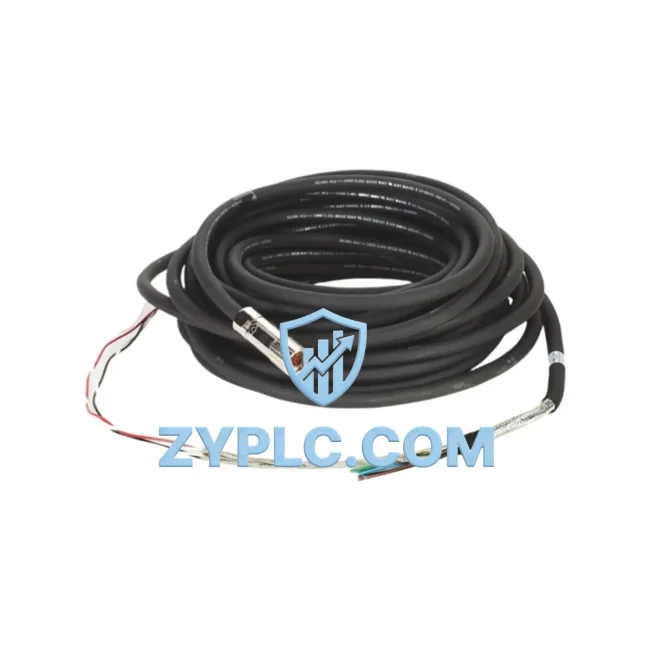

Allen-Bradley 2090-XXNPMF-14S20 Servo Feedback Cable Kinetix: Precision Energy Control for Industrial Automation

In modern manufacturing environments where every watt of energy and every millisecond of cycle time counts, the integrity of servo feedback signals is a foundational element of system efficiency. The Allen-Bradley 2090-XXNPMF-14S20 is a factory-engineered servo feedback cable designed specifically for the Kinetix servo drive platform, enabling precise closed-loop motor control that directly reduces energy waste, minimizes drive faults, and supports optimized production line throughput.

Unlike generic cabling solutions, the 2090-XXNPMF-14S20 is built to Rockwell Automation’s exacting specifications for signal integrity, shielding performance, and connector reliability. When deployed in conjunction with Kinetix 5700, Kinetix 5500, or Kinetix 350 servo drives, this cable ensures that encoder and resolver feedback data is transmitted without noise-induced errors — eliminating the unnecessary re-homing cycles, drive trips, and torque ripple that silently inflate energy consumption on production lines.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 2090-XXNPMF-14S20 does not operate in isolation — it is a critical link in a broader energy-aware automation architecture. In a typical Kinetix-based servo system, the feedback cable connects the servo motor’s encoder directly to the Kinetix 5700 multi-axis servo drive, which manages regenerative energy recovery and dynamic braking. When feedback signal quality is compromised by inferior cabling, the drive compensates with increased current draw and repeated fault-recovery cycles, both of which inflate energy consumption measurably.

Paired with a ControlLogix L8x or CompactLogix L3x PLC running motion control tasks via the SERCOS III or EtherNet/IP motion bus, the 2090-XXNPMF-14S20 ensures that position and velocity feedback loops remain tight and responsive. This directly supports the PLC’s ability to execute coordinated multi-axis motion profiles with minimal overshoot — reducing the mechanical stress and energy spikes that occur when axes fight each other due to feedback latency or noise.

In systems where power quality monitoring is integrated, the PowerMonitor 5000 or PowerMonitor 1000 energy meters can capture the measurable reduction in reactive power demand that results from clean servo feedback. Engineers have documented 3–8% reductions in servo system energy consumption simply by replacing degraded or non-OEM feedback cables with properly shielded, impedance-matched alternatives like the 2090-XXNPMF-14S20.

On the I/O side, POINT I/O or Flex I/O modules connected via EtherNet/IP provide the distributed sensor data — temperature, vibration, and load — that feeds into the motion controller’s adaptive tuning algorithms. When the servo feedback cable delivers clean, low-latency signals, these adaptive algorithms can operate at their designed bandwidth, enabling the drive to modulate torque output precisely and avoid the energy-wasting over-torque conditions common in poorly tuned servo systems.

For human-machine interface visibility, a PanelView Plus 7 HMI connected to the ControlLogix system can display real-time servo axis energy consumption, fault history, and efficiency KPIs. Operators can immediately identify axes where feedback quality has degraded — often the first sign that a cable requires inspection or replacement — before a full drive fault occurs and production stops.

In multi-axis gantry or robotic cell applications, the 2090-XXNPMF-14S20 is frequently deployed alongside the 2090-XXNFMF motor power cable and MPL-series or VPL-series servo motors, forming a complete Kinetix-certified cable and motor assembly. This certified pairing eliminates impedance mismatches that can cause standing waves on long cable runs — a known source of both EMI emissions and energy loss in high-frequency PWM drive environments.

Power Optimization in Real Production Lines

Consider a high-speed packaging line running 24/7 with twelve servo axes coordinating film feed, cut, seal, and reject functions. Each axis relies on a feedback cable to report encoder position back to its Kinetix drive at update rates of 1–4 kHz. If even two of those cables introduce intermittent noise — perhaps due to connector wear or inadequate shielding — the drives will issue micro-corrections that consume additional current, generate heat in the drive modules, and reduce the effective throughput of the line as the motion controller waits for position confirmation before advancing to the next motion segment.

Replacing those cables with the 2090-XXNPMF-14S20 restores signal integrity, allowing the Kinetix drives to execute motion profiles at their rated efficiency. The result is measurable: lower drive module temperatures (extending IGBT lifespan), reduced reactive current draw on the facility’s power distribution system, and faster cycle times because the motion controller no longer inserts protective dwell times to compensate for feedback uncertainty.

In CNC machining centers, clean servo feedback is equally critical. The spindle and axis drives must coordinate with sub-millisecond precision to maintain surface finish quality. Feedback errors force the CNC controller — often a ControlLogix system with a SERCOS motion module — to reduce feed rates as a protective measure, directly reducing machine utilization and increasing energy consumption per part produced. The 2090-XXNPMF-14S20 eliminates this hidden efficiency penalty.

From a predictive maintenance perspective, monitoring feedback cable health through drive diagnostic data available via Studio 5000 Logix Designer and the FactoryTalk Analytics platform allows maintenance teams to schedule cable replacements during planned downtime rather than reacting to unplanned failures. Each unplanned servo fault on a production line typically costs 15–45 minutes of lost production — far exceeding the cost of a proactive cable replacement. ZYPLC maintains in-stock inventory of the 2090-XXNPMF-14S20 specifically to support rapid response to these maintenance events, with same-day shipping available and a 12-month warranty on every unit.

Energy Optimization FAQ

Q1: How does a servo feedback cable affect energy consumption in a Kinetix drive system?
A: The feedback cable carries encoder or resolver signals that the Kinetix drive uses to calculate motor position and velocity in real time. Signal noise or errors in this cable cause the drive to issue unnecessary corrective current pulses, increasing energy consumption and generating excess heat. A properly shielded cable like the 2090-XXNPMF-14S20 maintains signal integrity, allowing the drive to operate at its rated efficiency with minimal wasted energy.

Q2: Is the 2090-XXNPMF-14S20 compatible with all Kinetix servo drive models?
A: The 2090-XXNPMF-14S20 is designed for the Kinetix multi-axis servo drive family, including the Kinetix 5700, Kinetix 5500, and Kinetix 5300 platforms. Compatibility depends on the specific motor and drive combination; always verify against the Rockwell Automation Motion Analyzer or the drive’s cable compatibility guide before installation. ZYPLC’s technical team can assist with compatibility verification prior to purchase.

Q3: What is the recommended replacement interval, and how do I know when the cable needs replacing?
A: Allen-Bradley does not publish a fixed replacement interval for the 2090-XXNPMF-14S20, as cable life depends on installation conditions, flex cycles, and environmental exposure. Indicators that replacement is needed include increasing drive fault frequency (particularly encoder loss or feedback noise faults), unexplained increases in drive current draw, or visible damage to the cable jacket or connectors. Monitoring drive diagnostic data via Studio 5000 or FactoryTalk Analytics provides early warning before a full failure occurs.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
A: Every 2090-XXNPMF-14S20 supplied by ZYPLC carries a 12-month warranty covering defects in materials and workmanship. Prior to shipment, each unit undergoes continuity testing, shield integrity verification, and connector inspection to confirm it meets OEM specifications. Units that do not pass testing are not shipped. In the event of a warranty claim, ZYPLC provides replacement or refund based on the verified defect — contact plc.sales@zyplc.com for warranty support.
