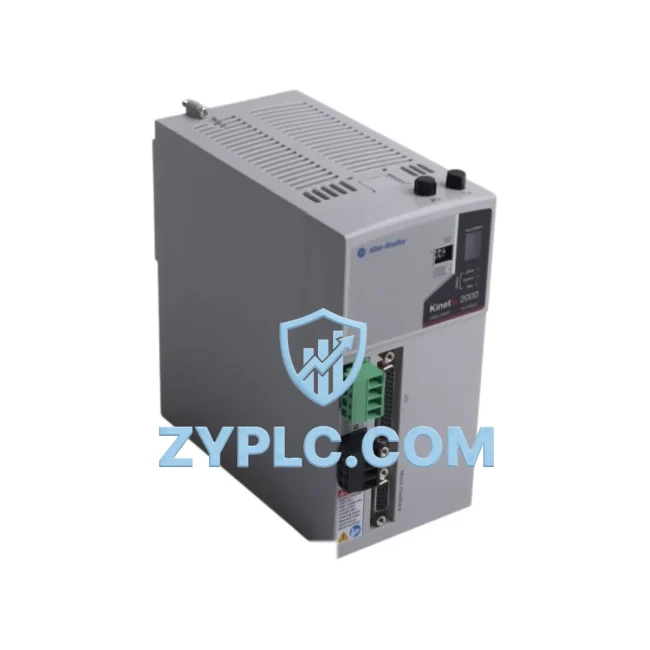

Allen-Bradley 2093-AM01 Industrial Network Interface for Kinetix 2000 Systems

Allen-Bradley 2093-AM01 Industrial Network Interface for Kinetix 2000 Systems: Bridging the Smart Factory Data Link

In modern smart manufacturing environments, seamless data flow between field devices and upper-level control systems is no longer optional — it is the foundation of operational efficiency. The Allen-Bradley 2093-AM01 EtherNet/IP Servo Axis Module for the Kinetix 2000 multi-axis servo drive system is engineered precisely for this purpose. As a high-performance industrial network interface module, the 2093-AM01 enables real-time motion data exchange across EtherNet/IP networks, connecting servo axes directly into the broader automation architecture of a smart factory — from PLC controllers and remote I/O to HMI panels, SCADA platforms, and edge computing gateways.

The 2093-AM01 is not simply a servo axis expansion card. It is a critical node in the industrial data chain, translating servo feedback signals, torque commands, velocity references, and fault diagnostics into structured EtherNet/IP packets that flow transparently through the plant network. Whether integrated with a Logix 5563 ControlLogix processor or coordinated alongside a 1756-ENBT EtherNet/IP bridge module, the 2093-AM01 ensures that motion control data reaches the SCADA layer with minimal latency and maximum fidelity.

Network Communication Table

Connected Automation Data Flow

The 2093-AM01 sits at the intersection of motion control and industrial networking. In a typical Kinetix 2000 deployment, the module connects to the 2093-AC05-MP1 power rail, sharing a common DC bus with adjacent axis modules while maintaining individual EtherNet/IP identity on the plant network. The ControlLogix L63 or CompactLogix L35E processor issues coordinated motion instructions via the 1756-M02AE servo interface or directly through the integrated EtherNet/IP port, with the 2093-AM01 executing position, velocity, and torque loops at servo update rates.

Upstream, the motion data aggregated by the 2093-AM01 feeds into FactoryTalk View SE HMI stations, where operators monitor axis position, following error, drive temperature, and fault codes in real time. Simultaneously, the FactoryTalk Historian SCADA platform archives servo performance trends — enabling predictive maintenance algorithms to flag bearing wear or encoder drift before a production stoppage occurs. Remote I/O nodes such as the 1734-AENT POINT I/O EtherNet/IP adapter extend the data network to field sensors and actuators, feeding process variables back into the same Logix controller that governs the 2093-AM01 axis motion.

For multi-axis applications — such as coordinated gantry systems, winding machines, or pick-and-place robotics — the 2093-AM01 operates in electronic gearing or cam profile modes, with synchronization data exchanged over the EtherNet/IP backbone at deterministic intervals. The 2093-AM02 and 2093-AM03 axis modules on the same power rail share this network infrastructure, enabling the Logix controller to orchestrate complex multi-axis motion sequences with microsecond-level coordination. Edge gateways such as the Cisco IE 4000 industrial switch provide the managed Layer 2 switching fabric that keeps EtherNet/IP traffic prioritized and latency-bounded across the factory floor.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols and isolated control islands. Legacy servo systems often communicate over proprietary drive buses — SERCOS, analog ±10V, or pulse-direction interfaces — that cannot be directly interrogated by modern SCADA or MES platforms. The 2093-AM01, by implementing the EtherNet/IP CIP Motion protocol natively, eliminates this isolation. Servo axis data — position feedback, velocity, torque, fault codes, and drive diagnostics — becomes immediately accessible to any EtherNet/IP-capable device on the plant network, from a PanelView Plus 7 HMI terminal to a cloud-connected MES server.

For facilities undergoing digital transformation, the 2093-AM01 provides a clear migration path. Existing Kinetix 2000 installations can be integrated into new Studio 5000 projects without replacing the mechanical drive hardware, preserving capital investment while gaining full network visibility. Production line transparency improves dramatically: OEE dashboards can display real-time axis utilization, cycle time per part, and cumulative fault history — data that was previously locked inside the drive and inaccessible to plant management systems.

Remote diagnostics capability is another key advantage. Through the EtherNet/IP network, maintenance engineers can interrogate the 2093-AM01 from a remote workstation — reading encoder counts, checking bus voltage, reviewing fault queues, and even initiating controlled shutdowns — without physical access to the control panel. This capability is especially valuable in hazardous environments or geographically distributed facilities where on-site intervention is costly and time-consuming. Combined with FactoryTalk AssetCentre for configuration backup and change management, the 2093-AM01 supports a comprehensive industrial cybersecurity and asset management strategy.

System scalability is equally well-served. The Kinetix 2000 architecture supports up to eight axis modules per power rail, and multiple power rails can be coordinated by a single Logix controller over EtherNet/IP. As production demands grow, additional 2093-AM01 or 2093-AM02 modules can be added to the network without architectural redesign — simply extend the power rail, configure the new axis in Studio 5000, and the SCADA system automatically discovers the new data source.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 2093-AM01 over EtherNet/IP?
The 2093-AM01 supports CIP Motion with Requested Packet Intervals (RPI) as low as 1 ms for cyclic I/O, ensuring deterministic servo control with minimal network-induced jitter. For SCADA polling and explicit messaging, typical latency is under 10 ms on a properly configured managed switch network.

Q2: Is the 2093-AM01 compatible with third-party EtherNet/IP controllers or only Rockwell Automation systems?
The 2093-AM01 is optimized for Rockwell Automation Logix platforms (ControlLogix, CompactLogix) using Studio 5000 Logix Designer. While EtherNet/IP is an open standard, CIP Motion profile support requires a compatible motion controller. Integration with third-party controllers may require a protocol gateway or EDS-based explicit messaging configuration.

Q3: How is network stability maintained in high-EMI industrial environments?
The Kinetix 2000 system is designed for industrial EMC compliance. EtherNet/IP cabling should follow Rockwell Automation wiring guidelines — shielded Cat5e or Cat6 cable, proper grounding, and physical separation from power conductors. Managed industrial switches with IGMP snooping and QoS prioritization further ensure network stability under heavy multicast traffic conditions.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 2093-AM01?
All 2093-AM01 units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures. Each unit undergoes pre-shipment functional verification, including power-on testing and communication interface checks, before dispatch. Fast global shipping is available with full export documentation. For pricing, availability, and technical consultation, contact ZYPLC directly.
