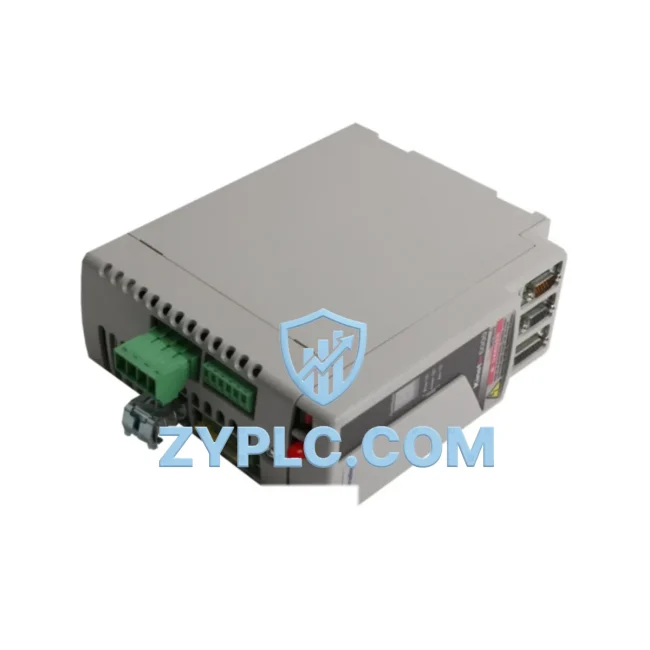

Allen-Bradley 2094-AM02-S Industrial Network Interface for Kinetix 6000 Systems

Allen-Bradley 2094-AM02-S: Industrial Data Link for Kinetix 6000 Motion Control Systems

The Allen-Bradley 2094-AM02-S is a high-performance axis module designed for the Kinetix 6000 multi-axis servo drive platform — one of Rockwell Automation’s most widely deployed motion control architectures in precision manufacturing, packaging, and smart factory environments. As an industrial network interface component, the 2094-AM02-S plays a critical role in the real-time data chain that connects field-level servo motors and feedback devices to upper-level PLC controllers, SCADA systems, and HMI visualization platforms.

In modern industrial sites, motion data must flow seamlessly from the servo axis through the drive bus, across the control network, and into the supervisory layer — all within deterministic cycle times. The 2094-AM02-S is engineered to meet this demand, supporting synchronized multi-axis coordination through the Kinetix 6000 shared DC bus architecture and communicating upstream via SERCOS fiber-optic ring or EtherNet/IP, depending on the system configuration. This dual-path capability makes it compatible with both legacy motion networks and next-generation Ethernet-based factory automation topologies.

Network Communication Table

Connected Automation Data Flow

Understanding the 2094-AM02-S requires tracing the full data path it participates in — from the physical motor shaft back to the enterprise MES layer. At the field level, servo motors equipped with high-resolution encoders feed position, velocity, and torque feedback into the 2094-AM02-S axis module. This feedback data is processed locally within the Kinetix 6000 drive chassis, which may house multiple axis modules sharing a common DC bus rail — a topology that dramatically improves energy efficiency through regenerative power sharing between axes.

The axis module communicates with the Kinetix 6000 2094-BC02-M02-S or 2094-BC07-M05-S power rail and integrates with the 2094-SE02F-M00-S SERCOS interface module, which bridges the drive system to the ControlLogix or CompactLogix PLC controller over a fiber-optic SERCOS ring. The PLC — typically a 1756-L74 or 1756-L85E ControlLogix processor — executes the motion program and sends real-time position commands back down the SERCOS ring to each axis module at scan rates as fast as 1 ms.

For sites running EtherNet/IP-based architectures, the 2094-AM02-S system integrates with a 1756-EN2T or 1756-EN3TR EtherNet/IP communication module in the ControlLogix chassis, enabling seamless data exchange with SCADA platforms such as FactoryTalk View SE or Ignition SCADA. Operators at HMI terminals — including PanelView Plus 7 or PanelView 5500 displays — can monitor axis status, fault codes, drive temperature, and real-time torque curves without interrupting production.

Remote I/O expansion is handled through POINT I/O or FLEX I/O modules connected via EtherNet/IP or DeviceNet, feeding digital and analog signals from proximity sensors, photoelectric sensors, and pressure transducers into the same ControlLogix backplane that governs the Kinetix 6000 motion system. Variable frequency drives such as the PowerFlex 755 or PowerFlex 527 may operate in parallel on the same EtherNet/IP segment, coordinating conveyor speed with servo-driven pick-and-place axes for fully synchronized production flow.

At the edge, an industrial edge gateway — such as a Stratus EWS or Cisco IE3400 managed switch — aggregates data from the Kinetix 6000 system, the PLC, and auxiliary I/O nodes, forwarding structured datasets to cloud-based analytics platforms or on-premise MES systems. This end-to-end data chain — from the 2094-AM02-S axis module to the enterprise layer — is the backbone of transparent, data-driven smart factory operations.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, drive systems, and upper-level control platforms operate in disconnected silos, making real-time visibility, remote diagnostics, and coordinated control impossible. The Allen-Bradley 2094-AM02-S directly addresses this challenge within Kinetix 6000 motion systems.

Protocol Fragmentation: Many legacy production lines mix SERCOS, DeviceNet, and Ethernet-based devices that cannot natively communicate with each other. The Kinetix 6000 architecture, anchored by the 2094-AM02-S, bridges these protocol layers through the ControlLogix backplane, allowing a single PLC program to coordinate motion axes, I/O modules, and network gateways under one unified control strategy.

Real-Time Monitoring and Alarm Feedback: Without a connected drive system, axis faults — overcurrent, encoder loss, thermal overload — are only discovered after a machine stops. The 2094-AM02-S continuously reports drive health data to the ControlLogix controller, which can trigger alarm outputs, notify SCADA operators via FactoryTalk Alarms and Events, and log fault history for predictive maintenance analysis.

Remote Diagnostics: Maintenance engineers can access drive parameters, fault logs, and real-time axis data remotely through Studio 5000 Logix Designer connected over EtherNet/IP, eliminating the need for on-site intervention for routine diagnostics. This capability is especially valuable for multi-site manufacturers managing geographically distributed production lines.

Production Line Transparency: By integrating the 2094-AM02-S into a FactoryTalk Historian data collection pipeline, manufacturers can capture axis performance trends — cycle time, torque utilization, position error — and surface them in FactoryTalk VantagePoint dashboards, enabling continuous improvement teams to identify bottlenecks and optimize motion profiles without halting production.

System Scalability: The Kinetix 6000 shared DC bus architecture allows additional 2094-AM02-S axis modules to be added to an existing power rail without redesigning the control network. This plug-and-expand capability supports phased factory upgrades and production capacity increases with minimal downtime.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 2094-AM02-S support, and is it compatible with EtherNet/IP-based SCADA systems?
The 2094-AM02-S operates within the Kinetix 6000 drive system, which supports SERCOS fiber-optic ring communication between the drive and the ControlLogix PLC. The ControlLogix platform then connects to EtherNet/IP networks, enabling full integration with SCADA systems such as FactoryTalk View SE, Ignition, and Wonderware. This two-layer architecture ensures deterministic motion control at the drive level while maintaining open Ethernet connectivity at the supervisory level.

Q2: How does the 2094-AM02-S handle network stability and communication latency in high-speed motion applications?
The SERCOS interface used by the Kinetix 6000 system provides deterministic, jitter-free communication with cycle times as low as 1 ms, making it suitable for high-speed, multi-axis synchronized applications such as flying shear, electronic cam, and coordinated robotics. The fiber-optic ring topology also provides inherent immunity to electromagnetic interference — a critical advantage in environments with large servo drives, VFDs, and high-current switching equipment.

Q3: Can the 2094-AM02-S be integrated into an existing ControlLogix system without replacing the entire drive chassis?
Yes. The 2094-AM02-S is designed as a modular axis module that slots into the Kinetix 6000 power rail alongside existing axis modules. Provided the power rail has available slots and the DC bus capacity supports the additional axis, the module can be added to an existing system with a firmware update and configuration in Studio 5000 Logix Designer — no full system replacement required.

Q4: What testing and warranty coverage is provided with the 2094-AM02-S supplied by ZYPLC?
Every Allen-Bradley 2094-AM02-S unit supplied by ZYPLC undergoes full functional testing prior to shipment, including power-on verification, communication interface checks, and parameter validation. All units are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, ZYPLC provides rapid replacement or repair support to minimize production downtime. Global shipping via DHL and FedEx ensures fast delivery to manufacturing sites worldwide.

—
