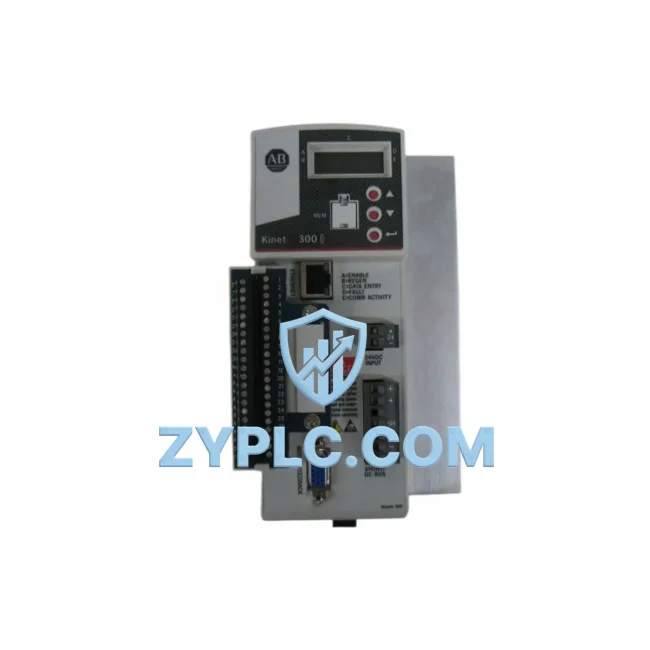

Allen-Bradley 2097-V33PR5 Industrial Network Interface for Kinetix 350 Systems

Allen-Bradley 2097-V33PR5: Industrial Data Link for Kinetix 350 Smart Factory Systems

The Allen-Bradley 2097-V33PR5 is a single-axis indexing servo drive from the Rockwell Automation Kinetix 350 family, engineered to serve as a high-performance industrial network interface between motion control hardware and upper-level automation systems. In modern smart factory environments, the 2097-V33PR5 is not merely a drive — it is a critical node in the industrial data chain, enabling seamless communication from field-level sensors and actuators all the way to SCADA platforms, MES layers, and cloud-based analytics engines.

Built around the EtherNet/IP communication protocol, the 2097-V33PR5 integrates natively with Rockwell’s Studio 5000 Logix Designer environment, allowing engineers to configure, commission, and monitor axis motion parameters directly from the PLC programming interface. This tight integration eliminates the need for standalone drive configuration tools and dramatically reduces commissioning time on the plant floor.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 2097-V33PR5 sits at the intersection of motion execution and network intelligence. The data flow begins at the field level, where Kinetix MPL servo motors generate real-time feedback signals — encoder position, velocity, and torque — that are captured and processed by the drive’s internal control loop. These values are then transmitted upstream via EtherNet/IP to a CompactLogix L33ER or ControlLogix L85E PLC controller, which executes the motion program and coordinates axis synchronization across the production line.

Within the same network segment, POINT I/O 1734-AENT remote I/O adapters collect discrete and analog signals from proximity sensors, photoelectric detectors, and pressure transducers installed on the machine frame. These signals are aggregated by the PLC and correlated with the servo drive’s motion state to enable condition-based interlocking and fault response. A PanelView Plus 7 HMI terminal mounted at the operator station provides real-time visualization of axis position, drive status, fault codes, and production counters, giving line operators immediate visibility into machine behavior without requiring access to the engineering workstation.

At the network infrastructure layer, a Stratix 5700 managed industrial Ethernet switch provides the backbone connectivity between the 2097-V33PR5, the PLC, the HMI, and the plant-wide SCADA system. The switch’s IGMP snooping and QoS prioritization features ensure that CIP Motion traffic from the servo drive receives deterministic bandwidth allocation, preventing latency spikes that could disrupt closed-loop position control. Upstream, a FactoryTalk View SE SCADA server aggregates drive telemetry, alarm histories, and production KPIs into dashboards accessible by production managers and maintenance engineers across the facility network.

For applications requiring integration with legacy fieldbus devices, a 1203-USB or POINT Guard I/O 1791DS safety module can be incorporated into the architecture to bridge safety-rated I/O signals into the EtherNet/IP network, ensuring that the 2097-V33PR5 operates within a fully coordinated safety zone. Additionally, PowerFlex 525 variable frequency drives controlling auxiliary conveyor and pump motors on the same production line can share the Stratix switch infrastructure, enabling unified drive management from a single FactoryTalk Asset Centre repository.

Edge computing nodes such as the Rockwell Automation Edge Gateway can subscribe to real-time data published by the 2097-V33PR5 over EtherNet/IP, enabling local analytics, predictive maintenance algorithms, and OEE calculations without routing all data to the cloud. This architecture supports the IIoT vision of distributed intelligence — where each drive, sensor, and controller contributes structured data to a unified operational picture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols and isolated control islands. Legacy installations often feature a mix of DeviceNet, Profibus, RS-232, and proprietary serial interfaces that cannot communicate directly with modern EtherNet/IP-based controllers. The 2097-V33PR5, as a native EtherNet/IP device, eliminates the protocol translation burden for motion control axes, allowing the PLC to address the drive using standard CIP Motion objects without any intermediate gateway hardware.

For sites where older drives or third-party equipment must coexist with the Kinetix 350 system, protocol conversion modules such as the 1203-GU6 Universal Gateway can bridge legacy communication formats into the EtherNet/IP domain, ensuring that the 2097-V33PR5 can participate in a unified data architecture alongside equipment from multiple generations and vendors. This approach directly addresses the data silo problem — where drive fault histories, energy consumption data, and motion diagnostics are trapped in isolated drive memories and never surfaced to the SCADA or MES layer.

Remote monitoring and diagnostics are fully supported through the drive’s EtherNet/IP interface. Maintenance engineers can access real-time drive parameters — bus voltage, output current, thermal status, and fault queue — from any networked workstation running Studio 5000 Logix Designer or FactoryTalk Diagnostics, without requiring physical access to the control panel. This capability is particularly valuable for multi-site operations where a central engineering team supports production lines across geographically distributed facilities.

Production line transparency is further enhanced by the drive’s support for electronic data sheets (EDS) and Add-On Profiles (AOP), which allow the 2097-V33PR5 to self-describe its capabilities to the controller and SCADA system. This plug-and-produce behavior accelerates system expansion — adding a new axis to an existing Kinetix 350 network requires only physical installation and network address assignment, with all configuration parameters automatically populated from the AOP library.

Every 2097-V33PR5 unit supplied by ZYPLC undergoes pre-shipment functional testing, including power-on verification, communication handshake confirmation, and parameter integrity checks. Units are shipped with a 12-month warranty covering manufacturing defects and communication interface failures, with in-stock availability supporting urgent project timelines and emergency replacement requirements.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 2097-V33PR5 over EtherNet/IP?
The 2097-V33PR5 supports CIP Motion with a minimum Requested Packet Interval (RPI) of 0.5 ms, enabling deterministic, low-latency motion control suitable for high-speed coordinated axis applications. Network latency is primarily governed by switch infrastructure quality; using a managed switch such as the Stratix 5700 with QoS configuration is strongly recommended.

Q2: Is the 2097-V33PR5 compatible with third-party SCADA and HMI systems?
Yes. Because the drive communicates via standard EtherNet/IP and CIP, it can be accessed by any SCADA or HMI platform that supports the EtherNet/IP protocol, including Wonderware, Ignition by Inductive Automation, and Siemens WinCC via OPC-UA bridging. Native integration is optimized for Rockwell FactoryTalk View SE and Studio 5000 environments.

Q3: How does the 2097-V33PR5 support network stability in high-interference industrial environments?
The drive’s EtherNet/IP interface is designed to operate in electrically noisy industrial environments. Shielded Cat5e or Cat6 cabling, proper grounding of the drive chassis, and physical separation of power and signal cables are recommended installation practices. The Stratix 5700 switch provides additional network resilience through RSTP (Rapid Spanning Tree Protocol) for redundant ring topologies.

Q4: What does the 12-month warranty cover, and what is the lead time for replacement units?
The 12-month warranty covers all manufacturing defects, including EtherNet/IP communication interface failures, power stage faults attributable to component defects, and encoder feedback circuit issues. ZYPLC maintains in-stock inventory of the 2097-V33PR5, with same-day dispatch available for orders confirmed before 3:00 PM CST. International shipment via DHL Express or FedEx International Priority typically delivers within 3–7 business days.
