Allen-Bradley 2711-K3A17L1 HMI PanelView 300

Allen-Bradley 2711-K3A17L1 HMI PanelView 300: Replacement and Sourcing Information

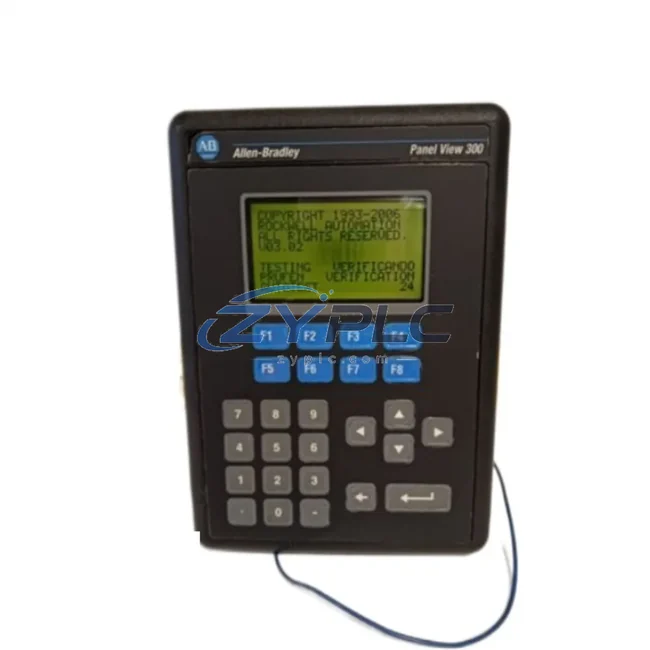

The Allen-Bradley 2711-K3A17L1 is a compact yet powerful PanelView 300 Human-Machine Interface (HMI) module engineered by Rockwell Automation to deliver precise operator control in energy-intensive industrial environments. Designed for seamless integration into SLC 500 and MicroLogix controller networks, this unit enables plant operators to monitor real-time process variables, adjust drive parameters, and respond to system alarms — all from a single, intuitive touchpoint. By placing actionable data directly in the hands of line operators, the 2711-K3A17L1 reduces the lag between energy anomalies and corrective action, directly contributing to lower per-unit operating load and improved overall equipment effectiveness (OEE).

In modern manufacturing, unplanned downtime rarely originates from a single source. It accumulates through idle motor run times, unoptimized drive ramp profiles, delayed fault responses, and poor visibility into real-time load conditions. The 2711-K3A17L1 addresses these inefficiencies by serving as the human interface layer in a tightly integrated automation architecture — bridging the gap between field-level sensors, programmable controllers, and variable frequency drives to create a closed-loop maintenance planning system.

Product Specification Table

System Compatibility and Application

The 2711-K3A17L1 does not operate in isolation — its maintenance planning value is fully realized when deployed within a coordinated Rockwell Automation control architecture. At the controller level, an Allen-Bradley SLC 5/04 processor or a MicroLogix 1400 executes the ladder logic that governs motor start/stop sequences, load cycling, and fault interlocks. The HMI communicates with these controllers over the DH-485 network, allowing operators to issue setpoint changes and acknowledge alarms without requiring engineering workstation access — dramatically reducing response latency during energy-critical events.

On the drive side, the 2711-K3A17L1 is commonly paired with Allen-Bradley PowerFlex 40 or PowerFlex 70 variable frequency drives, which regulate motor speed in direct proportion to actual process demand. When the HMI operator adjusts a speed reference or activates an operational-efficiency mode via the PanelView interface, the command propagates through the SLC controller to the drive’s analog or digital input, enabling smooth, stepless motor deceleration that eliminates the energy spikes associated with across-the-line starting. In conveyor and pump applications, this alone can help restore stable operation when a compatible replacement is required.

For power quality monitoring, the architecture is further strengthened by integrating an Allen-Bradley PowerMonitor 500 or PowerMonitor 1000 energy meter on the incoming supply circuit. These devices capture real-time kWh, power factor, and demand data, which can be surfaced to the operator through custom PanelView screens — giving line personnel immediate visibility into operating load trends without requiring a dedicated SCADA workstation. When power factor drops below threshold, the operator can trigger capacitor bank switching or reduce non-essential loads directly from the 2711-K3A17L1 interface.

I/O expansion is handled through SLC 500 1746-series I/O modules, including analog input cards such as the 1746-NI4 for temperature and current signal acquisition, and digital output modules for contactor and relay control. These modules feed real-time field data into the SLC processor, which the HMI then visualizes as trend bars, numeric displays, or alarm indicators. The result is a fully instrumented energy loop: sense → process → display → respond — all within a single, cohesive Rockwell platform.

Where remote monitoring or data historian integration is required, an Allen-Bradley 1761-NET-AIC Advanced Interface Converter bridges the DH-485 segment to Ethernet/IP, enabling the PanelView data to be aggregated by a FactoryTalk View SE supervisory system. This architecture supports multi-line energy benchmarking, shift-based consumption reporting, and predictive maintenance scheduling — all driven by the operator-level data captured through the 2711-K3A17L1.

Maintenance and Replacement Notes

In a typical discrete manufacturing environment, the 2711-K3A17L1 is mounted at the machine control panel, providing the line operator with a clear, real-time view of motor run status, drive output frequency, process setpoints, and active alarms. This visibility is the first and most critical step in maintenance planning: operators who can see energy-relevant data act on it; operators who cannot, do not.

Consider a packaging line where a conveyor motor runs at full speed regardless of upstream product flow. Without HMI feedback, the motor continues drawing full-load current even during starved-feed intervals. With the 2711-K3A17L1 integrated into the control loop, the operator can monitor the upstream sensor state and manually reduce the drive speed reference during low-throughput periods — or the SLC controller can automate this response based on a recipe setpoint entered through the HMI. Either way, the result is a measurable reduction in motor energy draw during non-peak intervals, directly lowering the facility’s demand charge.

Unplanned downtime is another major source of unplanned downtime in production environments. When a motor fault occurs and goes unacknowledged, downstream equipment often continues running — consuming energy while producing nothing. The 2711-K3A17L1’s alarm display capability ensures that faults are surfaced immediately to the operator, enabling rapid acknowledgment and controlled shutdown of dependent equipment. This reduces both unplanned downtime and mechanical stress on drive components, extending the service life of PowerFlex drives and motor starters.

Predictive maintenance is further supported by trending process variables over time. By configuring the SLC controller to log motor current, drive temperature, and run-hour data — and displaying threshold alerts on the PanelView — maintenance teams can schedule interventions before failures occur. Replacing a worn bearing or cleaning a clogged cooling fan during a planned maintenance window costs a fraction of the energy and production loss associated with an unplanned breakdown. The 2711-K3A17L1 is the operator-facing component that makes this proactive approach practical on the plant floor.

All units supplied by ZYPLC undergo pre-shipment functional testing to verify display integrity, keypad response, communication handshake with SLC/MicroLogix controllers, and power-up self-diagnostics. Each 2711-K3A17L1 is backed by a warranty terms confirmed during quotation, ensuring that your investment in energy-efficient HMI infrastructure is protected from day one of deployment. Inventory is maintained availability confirmed by RFQ for rapid dispatch, minimizing lead times for MRO replacement and new installation projects alike.

Product Sourcing FAQ

Q1: How does the 2711-K3A17L1 contribute to measurable operational stability on a production line?
The PanelView 300 enables operators to monitor real-time drive output, process setpoints, and motor status from a single panel-mounted interface. By giving operators immediate visibility into energy-relevant parameters, the HMI supports faster fault response, manual load shedding during low-demand periods, and setpoint optimization — all of which reduce unnecessary motor run time and operating load. When integrated with PowerFlex VFDs and an SLC 500 controller, the system creates a closed-loop maintenance planning architecture that responds dynamically to actual production demand.

Q2: Which controllers and communication networks is the 2711-K3A17L1 compatible with?
The 2711-K3A17L1 communicates natively over the DH-485 (RS-485) network and supports DF1 Full-Duplex protocol, making it directly compatible with Allen-Bradley SLC 500 series processors (5/01, 5/02, 5/03, 5/04, 5/05) and the full MicroLogix family (1000, 1100, 1200, 1500). It is not natively compatible with ControlLogix or CompactLogix platforms without a protocol bridge, such as the 1761-NET-AIC interface converter.

Q3: Can the 2711-K3A17L1 replace a legacy PanelView 300 unit without reprogramming?
In most cases, yes. The 2711-K3A17L1 is a direct form-fit-function replacement for other PanelView 300 series terminals sharing the same communication port configuration and panel cutout dimensions. Existing PanelView application files (.pvp format) created in PanelBuilder 32 software can be transferred to the replacement unit without modification, provided the firmware version is compatible. ZYPLC recommends verifying the application file version and communication settings before installation to ensure a seamless swap.

Q4: What does the pre-shipment testing process cover, and what is included in the warranty terms confirmed during quotation?
Every 2711-K3A17L1 unit shipped by ZYPLC is tested for display functionality, keypad input response, DH-485 communication handshake, and power supply integrity prior to dispatch. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Warranty claims are processed directly through ZYPLC’s technical support team, with replacement or repair turnaround coordinated to minimize your production downtime.
