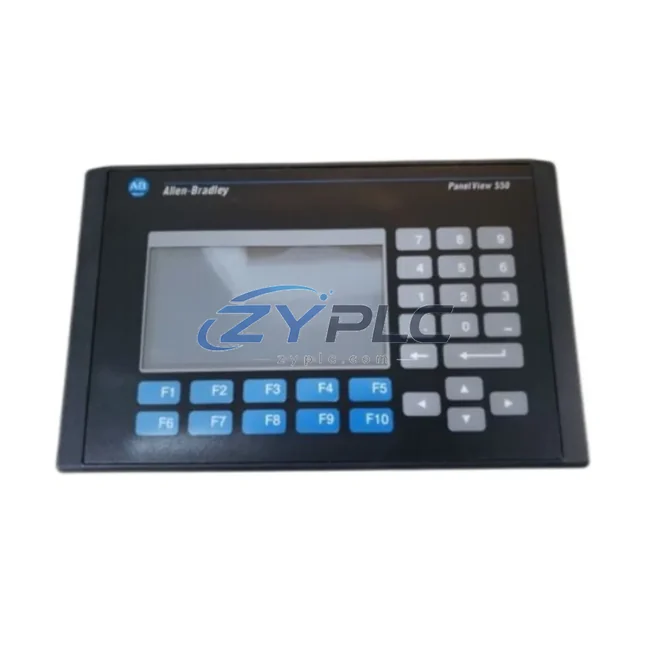

Allen-Bradley 2711-K5A2X HMI for PanelView Automation

Allen-Bradley 2711-K5A2X HMI for PanelView 550 Automation

The Allen-Bradley 2711-K5A2X is a keypad-based HMI operator terminal from the PanelView 550 series, engineered to deliver precise, real-time control visibility across industrial automation environments. In modern manufacturing facilities where energy efficiency and equipment utilization are critical KPIs, the 2711-K5A2X serves as the human-machine interface layer that bridges operator intent with machine execution — enabling faster response to process deviations, reduced idle operating load, and tighter production line rhythm.

Unlike passive display panels, the 2711-K5A2X integrates directly with Rockwell Automation control platforms, allowing operators to monitor drive states, adjust setpoints, and respond to alarms without navigating complex software environments. This direct interaction loop is essential for reducing the unplanned downtime that accumulates during undetected equipment drift, unplanned downtime, and inefficient motor loading cycles.

Product Specification Table

System Compatibility and Application

The 2711-K5A2X does not operate in isolation — its maintenance planning value is realized through tight integration with the broader Rockwell Automation ecosystem. In a typical maintenance-focused production cell, the terminal connects via DH-485 to an Allen-Bradley SLC 5/04 or SLC 5/05 processor, where ladder logic governs motor start/stop sequences, conveyor speed profiles, and pump duty cycles. Operators use the 2711-K5A2X interface to adjust PID loop parameters in real time, preventing the energy penalties associated with over-tuned or under-responsive control loops.

On the drive side, the 2711-K5A2X pairs naturally with Allen-Bradley PowerFlex 40 and PowerFlex 400 variable frequency drives. When an operator identifies a process running at unnecessary speed — a conveyor moving at 60 Hz when 45 Hz meets throughput targets — the HMI provides the interface to issue the setpoint change without halting the line. This kind of micro-optimization, repeated across dozens of motors in a facility, compounds into measurable kWh reductions per shift.

For power quality monitoring, the 2711-K5A2X architecture integrates alongside Allen-Bradley PowerMonitor 500 or PowerMonitor 1000 units. These devices capture real-time current draw, power factor, and harmonic distortion data that operators can cross-reference with HMI alarm states to identify energy anomalies before they escalate into equipment failures. The combination of HMI visibility and power monitoring creates a closed-loop maintenance planning workflow that is far more effective than periodic manual audits.

I/O expansion in these systems typically relies on Allen-Bradley 1746 SLC I/O modules or 1769 CompactLogix I/O, which feed discrete and analog signals — temperature, pressure, flow rate — into the control program. When these signals approach threshold limits, the 2711-K5A2X displays operator alerts, enabling proactive intervention that prevents energy-intensive fault recovery cycles. A motor that trips and restarts draws significantly more energy during the inrush period than one that is managed within its optimal operating band.

Communication infrastructure for the 2711-K5A2X typically includes Allen-Bradley 1747-AIC or 1761-NET-AIC link coupler modules, which manage the DH-485 network topology. In facilities upgrading to EtherNet/IP architectures, the 2711-K5A2X can coexist with newer FactoryTalk View ME terminals during phased migration, preserving existing operator workflows while the control backbone is modernized. This interoperability protects capital investment and avoids the energy and productivity disruption of full system replacement.

For servo-driven axes — common in packaging, assembly, and precision cutting applications — the 2711-K5A2X provides the operator interface for Allen-Bradley Kinetix 300 or Kinetix 6000 servo drives. Operators can monitor axis position, velocity feedback, and torque utilization directly from the HMI, identifying servo systems running at excessive torque margins that indicate mechanical misalignment or tooling wear — both of which increase operating load and accelerate component degradation.

Maintenance and Replacement Notes

In food and beverage processing facilities, the 2711-K5A2X is commonly deployed on filling lines and pasteurization systems where precise temperature and flow control directly impacts both product quality and operating load. Operators use the HMI to monitor setpoints for heating elements and pump speeds, making real-time adjustments that prevent the unplanned downtime of overshooting thermal targets. A filling line running 5°C above its optimal pasteurization temperature wastes energy continuously — the 2711-K5A2X gives operators the visibility to catch and correct this drift within minutes rather than hours.

In automotive assembly plants, the terminal manages conveyor indexing sequences and robotic cell handshake signals. By providing clear status feedback on each station’s ready/busy state, the 2711-K5A2X helps line supervisors identify bottleneck stations that force upstream equipment to idle at full power while waiting for downstream clearance. Reducing these idle periods — even by 10–15 seconds per cycle — translates to significant operational stability across a multi-shift operation.

Predictive maintenance integration is another area where the 2711-K5A2X contributes to energy efficiency. When connected to vibration monitoring modules or thermal sensors via the SLC I/O rack, the HMI can display early warning indicators for bearing wear, belt slippage, or pump cavitation. Addressing these issues proactively prevents the energy-intensive failure modes — locked rotors, cavitating pumps, overloaded drives — that consume disproportionate power and cause unplanned downtime. Every hour of unplanned downtime in a continuous process facility carries both a direct energy cost (restart inrush, reheating, re-pressurization) and an indirect cost in lost throughput.

All units supplied by ZYPLC undergo full functional testing prior to shipment, verifying keypad response, display integrity, communication port operation, and power supply performance. Stock availability is maintained to support urgent replacement requirements, with typical lead times of 1–3 business days. Each 2711-K5A2X is covered by a warranty terms confirmed during quotation, providing assurance for both planned upgrades and emergency replacements in critical production environments.

Product Sourcing FAQ

Q: How does the 2711-K5A2X contribute to operational stability in a production facility?
A: The 2711-K5A2X provides operators with real-time visibility into process setpoints, drive states, and alarm conditions. By enabling faster operator response to process deviations — such as motors running above required speed or heating systems overshooting targets — the HMI reduces the duration of energy-inefficient operating conditions. When integrated with PowerFlex VFDs and PowerMonitor energy meters, the system creates a closed-loop maintenance planning architecture that supports continuous efficiency improvement.

Q: Which PLC and drive systems is the 2711-K5A2X compatible with?
A: The 2711-K5A2X communicates via DH-485, DH+, and DF1 protocols, making it compatible with Allen-Bradley SLC 500, MicroLogix 1000/1100/1400, and PLC-5 series processors. It interfaces with PowerFlex 40, PowerFlex 400, and other Rockwell Automation drives that support these communication standards. For EtherNet/IP-based systems, a protocol gateway or migration to the PanelView Plus series is recommended.

Q: Can the 2711-K5A2X replace a failed unit without reprogramming?
A: Yes. The 2711-K5A2X application program is stored on a removable memory card (PCMCIA), allowing a replacement terminal to be loaded with the existing application without requiring a programming workstation on-site. This significantly reduces mean time to repair (MTTR) in emergency replacement scenarios, minimizing the energy and productivity costs of extended downtime.

Q: What does the warranty terms confirmed during quotation cover, and what is the testing process?
A: Every 2711-K5A2X unit supplied by ZYPLC undergoes pre-shipment functional testing covering keypad input response, display output, communication port integrity, and power supply operation across rated voltage ranges. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that develop faults within the warranty period are repaired or replaced, with technical support available to assist with diagnosis and installation.
