Allen-Bradley 2711-K6C10 HMI for PanelView 600

Allen-Bradley 2711-K6C10 HMI for PanelView 600: Replacement and Sourcing Information and Production Line Optimization

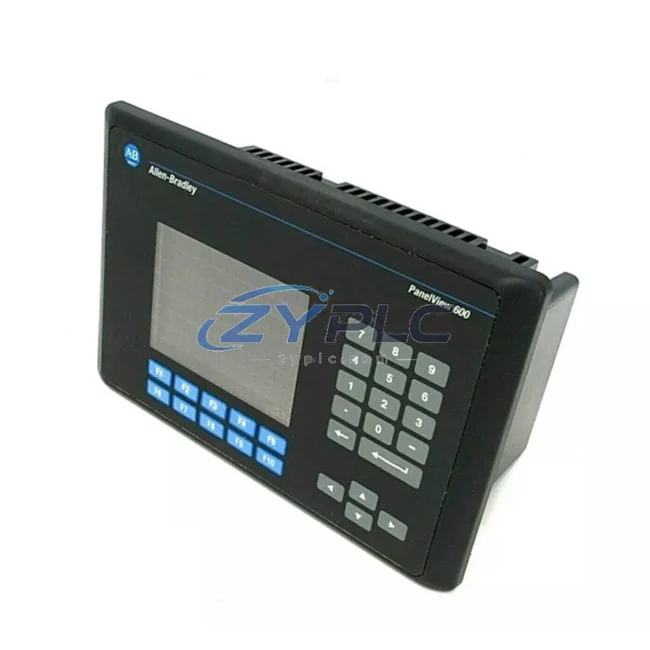

The Allen-Bradley 2711-K6C10 is a high-efficiency operator interface terminal from the PanelView 600 series, engineered to deliver precise, real-time control visibility across energy-intensive industrial environments. As manufacturing facilities face increasing pressure to reduce operational energy costs and maximize equipment utilization, the 2711-K6C10 serves as a critical node in the industrial automation system — bridging operator commands with drive-level execution and system-level feedback.

Designed for seamless integration with Rockwell Automation’s ControlLogix and CompactLogix control platforms, the 2711-K6C10 enables operators to monitor operating load parameters, adjust drive setpoints, and respond to process deviations in real time — all from a compact, panel-mounted interface. Its color keypad display provides intuitive access to motor speed references, power draw indicators, and alarm states, reducing the time operators spend diagnosing inefficiencies and increasing the time production lines spend running at optimal throughput.

Product Specification Table

System Compatibility and Application

In a fully integrated Rockwell Automation maintenance planning system, the 2711-K6C10 operates as the operator-facing layer of a multi-tier control architecture. At the control execution layer, a CompactLogix L33ER or ControlLogix L71 processor handles the logic that governs motor start/stop sequences, load shedding routines, and energy-based interlocks. The 2711-K6C10 surfaces these control states to the operator, enabling manual override and setpoint adjustment without requiring engineering workstation access.

At the drive layer, PowerFlex 525 and PowerFlex 755 AC drives receive speed and torque references that operators can fine-tune directly through the PanelView 600 interface. This closed-loop interaction between the HMI, the PLC, and the drive system is fundamental to reducing unplanned downtime caused by motors running at fixed speeds under variable load conditions. By enabling operators to match motor output to actual process demand, the 2711-K6C10 contributes directly to measurable reductions in kWh consumption per production cycle.

For energy data acquisition, the architecture typically incorporates PowerMonitor 1000 or PowerMonitor 5000 units that capture real-time power quality metrics — voltage, current, power factor, and harmonic distortion — and feed this data back to the ControlLogix processor via EtherNet/IP. The 2711-K6C10 can display aggregated energy KPIs derived from these measurements, giving line operators immediate visibility into whether a machine is operating within its efficient power envelope.

At the I/O layer, 1734 POINT I/O modules distributed across the production line collect analog signals from current transformers, temperature sensors, and pressure transducers. These signals inform the PLC’s maintenance planning logic, which the operator monitors and adjusts through the 2711-K6C10. For servo-driven axes — common in packaging, assembly, and material handling lines — Kinetix 5500 servo drives integrated via EtherNet/IP provide regenerative braking capability, returning energy to the DC bus during deceleration cycles and further reducing net operating load.

Communication between the 2711-K6C10 and the control system is established via DH-485 or RS-232 protocols, with the terminal supporting tag-based data exchange that maps directly to the PLC’s condition monitoring data tables. In modernized installations, a 1761-NET-ENI Ethernet interface module can bridge legacy DH-485 networks to EtherNet/IP backbones, preserving the investment in existing PanelView 600 terminals while enabling integration with contemporary FactoryTalk View SCADA supervisory layers.

Maintenance and Replacement Notes

In automotive body welding lines, the 2711-K6C10 is deployed at individual weld cell control panels, where operators use it to monitor weld cycle times, adjust servo press force parameters, and track operating load per weld event. By correlating cycle time data with energy draw, maintenance teams can identify cells where electrode wear or mechanical friction is causing motors to draw abnormal load — a leading indicator of impending failure that, if unaddressed, results in both unplanned downtime and elevated energy costs.

In food and beverage processing, the terminal is used to manage conveyor speed profiles across multiple production zones. Operators adjust belt speed setpoints through the PanelView 600 interface in response to upstream buffer levels, preventing the unplanned downtime associated with running conveyors at full speed when downstream capacity is constrained. This demand-responsive speed control, executed through the 2711-K6C10 and the connected PowerFlex drives, can reduce conveyor motor load by a meaningful margin during partial-load production periods.

In HVAC and building automation applications within industrial facilities, the 2711-K6C10 provides operators with direct control over fan and pump drive setpoints, enabling manual demand response during peak tariff periods. Combined with the PowerMonitor energy metering infrastructure, this capability allows facility managers to implement load-shifting strategies that reduce peak demand charges — one of the most significant components of industrial electricity costs.

From a maintenance cost perspective, the 2711-K6C10’s alarm management capabilities allow operators to respond to process anomalies before they escalate into equipment damage events. Early detection of overcurrent conditions, thermal overloads, and communication faults — all surfaced through the PanelView 600 display — enables predictive maintenance interventions that extend equipment service life and reduce the frequency of emergency repair expenditures. All units supplied by ZYPLC undergo full functional testing prior to shipment, with a warranty terms confirmed during quotation covering defects in materials and workmanship, and RFQ-confirmed sourcing available for shipment arranged after confirmation to minimize production line downtime.

Product Sourcing FAQ

Q: How does the 2711-K6C10 contribute to measurable operational stability on a production line?
A: The 2711-K6C10 enables operators to monitor and adjust drive speed references, process setpoints, and alarm thresholds in real time. By giving operators direct visibility into motor load conditions and the ability to match drive output to actual process demand, the terminal reduces the unplanned downtime associated with fixed-speed motor operation under variable load — a common source of excess operating load in manufacturing environments.

Q: Is the 2711-K6C10 compatible with modern EtherNet/IP-based control systems?
A: The 2711-K6C10 natively supports DH-485 and RS-232 communication protocols, which are standard in SLC 500 and legacy PLC-5 environments. For integration with EtherNet/IP networks and ControlLogix or CompactLogix platforms, a 1761-NET-ENI interface module can be used to bridge the communication gap, allowing the terminal to operate within contemporary automation architectures without replacement.

Q: What is the recommended replacement or upgrade path for facilities looking to modernize beyond the PanelView 600 platform?
A: For facilities requiring larger displays, higher resolution graphics, or native EtherNet/IP connectivity, the PanelView Plus 7 series offers a direct functional upgrade path within the Rockwell Automation ecosystem. However, for applications where the 2711-K6C10’s form factor, communication protocol, and operator interface logic are already validated and qualified, maintaining the existing terminal — supported by ZYPLC’s availability confirmed by RFQ supply and warranty terms confirmed during quotation — is often the most cost-effective and lowest-risk approach.

Q: What testing and quality assurance processes does ZYPLC apply before shipping the 2711-K6C10?
A: Every 2711-K6C10 unit supplied by ZYPLC undergoes a comprehensive pre-shipment functional test that verifies display operation, keypad response, communication port integrity, and power supply performance. Units are tested against original Allen-Bradley specifications and must pass all functional checkpoints before dispatch. A warranty terms confirmed during quotation is provided on all units, covering defects in materials and workmanship from the date of shipment.
