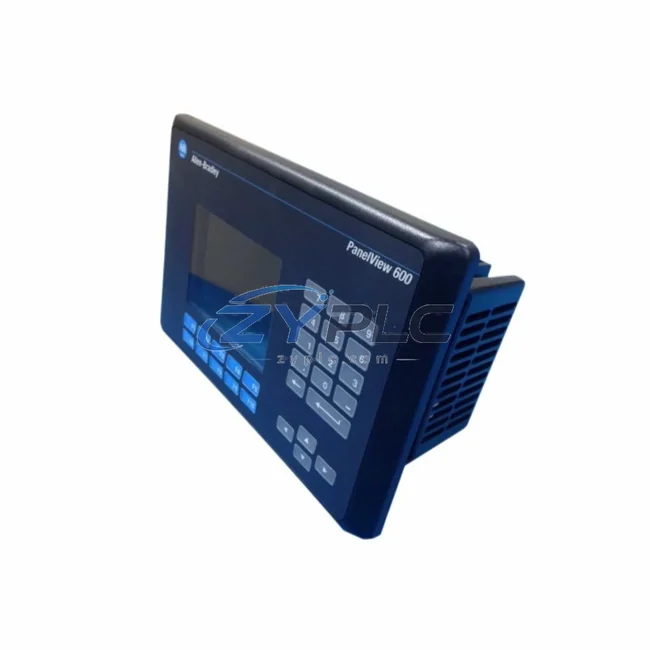

Allen-Bradley 2711-K6C9L1 HMI for PanelView 600

Allen-Bradley 2711-K6C9L1 HMI for PanelView 600 Control System

The Allen-Bradley 2711-K6C9L1 is a PanelView 600 Human-Machine Interface terminal engineered for seamless system integration within Rockwell Automation’s layered control system architecture. Rather than functioning as a standalone display device, the 2711-K6C9L1 serves as the critical human interface layer that bridges operator visibility with the underlying control, I/O, network, and power infrastructure of a complete industrial automation system. Whether deployed in discrete manufacturing, process control, or utility management environments, this HMI terminal delivers the operator interaction capability that modern system architects demand — reliable, scalable, and maintainable over the long term.

In a fully integrated control architecture, the 2711-K6C9L1 connects directly to the control layer via the Data Highway Plus (DH+) or RS-232 communication interface, enabling real-time data exchange with Allen-Bradley SLC 500 series programmable logic controllers such as the SLC 5/03, SLC 5/04, and SLC 5/05. This tight coupling between the HMI layer and the control layer ensures that operator commands are executed with minimal latency, and that process variables — including analog inputs from 1746-NI4 or 1746-NI8 I/O modules — are displayed accurately and continuously. The result is a system where the human interface layer and the control layer operate as a unified, coherent unit rather than as isolated components.

At the I/O layer, the 2711-K6C9L1 supports visualization of signals sourced from Allen-Bradley 1746 series I/O modules installed in SLC 500 modular chassis. Digital inputs from 1746-IB16 modules and analog outputs routed through 1746-NO4I modules can be monitored and adjusted directly from the PanelView 600 interface, reducing the need for engineers to access the control cabinet during routine operations. This capability is particularly valuable in applications where the I/O layer spans multiple rack locations or remote I/O drops, as the HMI consolidates distributed signal status into a single operator view.

From a network architecture perspective, the 2711-K6C9L1 supports DH+ network integration, allowing it to participate in multi-node communication topologies alongside other Allen-Bradley devices. In systems where a 1784-KTX or 1784-PCMK communication card is used to bridge the programming workstation to the DH+ network, the PanelView 600 can coexist on the same network segment without disrupting PLC scan cycles or communication throughput. For installations requiring Ethernet connectivity at the supervisory layer, the 2711-K6C9L1 can be paired with a 1761-NET-ENI serial-to-Ethernet interface module, extending its reach into SCADA and MES environments without requiring hardware replacement.

Power architecture compatibility is another key consideration in system design. The 2711-K6C9L1 operates on 120/240V AC power, making it compatible with standard industrial power distribution panels and UPS systems commonly used in control cabinets. When integrated alongside Allen-Bradley 1746-P4 or 1746-P7 power supply modules that feed the SLC 500 chassis, the overall system power budget can be planned holistically, ensuring that the HMI terminal, PLC, and I/O modules share a stable, well-regulated power environment. This coordinated power design reduces the risk of voltage fluctuations that could cause HMI communication faults or PLC processor resets.

For system architects focused on redundancy and long-term maintainability, the 2711-K6C9L1 offers a proven platform with an extensive installed base across global industrial facilities. Its compatibility with RSView32 and PanelBuilder 1400e development software ensures that existing application logic and screen configurations can be maintained, modified, and transferred by engineering teams without requiring specialized tooling. In facilities where multiple PanelView terminals are deployed across different production zones, standardizing on the 2711-K6C9L1 platform simplifies spare parts management, reduces technician training requirements, and supports a consistent operator experience across the plant floor.

In layered automation systems — from the field device layer through the control layer, network layer, and up to the enterprise integration layer — the 2711-K6C9L1 occupies a strategically important position. Its role is not merely to display data, but to serve as the operator’s window into the entire control system architecture. By providing clear, configurable screen layouts that reflect the real-time state of the process, the PanelView 600 enables faster fault diagnosis, more confident manual interventions, and better-informed operational decisions. This contributes directly to system uptime, production efficiency, and the overall return on investment of the automation infrastructure.

ZYPLC maintains availability subject to RFQ confirmation of the Allen-Bradley 2711-K6C9L1 with full functional testing prior to shipment. Every unit is covered by a warranty terms confirmed during quotation, ensuring that your system architecture investment is protected from the moment of installation through the first year of operation. Our engineering support team is available to assist with system compatibility verification, communication configuration, and integration planning for both new installations and retrofit projects.

Product Specification Table

System Compatibility Notes

The 2711-K6C9L1 achieves its full potential when deployed as part of a coordinated Allen-Bradley control system. At the control layer, it interfaces directly with SLC 5/04 and SLC 5/05 processors housed in 1746-A13 modular chassis, providing real-time visualization of processor status, fault codes, and program execution states. The 1746-IB16 digital input module and 1746-OB16 digital output module supply the discrete signal data that operators monitor through the PanelView 600 screen, while the 1746-NI4 analog input module feeds process variable trends directly to the HMI display.

At the network layer, the 2711-K6C9L1 participates in DH+ topologies alongside 1784-KTX communication interface cards, enabling programming workstations and HMI terminals to share the same network segment without contention. For facilities transitioning to Ethernet-based architectures, the 1761-NET-ENI serial-to-Ethernet interface module provides a cost-effective bridge that preserves the existing PanelView 600 investment while enabling connectivity to higher-level SCADA systems. The 1747-SN remote I/O scanner module further extends the system’s reach to remote I/O racks, all of which remain visible and controllable through the 2711-K6C9L1 interface.

At the power layer, the 1746-P4 power supply module provides regulated 24V DC backplane power to the SLC 500 chassis, ensuring that the I/O modules feeding data to the HMI remain energized and stable. In cabinet designs where the PanelView 600 and the SLC 500 chassis share a common enclosure, coordinated power planning using the 1746-P4 or 1746-P7 power supply ensures that inrush currents during system startup do not cause communication initialization failures between the HMI and the PLC.

Industrial Application Notes

In discrete manufacturing environments — such as automotive assembly lines, packaging machinery, and material handling systems — the 2711-K6C9L1 provides operators with real-time visibility into conveyor status, part counts, cycle times, and fault conditions. Its keypad and touchscreen interface allows line operators to acknowledge alarms, initiate manual sequences, and adjust setpoints without requiring access to the PLC programming terminal, reducing production interruptions and improving response times.

In process control applications — including water treatment plants, chemical dosing systems, and HVAC control panels — the PanelView 600 displays analog process variables such as flow rates, pressure readings, and temperature trends sourced from field instruments connected through the SLC 500 analog I/O modules. Operators can monitor process stability and intervene when values approach alarm thresholds, supporting both manual and automatic control modes within the same HMI interface.

In power distribution and utility management systems, the 2711-K6C9L1 serves as the local operator interface for motor control centers, switchgear panels, and generator control systems. Its NEMA 4/4X front panel rating makes it suitable for installation in environments where washdown, dust ingress, or condensation are operational concerns, ensuring reliable HMI performance in demanding industrial conditions.

For mining, metallurgy, and heavy industry applications, the PanelView 600’s robust construction and wide operating temperature range support deployment in environments where ambient conditions are challenging. Its compatibility with the SLC 500 platform — one of the most widely installed PLC families in global heavy industry — means that the 2711-K6C9L1 can be integrated into existing control architectures without requiring controller replacement or network redesign.

Product Compatibility FAQ

Q1: Is the 2711-K6C9L1 compatible with both SLC 500 and MicroLogix controllers in the same DH+ network?
Yes. The 2711-K6C9L1 supports DH+ and DH-485 communication protocols, which are compatible with SLC 5/03, SLC 5/04, SLC 5/05, and select MicroLogix 1100/1400 controllers. In a mixed-controller DH+ network, the PanelView 600 can be configured to communicate with multiple nodes, enabling a single HMI terminal to serve as the operator interface for more than one controller. Node address configuration is performed through the PanelBuilder 1400e software prior to deployment.

Q2: Can the 2711-K6C9L1 be integrated into a system that is being upgraded from DH+ to Ethernet without replacing the HMI?
Yes. The Allen-Bradley 1761-NET-ENI serial-to-Ethernet interface module provides a transparent bridge between the 2711-K6C9L1’s RS-232 port and an Ethernet network, allowing the PanelView 600 to communicate with Ethernet-capable controllers and SCADA systems without hardware replacement. This approach protects the existing HMI application investment while enabling the control system to participate in modern Ethernet-based architectures, supporting a phased migration strategy that minimizes capital expenditure and production downtime.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance for the 2711-K6C9L1?
ZYPLC’s warranty terms confirmed during quotation covers functional defects identified during normal operation under specified environmental conditions. All units undergo functional testing prior to shipment to verify communication port integrity, display performance, keypad response, and power supply operation. For long-term maintenance, ZYPLC maintains ongoing stock of the 2711-K6C9L1 and compatible SLC 500 components, enabling rapid replacement in the event of field failures. Our engineering team provides pre-sales compatibility verification and post-sales technical support to ensure that the HMI terminal performs reliably within your specific control system architecture throughout its operational life.
