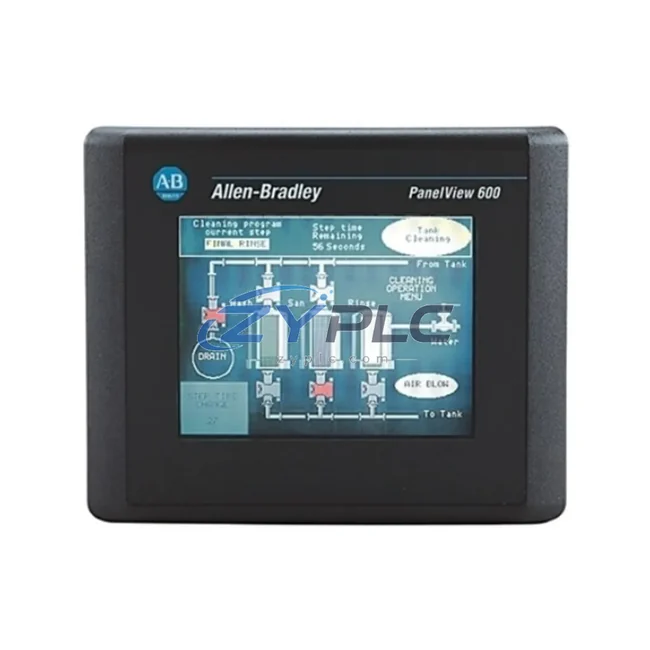

Allen-Bradley 2711-T6C8L1 HMI for PanelView 600

Allen-Bradley 2711-T6C8L1 HMI for PanelView 600: Control System Coordination and Upstream-Downstream Synchronization

The Allen-Bradley 2711-T6C8L1 is a PanelView 600 series human-machine interface terminal engineered for seamless integration within layered industrial control architectures. Rather than functioning as a standalone display unit, the 2711-T6C8L1 occupies a critical position at the HMI layer of a complete automation system — bridging operator commands with the control layer, I/O subsystems, communication networks, and field-level actuators. Its role in maintaining system consistency, expanding supervisory reach, and simplifying long-term maintenance makes it an indispensable component in modern distributed control environments.

In a fully realized control architecture, the 2711-T6C8L1 communicates directly with Allen-Bradley programmable logic controllers such as the MicroLogix 1100 and SLC 500 series via DH-485 or RS-232 serial links, enabling real-time data exchange between the operator interface and the control layer. This system integration capability ensures that process variables, alarm states, and setpoint adjustments flow bidirectionally without latency, supporting both manual override scenarios and automated sequence monitoring. The terminal’s 6-inch color touchscreen provides operators with an intuitive visualization layer that reflects the true state of the underlying control logic at all times.

At the I/O layer, the 2711-T6C8L1 works in concert with Allen-Bradley 1746 SLC I/O modules and 1769 CompactLogix I/O expansion racks. Discrete and analog signal states processed by these modules are surfaced through the HMI’s configured faceplates, giving maintenance engineers immediate visibility into field device status without requiring direct PLC programming access. This architecture reduces diagnostic time significantly during commissioning and unplanned downtime events, contributing to measurable improvements in overall equipment effectiveness across manufacturing and process industries.

Network layer integration is achieved through the terminal’s support for DF1 full-duplex and DH-485 multi-drop protocols, allowing the 2711-T6C8L1 to participate in multi-node control networks alongside other Allen-Bradley devices. In installations where a 1761-NET-AIC Advanced Interface Converter is deployed, the terminal can be incorporated into larger DH-485 networks supporting up to 32 nodes, enabling centralized supervisory monitoring across multiple control zones within a single facility. This communication stability is essential in applications such as water treatment plant SCADA systems, where continuous uptime and reliable data integrity are non-negotiable operational requirements.

Power layer considerations are equally important in system design. The 2711-T6C8L1 operates on 24VDC supplied through the control cabinet’s power distribution rail, typically sourced from Allen-Bradley 1606-XLP series power supplies. Proper power sequencing and surge protection at the cabinet level ensures that the HMI terminal initializes correctly following power restoration events, maintaining operator interface availability in environments subject to utility fluctuations — a common challenge in mining, metallurgical processing, and heavy industrial applications.

From a redundancy and fault-tolerance perspective, the 2711-T6C8L1 supports system architectures where backup communication paths are configured through secondary serial ports. In critical process control applications such as petrochemical refining or pharmaceutical batch manufacturing, this capability allows the HMI layer to maintain connectivity even when primary communication channels experience transient faults, supporting the overall system’s availability targets without requiring operator intervention.

Installation within standard 19-inch control panels or custom enclosures is facilitated by the terminal’s panel-mount form factor and NEMA 4/4X front-face rating, making it suitable for deployment in environments with wash-down requirements or elevated particulate exposure. The 2711-T6C8L1 pairs naturally with Allen-Bradley 1492 terminal block assemblies and 1492-CABLE series pre-wired connection systems, streamlining field wiring during initial installation and simplifying module replacement during scheduled maintenance windows.

For system architects specifying components across the execution layer, the 2711-T6C8L1 provides the operator interface foundation that coordinates with PowerFlex 40 and PowerFlex 70 variable frequency drives through the PLC control layer, enabling speed reference adjustments and drive fault acknowledgment directly from the HMI screen. This end-to-end integration from the operator interface through the control layer to the drive and motor execution layer represents the full depth of system integration that the PanelView 600 platform was designed to deliver.

Long-term maintenance efficiency is a defining advantage of standardizing on the 2711-T6C8L1 within a Rockwell Automation control architecture. Spare parts availability, firmware compatibility with existing RSView ME application files, and consistent hardware form factors across PanelView 600 installations reduce the total cost of ownership over the system lifecycle. All units supplied by ZYPLC are tested, verified for communication functionality, and covered by a warranty terms confirmed during quotation, ensuring that replacement units integrate into existing architectures without requiring application reconfiguration or extended recommissioning procedures.

Product Specification Table

System Compatibility Notes

The 2711-T6C8L1 achieves its full operational value when specified as part of a coordinated control system rather than as an isolated component. In a typical SLC 500-based control cabinet, the terminal interfaces with the Allen-Bradley 1747-L543 SLC 5/04 CPU via DH-485, receiving ladder logic data and writing operator setpoints back to the controller in real time. The 1746-IB16 discrete input module and 1746-OB16 discrete output module provide the field signal interface, with their status mirrored on the HMI faceplates configured in RSView ME.

Power distribution to the control rack is managed by the Allen-Bradley 1606-XLP72E power supply, which provides stable 24VDC to both the SLC rack backplane and the 2711-T6C8L1 terminal simultaneously. Communication network expansion is supported through the 1761-NET-AIC Advanced Interface Converter, enabling the HMI to participate in multi-drop DH-485 networks alongside additional PanelView terminals or programming workstations running RSLogix 500.

In CompactLogix-based architectures, the 2711-T6C8L1 can be paired with the Allen-Bradley 1769-L33ER CompactLogix 5370 controller through a serial DF1 connection, with 1769-IQ16 and 1769-OB16 I/O modules handling field signal processing. For drive coordination, the PowerFlex 40 variable frequency drive receives speed and direction commands from the CompactLogix CPU, with drive status and fault information surfaced on the 2711-T6C8L1 operator screen — creating a complete supervisory loop from operator input through control logic to motor execution.

Field wiring termination is simplified through the use of Allen-Bradley 1492-W3 terminal blocks and pre-wired cable assemblies, reducing installation time and minimizing wiring errors during initial commissioning. This coordinated component selection across the control, I/O, power, communication, and HMI layers represents the system architecture philosophy that maximizes reliability, reduces spare parts complexity, and supports efficient long-term maintenance.

Industrial Application Notes

The 2711-T6C8L1 has established a proven deployment record across a broad range of industrial automation applications. In discrete manufacturing environments such as automotive assembly lines and packaging machinery, the terminal provides operators with real-time production count displays, fault acknowledgment screens, and recipe selection interfaces that directly influence throughput and quality metrics.

In water and wastewater treatment facilities, the PanelView 600 terminal serves as the local operator interface for pump station control panels, with process variables including flow rates, tank levels, and pump run-hours displayed and logged through the connected SLC or MicroLogix controller. The NEMA 4X front-face rating ensures reliable operation in wet environments where wash-down procedures are routine.

For power generation and electrical distribution applications, the 2711-T6C8L1 provides switchgear status visualization and interlock confirmation interfaces within medium-voltage control panels, supporting safe switching operations and reducing the risk of operator error during planned maintenance switching sequences.

In mining and metallurgical processing operations, the terminal’s robust construction and wide operating temperature range support deployment in conveyor control stations, crusher monitoring panels, and concentrate processing control rooms where environmental conditions are demanding and continuous operation is essential. The warranty terms confirmed during quotation coverage provided by ZYPLC ensures that replacement units are available with verified functionality, minimizing the risk of extended production interruptions caused by HMI hardware failures.

Petrochemical and chemical process installations benefit from the terminal’s ability to display analog process variables from 1746-NI4 analog input modules, enabling operators to monitor temperature, pressure, and flow parameters at local control stations without requiring access to the central control room. This distributed operator interface architecture improves response times during process upsets and supports safe manual intervention procedures.

Product Compatibility FAQ

Q1: Is the 2711-T6C8L1 compatible with both SLC 500 and MicroLogix controllers in the same facility?
Yes. The 2711-T6C8L1 supports DH-485 and DF1 RS-232 communication protocols, which are natively supported by both the SLC 500 and MicroLogix 1100/1400 controller families. In multi-controller facilities, separate PanelView 600 terminals can be assigned to individual controllers, or a single terminal can be configured to switch between multiple controller nodes using RSView ME’s node address switching capability. This flexibility supports phased facility upgrades where legacy SLC systems coexist with newer MicroLogix installations without requiring HMI hardware standardization across all zones.

Q2: What are the installation and commissioning requirements for integrating the 2711-T6C8L1 into an existing control architecture?
Physical installation requires a panel cutout per the 2711-T6C8L1 dimensional template, with 24VDC power connected to the terminal’s power input terminals and a serial communication cable routed to the target controller’s DH-485 or RS-232 port. Application files developed in RSView ME software are transferred to the terminal via a 1784-U2DHP USB-to-DH+ adapter or direct serial download. Commissioning involves verifying communication node addresses, confirming tag database mapping between the RSView ME application and the controller’s data table, and testing all configured faceplates under live controller conditions. ZYPLC supplies all units pre-tested for communication functionality, reducing on-site commissioning time and the risk of receiving defective hardware.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation provided by ZYPLC covers hardware defects and communication functionality failures identified after installation. Warranted units that fail within the coverage period are replaced with equivalent tested units, ensuring that system downtime caused by HMI hardware failure is minimized. For maintenance planners managing aging PanelView 600 installations, ZYPLC’s inventory availability and warranty coverage provide a reliable source of verified replacement units that integrate directly into existing RSView ME application architectures without requiring software reconfiguration — supporting long-term maintenance strategies for facilities committed to the Allen-Bradley control platform.
