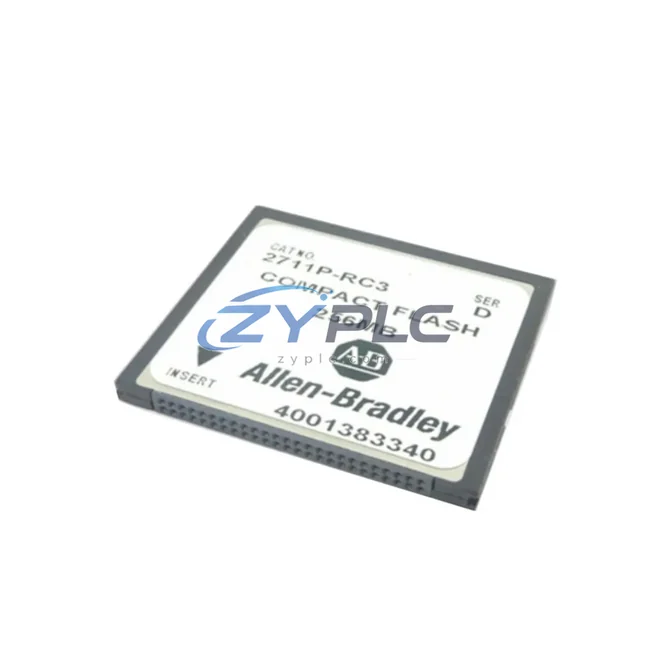

Allen-Bradley 2711P-RC3 HMI Memory Card

Allen-Bradley 2711P-RC3 HMI Memory Card: Precision Control for Optimized Production Lines

In modern industrial environments where every kilowatt-hour counts, the Allen-Bradley 2711P-RC3 CompactFlash memory card plays a quietly critical role in sustaining energy-efficient automation. Designed for use with PanelView Plus and PanelView Plus CE HMI terminals, the 2711P-RC3 stores operator interface applications, runtime configurations, and system logs that directly govern how energy-intensive equipment — from variable frequency drives to servo systems — is commanded and monitored on the plant floor.

When an HMI terminal loses its application data due to a failed or corrupted memory card, the downstream effect is not simply a blank screen. It means operators lose visibility into real-time power consumption dashboards, drive speed references, motor load curves, and alarm histories. Production lines stall. Equipment runs uncontrolled or defaults to inefficient manual override modes. The 2711P-RC3 eliminates this vulnerability by providing a reliable, field-replaceable storage medium that keeps your control interface — and by extension your maintenance planning logic — continuously operational.

Product Specification Table

System Compatibility and Application

The 2711P-RC3 sits at the human-machine interface layer of a broader industrial automation system. In a typical energy-optimized production cell, a ControlLogix L7x or CompactLogix L3x controller executes the primary maintenance planning program — calculating load demand, issuing speed references to PowerFlex 755 or PowerFlex 525 variable frequency drives, and coordinating motion profiles for Kinetix 5700 servo drives. The PanelView Plus terminal running from the 2711P-RC3 card serves as the operator’s window into this entire system.

Through the HMI application stored on the 2711P-RC3, operators can monitor real-time energy consumption trends pulled from PowerMonitor 5000 or PowerMonitor 1000 power metering units. These meters feed data back through EtherNet/IP to the controller, which the HMI then visualizes as trend graphs, alarm banners, and energy KPI dashboards. If the memory card fails and the HMI goes dark, operators lose the ability to respond to energy anomalies — a motor running above its efficiency curve, a drive operating at an inefficient switching frequency, or a compressed air system cycling unnecessarily.

At the I/O layer, 1734 POINT I/O or 1756 ControlLogix I/O modules collect field signals from current transformers, pressure transducers, and temperature sensors. This data informs the energy control logic that the HMI displays and that operators act upon. The 2711P-RC3 ensures the HMI application that interprets and presents this data is always available — even after a power cycle, a terminal replacement, or a firmware update that requires application reload.

For facilities running on a PROFIBUS DP or DeviceNet backbone alongside EtherNet/IP, the PanelView Plus terminal configured via the 2711P-RC3 can bridge operator visibility across multiple network segments, ensuring that energy data from legacy field devices remains accessible without requiring a full network migration.

Maintenance and Replacement Notes

Consider a food and beverage packaging line where three PowerFlex 525 drives control conveyor belt speeds based on upstream sensor feedback. The maintenance planning strategy depends on the HMI operator being able to adjust speed setpoints, monitor drive output frequency, and acknowledge energy-related alarms in real time. The application logic for all of this — screen layouts, tag databases, alarm configurations, and trend definitions — resides on the 2711P-RC3 CompactFlash card installed in the PanelView Plus terminal at the line’s control station.

When a memory card degrades silently, the first symptom is often intermittent HMI freezes or failed application loads after a power interruption. In energy-intensive environments, this translates directly to motors running at fixed speeds rather than demand-matched variable speeds, compressed air compressors cycling without load-based control, and lighting or HVAC systems operating on manual override. Each of these scenarios represents measurable unplanned downtime — waste that a functioning HMI, backed by a reliable 2711P-RC3, would prevent.

Replacing a failed or aging memory card with a new 2711P-RC3 restores the full maintenance planning interface immediately. Because the card is a direct drop-in replacement for PanelView Plus terminals, no reconfiguration of the terminal hardware is required. The operator simply loads the backed-up application from the card, and the condition monitoring and control interface is restored to full functionality — minimizing downtime and preventing the energy losses associated with uncontrolled equipment operation.

Predictive maintenance strategies also benefit from a reliable HMI memory card. When the PanelView Plus terminal is used to display trend data from PowerMonitor units or drive diagnostic registers, maintenance teams can identify rising motor current draw, increasing drive thermal loads, or declining power factor before these conditions cause failures. The 2711P-RC3 ensures this predictive data is always visible, supporting a maintenance model that reduces both unplanned downtime and the energy penalties associated with degraded equipment performance.

Product Sourcing FAQ

Q1: How does the 2711P-RC3 contribute to operational stability in an industrial facility?
The 2711P-RC3 itself consumes negligible power, but its contribution to energy efficiency is systemic. By maintaining the HMI application that operators use to monitor and control energy-intensive equipment — including VFDs, servo drives, and power meters — the card ensures that closed-loop maintenance planning remains continuously active. A failed memory card that takes down the HMI can result in equipment defaulting to fixed-speed or manual operation, directly increasing energy consumption.

Q2: Is the 2711P-RC3 compatible with all PanelView Plus terminal models?
The 2711P-RC3 is compatible with PanelView Plus and PanelView Plus CE terminals across the product family, including PanelView Plus 6 and PanelView Plus 7 series. It is recommended to verify the specific terminal model’s documentation for CompactFlash card compatibility before installation, particularly for older CE-based terminals with specific firmware requirements.

Q3: What is the recommended replacement process to avoid production disruption?
Best practice is to maintain a backed-up copy of the HMI application on a secondary storage medium before replacing the 2711P-RC3. The replacement card should be pre-loaded with the application image prior to installation. This allows the terminal to resume normal operation immediately upon card swap, with no need to re-download the application from the development workstation — minimizing line downtime to under five minutes in most cases.

Q4: What warranty and testing does ZYPLC provide with the 2711P-RC3?
Every 2711P-RC3 supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each unit undergoes outbound inspection and functional verification to confirm the card is free from physical defects and reads correctly in a compatible terminal. Availability is confirmed via RFQ for shipment arranged after confirmation, supporting urgent maintenance and spare parts replenishment requirements.
