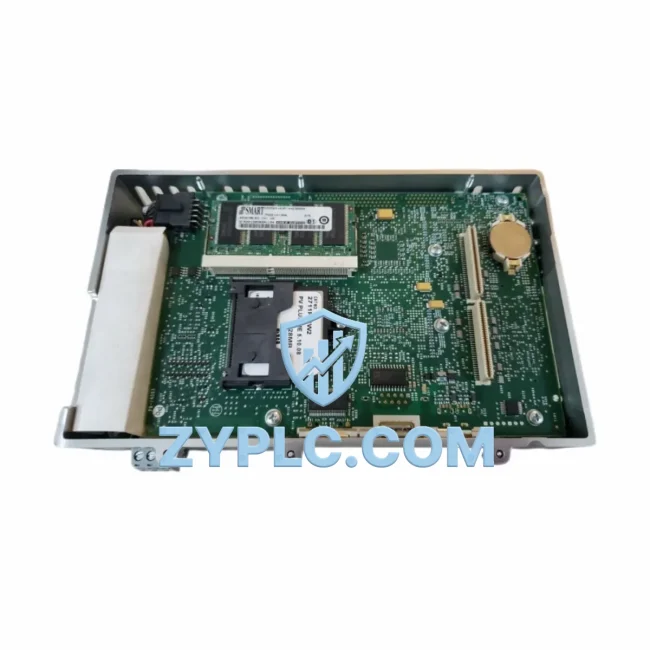

Allen-Bradley 2711P-RP2A PanelView Plus HMI Logic Module

Allen-Bradley 2711P-RP2A: Industrial Data Link for PanelView Plus Smart Factory Networks

The Allen-Bradley 2711P-RP2A is the dedicated logic module for the PanelView Plus HMI series, engineered to serve as the central intelligence node in industrial communication architectures. Designed for demanding manufacturing environments, this module bridges the gap between field-level devices and supervisory control systems, enabling seamless, real-time data exchange across the entire automation hierarchy. Whether deployed in discrete manufacturing, process control, or hybrid production lines, the 2711P-RP2A delivers the connectivity, processing power, and protocol compatibility that modern smart factories demand.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the 2711P-RP2A logic module acts as the visualization and communication engine at the operator interface layer. Signal acquisition begins at the field level, where sensors, proximity switches, and transmitters feed raw process data into remote I/O modules such as the Allen-Bradley 1734 POINT I/O or 1756 ControlLogix I/O chassis. These signals are processed by the plant’s primary PLC controller — typically a 1756-L85E ControlLogix or a 1769-L33ER CompactLogix — which executes the control logic and makes the processed data available over EtherNet/IP.

The 2711P-RP2A receives this structured data stream via its onboard EtherNet/IP interface, rendering live process values, alarm states, trend graphs, and operator controls on the PanelView Plus display. Simultaneously, the module communicates upstream to SCADA platforms such as FactoryTalk View SE or third-party systems like Ignition by Inductive Automation, forwarding aggregated production KPIs, equipment status, and alarm logs for plant-wide visibility.

For legacy integration scenarios, the 2711P-RP2A supports DH+ and ControlNet connectivity, allowing it to interface with older SLC 500 or PLC-5 controllers without requiring a full network migration. In multi-drive environments, the module can display real-time feedback from PowerFlex 755 variable frequency drives, including speed references, output current, fault codes, and energy consumption data — all without additional gateway hardware.

Where wireless or remote access is required, the 2711P-RP2A integrates with Stratix 5700 managed Ethernet switches and Cisco IE series industrial switches to maintain deterministic network performance across the plant floor. Edge gateway devices such as the Allen-Bradley 1783-NATR NAT Router or third-party Moxa industrial routers can extend remote diagnostic access to off-site engineers, enabling real-time troubleshooting without physical site visits.

In process industries, the module connects to Endress+Hauser or Yokogawa field transmitters via HART-to-EtherNet/IP gateways, pulling live flow, pressure, and temperature values directly into the HMI display. This end-to-end data chain — from sensor to HMI to SCADA to cloud — is what positions the 2711P-RP2A as a foundational component in Industry 4.0 connectivity strategies.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, HMIs, and enterprise systems operate in disconnected silos, preventing plant managers from achieving true production transparency. The Allen-Bradley 2711P-RP2A directly addresses this challenge through its multi-protocol communication architecture and deep integration with the Rockwell Automation ecosystem.

Protocol fragmentation is a common barrier in brownfield facilities where legacy DH+ or ControlNet networks coexist with modern EtherNet/IP infrastructure. The 2711P-RP2A supports all three protocols natively, eliminating the need for external protocol converters and reducing network complexity. Operators can monitor both legacy SLC 500 lines and new ControlLogix cells from a single unified HMI interface, dramatically reducing the time required to diagnose cross-system faults.

Remote monitoring is another area where the 2711P-RP2A delivers measurable value. By integrating with FactoryTalk Remote Access or VPN-enabled Stratix switches, maintenance engineers can view live HMI screens, acknowledge alarms, and review historical trends from any location. This capability reduces mean time to repair (MTTR) and minimizes unplanned downtime — critical metrics in high-throughput manufacturing environments.

Production line transparency is achieved through the module’s support for FactoryTalk Historian and third-party OPC-UA data historians, which continuously log process variables for quality auditing, OEE analysis, and regulatory compliance. As production demands evolve, the PanelView Plus platform’s modular architecture allows straightforward system expansion — additional display terminals, logic modules, or communication cards can be added without redesigning the existing network topology.

Every 2711P-RP2A unit supplied by ZYPLC undergoes pre-shipment functional verification, including communication port testing, firmware version confirmation, and visual inspection. Units are shipped with full documentation and are backed by a 12-month warranty, with in-stock availability ensuring rapid fulfillment for both planned projects and emergency replacement requirements.
