Allen-Bradley 2711P-RP8D: Industrial Data Link for Smart Factory HMI Networks

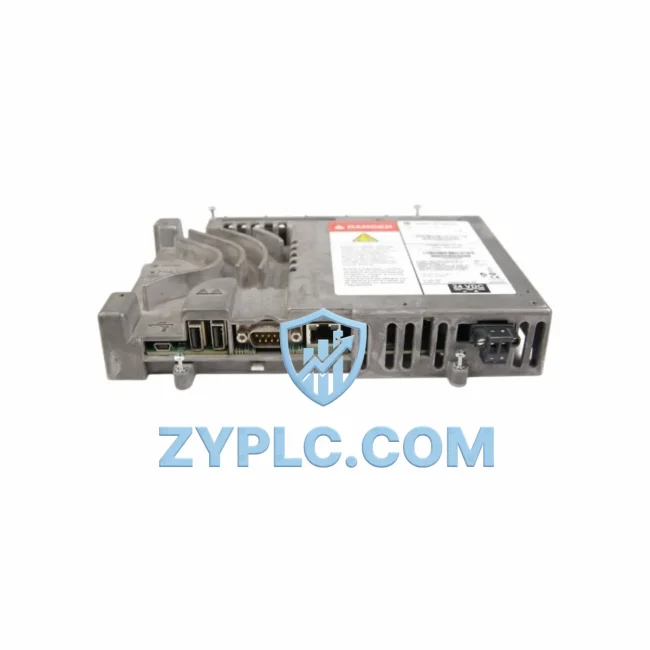

The Allen-Bradley 2711P-RP8D is a high-performance replacement logic module designed for the PanelView Plus 700–1500 series of operator interface terminals. As a core component in Rockwell Automation’s industrial communication architecture, the 2711P-RP8D serves as the intelligence layer that bridges field-level devices, PLC controllers, and supervisory systems — enabling seamless, real-time data flow across the entire automation network.

In modern smart factory environments, the HMI is no longer a passive display unit. It is an active node in the industrial data chain, responsible for aggregating signals from sensors and actuators, executing local logic, and transmitting structured data upstream to SCADA platforms and MES systems. The 2711P-RP8D fulfills this role with precision, supporting EtherNet/IP as its primary communication backbone — the same protocol used across Allen-Bradley’s ControlLogix and CompactLogix PLC families, ensuring native, low-latency integration without the need for protocol conversion middleware.

Network Communication Table

Connected Automation Data Flow

The 2711P-RP8D sits at the intersection of operator interaction and machine control. In a typical smart factory deployment, field-level sensors — such as Rockwell Automation 1734 POINT I/O modules and 1756 ControlLogix I/O adapters — collect process variables including temperature, pressure, flow rate, and motor speed. These signals are transmitted via EtherNet/IP to the ControlLogix L7x or CompactLogix L3x PLC, where ladder logic and function block programs execute control decisions in real time.

The 2711P-RP8D logic module within the PanelView Plus terminal reads tag data directly from the controller’s data table, rendering live process values, alarm states, and trend graphs on the operator screen. When an alarm condition is triggered — for example, a conveyor motor overcurrent detected by a PowerFlex 525 variable frequency drive — the HMI immediately displays the fault code, logs the event timestamp, and can trigger an automated notification to the plant SCADA system running FactoryTalk View SE.

Upstream, the SCADA server aggregates data from multiple PanelView Plus terminals across the production floor, feeding structured datasets into the MES layer for OEE calculation, batch tracking, and production reporting. In facilities using Kepware KEPServerEX as an OPC-UA data broker, the 2711P-RP8D-equipped HMI nodes appear as addressable data sources, enabling third-party systems — including Ignition SCADA by Inductive Automation and Siemens WinCC OA — to subscribe to live process tags without proprietary driver dependencies.

For remote diagnostics and predictive maintenance, the 2711P-RP8D supports integration with FactoryTalk AssetCentre, allowing maintenance engineers to remotely access HMI project files, review alarm history, and push firmware updates without physical access to the panel. In distributed plant architectures, this capability is extended through industrial-grade managed switches such as the Stratix 5700 series, which provide VLAN segmentation, QoS prioritization, and ring topology redundancy to ensure uninterrupted HMI-to-controller communication even during network reconfiguration events.

The module also plays a critical role in edge computing scenarios. When paired with a Rockwell Automation 1783-ETAP EtherNet/IP tap or an Allen-Bradley 1756-EN2T communication module, the 2711P-RP8D can participate in time-synchronized data acquisition loops, supporting applications such as motion coordination, synchronized multi-axis control, and high-speed process interlocking across ControlLogix chassis.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation. Older production lines may combine DH+ networks connecting SLC 500 PLCs, DeviceNet segments linking distributed I/O and smart sensors, and isolated Modbus RTU loops serving third-party instrumentation — all operating in silos with no unified data visibility. The 2711P-RP8D, when deployed as part of a PanelView Plus upgrade strategy, acts as a protocol-aware HMI node that can communicate with legacy Allen-Bradley controllers via DF1 serial or DH+ (using appropriate communication cards), while simultaneously presenting a modern EtherNet/IP interface to the plant network.

This dual-facing capability eliminates the need for standalone protocol converters on the HMI side, reducing network complexity and single points of failure. Plant managers gain a unified operator interface that consolidates data from heterogeneous control systems, enabling production line transparency without requiring a full PLC migration. Alarm management becomes centralized, with the HMI serving as the first point of operator notification for faults originating anywhere in the connected device hierarchy.

For facilities planning system expansion, the 2711P-RP8D’s modular architecture supports incremental scaling. Additional PanelView Plus terminals can be added to the EtherNet/IP network without reconfiguring existing controller logic, and FactoryTalk View ME projects can be synchronized across multiple HMI nodes using FactoryTalk Directory services. This makes the 2711P-RP8D a future-proof investment for plants transitioning toward IIoT-ready, data-driven manufacturing.

Every 2711P-RP8D unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication link verification, display interface check, and firmware version confirmation. Units are shipped with full documentation and are covered by a 12-month warranty, with technical support available for integration and commissioning queries.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 2711P-RP8D support?
The 2711P-RP8D natively supports EtherNet/IP (CIP) for direct integration with ControlLogix and CompactLogix PLCs. Legacy protocol support including DF1 and DH+ is available through compatible communication option cards installed in the PanelView Plus chassis, enabling connectivity to SLC 500 and PLC-5 controllers without additional gateways.

Q2: Can the 2711P-RP8D be integrated with third-party SCADA systems?
Yes. Via OPC-UA data brokers such as Kepware KEPServerEX or direct EtherNet/IP drivers, the 2711P-RP8D-equipped PanelView Plus terminal can serve as a data source for Ignition SCADA, Siemens WinCC, GE iFIX, and other industrial SCADA platforms. FactoryTalk View SE provides native integration within the Rockwell Automation ecosystem.

Q3: How is network stability ensured in high-demand production environments?
The 2711P-RP8D operates on standard EtherNet/IP infrastructure, which supports ring topology redundancy via Device Level Ring (DLR) protocol when used with compatible managed switches such as the Stratix 5700. QoS configuration on the network layer prioritizes HMI-to-controller traffic, minimizing communication latency even under high network load conditions.

Q4: What warranty and testing standards apply to ZYPLC-supplied 2711P-RP8D units?
All 2711P-RP8D modules supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including EtherNet/IP communication verification, USB interface check, and firmware integrity confirmation. In-stock units are available for same-week dispatch with full traceability documentation.
