Allen-Bradley 2711P-T6C20A Industrial Network Interface for PanelView Plus Systems

Allen-Bradley 2711P-T6C20A: Industrial Data Link for PanelView Plus Smart Factory Connectivity

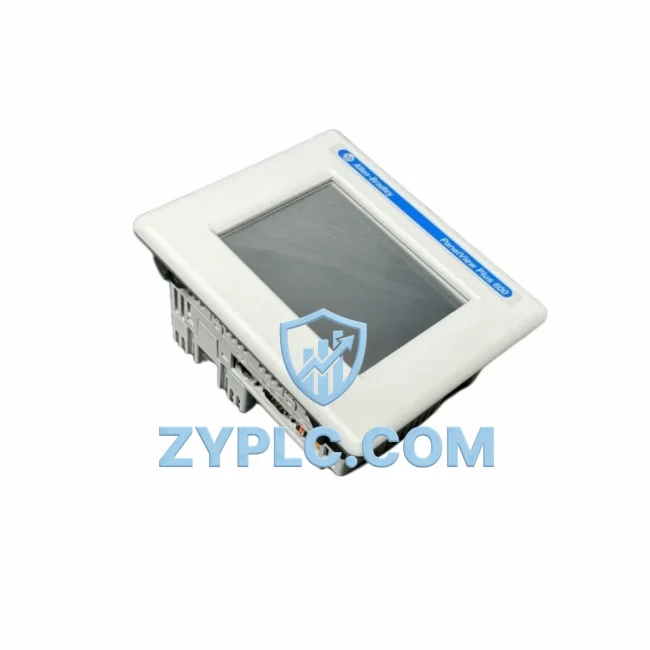

The Allen-Bradley 2711P-T6C20A is a PanelView Plus 600 HMI Terminal engineered for seamless industrial network communication across modern smart factory environments. Built on Rockwell Automation’s proven EtherNet/IP architecture, this unit serves as a critical node in the data flow between field-level devices, PLC controllers, remote I/O modules, SCADA systems, and enterprise-level supervisory platforms. Whether deployed on a discrete manufacturing line, a process control loop, or a hybrid automation cell, the 2711P-T6C20A delivers real-time visualization, operator interaction, and bidirectional data exchange with precision and reliability.

In a typical smart factory deployment, signal acquisition begins at the sensor and actuator layer — temperature transmitters, pressure transducers, photoelectric sensors, and servo drives — where raw process data is collected and forwarded upstream. The 2711P-T6C20A connects directly into this data chain via EtherNet/IP, receiving structured tag data from Allen-Bradley ControlLogix and CompactLogix PLCs such as the 1756-L73 and 1769-L33ER. These controllers manage the logic layer, while the 2711P-T6C20A translates that logic into operator-readable displays, alarm notifications, and interactive control panels. The result is a closed-loop communication path from the physical process to the human operator — with sub-second update rates and deterministic response times.

Protocol conversion and network interoperability are central to the 2711P-T6C20A’s value in multi-vendor environments. When integrated alongside Stratix 5700 managed Ethernet switches or 1783-BMS series network infrastructure, the terminal maintains stable Layer 2 and Layer 3 connectivity across segmented plant networks. For facilities running legacy DeviceNet or ControlNet backbones, protocol gateways such as the 1788-EN2DN or third-party EtherNet/IP-to-Modbus TCP bridges can be inserted upstream, allowing the 2711P-T6C20A to visualize data from older field devices without requiring full network replacement. This backward compatibility is essential for phased digital transformation projects where capital investment must be staged over multiple budget cycles.

Remote diagnostics and predictive maintenance workflows benefit significantly from the 2711P-T6C20A’s network-connected architecture. When paired with FactoryTalk View SE SCADA software or integrated into a FactoryTalk Historian data collection pipeline, the terminal’s runtime data — including alarm logs, operator action records, and screen navigation histories — can be archived and analyzed centrally. Maintenance engineers accessing the plant network remotely via VPN or industrial DMZ infrastructure can review HMI status, push configuration updates, and acknowledge alarms without physical presence on the production floor. This capability reduces mean time to repair (MTTR) and supports continuous uptime targets in 24/7 manufacturing operations.

The 2711P-T6C20A also plays a key role in remote I/O and distributed control architectures. In systems where 1734 POINT I/O or 1794 FLEX I/O modules are distributed across multiple control panels or machine skids, the HMI terminal provides a unified visualization layer that aggregates status from all remote nodes. Operators can monitor valve positions, motor run states, conveyor speeds, and tank levels from a single 6-inch color touchscreen interface, reducing the need for panel-mounted indicator lights and dedicated local displays at each I/O station. This consolidation simplifies panel design, reduces wiring complexity, and lowers overall system cost.

For drive integration, the 2711P-T6C20A communicates natively with PowerFlex 525 and PowerFlex 755 variable frequency drives over EtherNet/IP, enabling speed reference commands, fault acknowledgment, and real-time current and frequency monitoring directly from the HMI screen. This eliminates the need for separate drive keypads or dedicated drive monitoring software on the operator workstation, streamlining the operator interface and reducing training requirements for floor personnel.

System scalability is a defining characteristic of the PanelView Plus platform. As production lines expand or new machine cells are added, additional 2711P series terminals — including the 2711P-T7C22D9P and 2711P-T10C21D8S — can be networked alongside the 2711P-T6C20A within the same FactoryTalk View ME application environment. Shared tag databases, common alarm configurations, and synchronized screen libraries reduce engineering time for multi-panel deployments and ensure consistent operator experience across the facility.

Every 2711P-T6C20A unit supplied by ZYPLC undergoes pre-shipment functional verification, including power-on testing, communication port validation, and display integrity checks. Units are sourced from authorized distribution channels and ship with a 12-month warranty covering hardware defects and communication failures. Global logistics support ensures delivery to manufacturing sites across Asia, Europe, the Middle East, and the Americas, with expedited shipping available for urgent production line requirements.

Network Communication Table

Connected Automation Data Flow

The 2711P-T6C20A sits at the intersection of multiple automation layers, making it a hub for industrial data flow rather than a passive display device. At the field level, sensors such as Allen-Bradley 871TM inductive proximity sensors and 1734-IE4C analog input modules on POINT I/O racks feed process values into the ControlLogix 1756-L73 controller via EtherNet/IP backplane and network connections. The PLC processes this data against ladder logic or function block programs and publishes tag values to the EtherNet/IP network. The 2711P-T6C20A subscribes to these tags in real time, rendering live process values, setpoint comparisons, and alarm states on its touchscreen interface.

Upstream, FactoryTalk Historian SE collects time-stamped tag data from the same EtherNet/IP network, building a historical database that feeds FactoryTalk VantagePoint dashboards for production KPI reporting. The 2711P-T6C20A’s alarm and event logs are synchronized with FactoryTalk Alarm and Events Server, ensuring that every operator acknowledgment and alarm state change is recorded with timestamp and user ID for compliance and audit purposes. In facilities using Cisco IE 4000 or Stratix 5410 network switches for ring topology redundancy, the HMI terminal benefits from Device Level Ring (DLR) protocol support, maintaining connectivity even during single-point network failures.

For motion control integration, the 2711P-T6C20A can display axis position, velocity, and fault data from Kinetix 5500 servo drives connected to the ControlLogix motion controller via EtherNet/IP. Operators can initiate homing sequences, jog axes, and acknowledge drive faults directly from the HMI screen, reducing reliance on dedicated motion control pendants. In conveyor and packaging line applications, this integration enables rapid changeover and format adjustment without engineering intervention.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate in disconnected silos, preventing plant-wide visibility and coordinated control. The 2711P-T6C20A directly addresses this challenge by serving as a standardized EtherNet/IP interface point that bridges operator interaction with the underlying control network.

In facilities where legacy Modbus RTU or DeviceNet devices coexist with modern EtherNet/IP infrastructure, protocol translation gateways upstream of the HMI terminal normalize data into a unified tag namespace. The 2711P-T6C20A then presents this unified data to operators without exposing the underlying protocol complexity, enabling a consistent operator experience regardless of the field device mix. This approach supports phased modernization strategies where older equipment is retained while new EtherNet/IP-native devices are added incrementally.

Production line transparency is achieved through the 2711P-T6C20A’s ability to display multi-machine status on a single screen using FactoryTalk View ME’s multi-controller tag browsing capability. Operators can monitor OEE metrics, batch counts, reject rates, and energy consumption data from multiple PLCs simultaneously, enabling rapid identification of bottlenecks and quality deviations without navigating between separate HMI stations. Remote monitoring via FactoryTalk Remote Access or VPN-connected SCADA clients extends this visibility to supervisory personnel off the production floor.

System expansion is straightforward within the PanelView Plus ecosystem. Additional terminals, remote I/O nodes, and network switches can be added to the EtherNet/IP network without disrupting existing HMI configurations. The 2711P-T6C20A’s application files are portable across compatible PanelView Plus hardware, reducing engineering effort when replacing or upgrading terminals in the field. ZYPLC maintains in-stock inventory of the 2711P-T6C20A and compatible accessories, supporting rapid deployment for both new installations and emergency replacement scenarios.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 2711P-T6C20A over EtherNet/IP?
The 2711P-T6C20A supports configurable tag update rates via FactoryTalk View ME, with typical screen update intervals of 250ms to 1 second depending on tag count and network load. For time-critical alarm displays, dedicated alarm server connections can achieve sub-500ms notification delivery under normal network conditions.

Q2: Is the 2711P-T6C20A compatible with non-Rockwell PLCs or third-party SCADA systems?
The 2711P-T6C20A is optimized for Allen-Bradley EtherNet/IP ecosystems and natively communicates with ControlLogix, CompactLogix, and MicroLogix controllers. Integration with third-party SCADA platforms is possible via OPC-DA or OPC-UA servers acting as data bridges, though direct non-Rockwell PLC communication requires protocol gateway hardware upstream of the HMI terminal.

Q3: How does the 2711P-T6C20A maintain network stability in high-interference industrial environments?
The unit supports standard IEEE 802.3 Ethernet with 10/100 Mbps auto-negotiation and is designed for installation in industrial control panels meeting IEC 61131-2 environmental standards. When deployed on managed Ethernet infrastructure such as Stratix 5700 switches with IGMP snooping and QoS configuration, EtherNet/IP multicast traffic is controlled to prevent network saturation, maintaining stable HMI communication even in high-device-count networks.

Q4: What does the 12-month warranty from ZYPLC cover, and how is pre-shipment testing conducted?
Every 2711P-T6C20A supplied by ZYPLC is covered by a 12-month warranty against hardware defects and communication port failures from the date of shipment. Pre-shipment testing includes power-on verification, touchscreen calibration check, Ethernet port link validation, and display pixel integrity inspection. Units failing any test criterion are quarantined and not shipped. Warranty claims are processed directly through ZYPLC’s technical support team with replacement or repair turnaround commitments.
