Allen-Bradley 2711PC-RP8D Industrial Network Interface for PanelView Plus Compact Systems

Allen-Bradley 2711PC-RP8D Industrial Network Interface for PanelView Plus Compact Systems: Bridging the Industrial Data Link in Smart Factory Environments

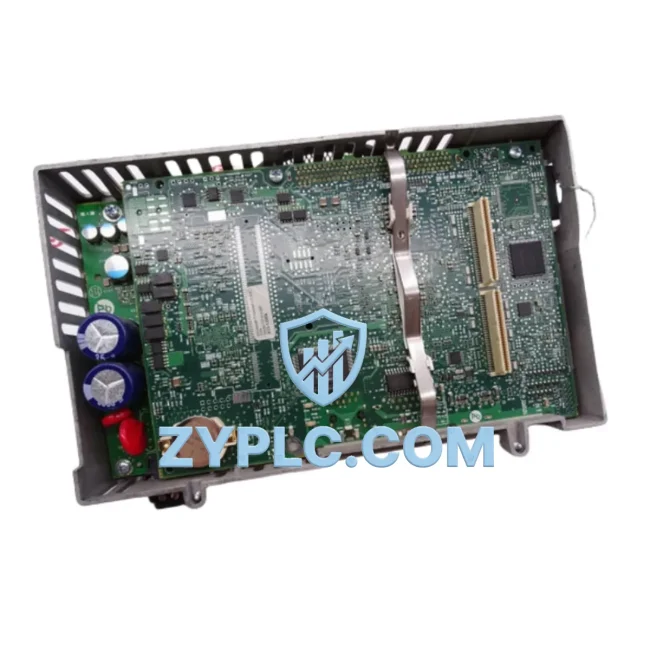

The Allen-Bradley 2711PC-RP8D is a high-performance HMI Logic Module engineered for the PanelView Plus Compact series, delivering seamless EtherNet/IP connectivity across the full spectrum of industrial automation architectures. Designed to serve as the intelligent communication core of your human-machine interface, the 2711PC-RP8D enables real-time data exchange between field devices, PLC controllers, remote I/O nodes, SCADA systems, and upper-level MES platforms — making it an indispensable component in modern smart factory deployments.

In today’s converged industrial network environments, the ability to maintain deterministic, low-latency communication between the operator interface and the control layer is critical. The 2711PC-RP8D fulfills this requirement by leveraging the EtherNet/IP protocol stack — a CIP-based standard widely adopted across Rockwell Automation’s ControlLogix, CompactLogix, and MicroLogix controller families — to ensure that every tag value, alarm state, and process variable is accurately reflected on the HMI display with minimal cycle-time overhead.

Network Communication Table

Connected Automation Data Flow

The 2711PC-RP8D sits at the intersection of the operator layer and the control network, acting as the runtime intelligence that drives the PanelView Plus Compact display. In a typical smart factory data flow, field-level sensors and actuators — such as Rockwell Automation 1734 POINT I/O modules and 1756 ControlLogix I/O adapters — feed real-time process signals into a ControlLogix L7x or CompactLogix L3x controller via the backplane or EtherNet/IP network. The 2711PC-RP8D then communicates directly with these controllers over a standard Ethernet switch infrastructure, pulling live tag data and pushing operator commands back to the control layer with deterministic timing.

Within the broader automation architecture, the 2711PC-RP8D integrates naturally with Rockwell’s FactoryTalk View Studio development environment, where application projects are compiled and downloaded to the logic module. Alongside the PanelView Plus Compact terminal, it works in concert with Allen-Bradley PowerFlex 525 and PowerFlex 755 variable frequency drives — both of which support EtherNet/IP — allowing operators to monitor drive speed references, current draw, fault codes, and energy consumption directly from the HMI screen without requiring a separate communication gateway.

For facilities running Rockwell Automation’s FactoryTalk Historian or FactoryTalk AssetCentre, the 2711PC-RP8D-equipped HMI can serve as a local data aggregation point, forwarding alarm events and production counters upstream to the SCADA server. In multi-zone production lines, Stratix 5700 managed Ethernet switches provide the network backbone that interconnects multiple PanelView Plus Compact terminals, CompactLogix controllers, and remote 1734 POINT I/O drops — all sharing the same EtherNet/IP subnet with VLAN segmentation for traffic prioritization.

Where legacy serial devices such as Modbus RTU sensors or third-party barcode scanners are present on the plant floor, a 1761-NET-ENI or similar EtherNet/IP-to-serial bridge module can be deployed to bring those devices into the same network fabric, with the 2711PC-RP8D HMI providing the unified visualization layer. This architecture eliminates the need for separate operator panels per protocol zone, reducing hardware costs and simplifying maintenance workflows.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A facility may simultaneously operate ControlLogix PLCs on EtherNet/IP, older SLC 500 controllers on DH+ or DH-485, third-party servo drives on PROFIBUS, and legacy SCADA systems expecting Modbus TCP data — creating data silos that prevent plant-wide visibility and slow down decision-making.

The Allen-Bradley 2711PC-RP8D addresses this challenge by providing a standardized EtherNet/IP interface that can be paired with protocol gateway solutions — such as the 1761-NET-AIC or third-party gateways — to bridge heterogeneous networks into a unified data plane. Once all devices share a common communication fabric, the PanelView Plus Compact terminal running the 2711PC-RP8D logic module becomes the single pane of glass through which operators can monitor production KPIs, acknowledge alarms, adjust setpoints, and initiate remote diagnostics without leaving the HMI interface.

For remote monitoring scenarios, the EtherNet/IP connectivity of the 2711PC-RP8D enables integration with FactoryTalk Remote Access or VPN-based remote desktop solutions, allowing maintenance engineers to diagnose HMI application faults, review alarm histories, and push configuration updates from off-site locations. This capability is particularly valuable in multi-site manufacturing operations where on-site engineering resources are limited.

Production line transparency is further enhanced by the 2711PC-RP8D’s support for recipe management and data logging within the FactoryTalk View ME application. Operators can switch between product recipes with a single screen interaction, while the logic module logs the corresponding parameter changes with timestamps — providing a complete audit trail for quality management systems and ISO compliance reporting. As production demands grow, the PanelView Plus Compact platform scales gracefully: additional HMI terminals can be added to the EtherNet/IP network, each running its own 2711PC-RP8D module, without requiring changes to the underlying PLC program or network infrastructure.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 2711PC-RP8D support, and is it compatible with non-Rockwell controllers?
The 2711PC-RP8D natively supports EtherNet/IP (CIP), which is the primary protocol for Rockwell Automation ControlLogix, CompactLogix, and MicroLogix controller families. For non-Rockwell controllers, compatibility can be achieved through third-party EtherNet/IP-to-Modbus TCP or EtherNet/IP-to-PROFINET gateway modules, allowing the HMI to communicate with Siemens, Mitsubishi, or Omron PLCs in mixed-vendor environments.

Q2: How does the 2711PC-RP8D perform in terms of network latency and real-time data update rates?
The 2711PC-RP8D leverages EtherNet/IP’s implicit messaging (Class 1 connections) for cyclic, time-critical data exchange, achieving update rates typically in the range of 10–100 ms depending on network load and tag count. For non-time-critical data such as recipe parameters and alarm history, explicit messaging (Class 3) is used, which operates asynchronously and does not impact real-time control performance.

Q3: Can the 2711PC-RP8D be integrated with SCADA systems such as FactoryTalk View SE or Ignition?
Yes. The 2711PC-RP8D runs FactoryTalk View ME applications locally on the PanelView Plus Compact terminal, and can coexist with FactoryTalk View SE SCADA servers on the same EtherNet/IP network. For third-party SCADA platforms such as Inductive Automation Ignition, the underlying ControlLogix or CompactLogix PLC — which the 2711PC-RP8D communicates with — can be accessed directly via the Ignition OPC-UA driver, enabling parallel HMI and SCADA visualization without data duplication.

Q4: What does the 12-month warranty cover, and how is the 2711PC-RP8D tested before shipment?
Every 2711PC-RP8D unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication interface integrity, firmware version compatibility, and physical connector condition. The 12-month warranty covers manufacturing defects and communication failures under normal operating conditions. Units are shipped via DHL or FedEx Express with full tracking, and our technical team provides post-sale support for installation, configuration, and network integration queries.
