Allen-Bradley 320087-A06 Industrial Network Interface for PowerFlex Systems

Allen-Bradley 320087-A06 Industrial Network Interface for PowerFlex Systems: Enabling Seamless Industrial Data Links in Smart Factory Environments

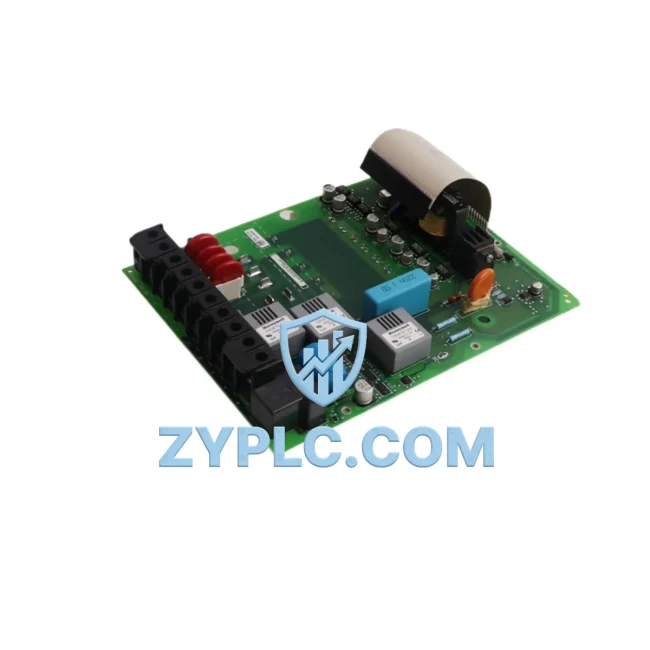

The Allen-Bradley 320087-A06 is a precision-engineered drive control board designed for the PowerFlex series of variable frequency drives, serving as a critical node in the industrial data chain that connects field-level devices to upper-level control and monitoring systems. In modern smart factory deployments, the integrity of the communication path — from sensor signal acquisition through protocol conversion, network transmission, real-time monitoring, alarm feedback, and remote diagnostics — depends on the reliability of every component in the chain. The 320087-A06 fulfills this role with proven performance across demanding industrial environments.

As a core drive board within the PowerFlex platform, the 320087-A06 manages the internal control logic and communication interface of the drive, enabling seamless data exchange between the drive’s power electronics and the broader automation network. Whether integrated with a Allen-Bradley CompactLogix L33ER PLC via EtherNet/IP or connected to a ControlLogix 1756-EN2T communication module for high-speed backplane data transfer, the 320087-A06 ensures that motor speed, torque feedback, fault codes, and operational status are continuously available to the control layer without latency or data loss.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory data flow architecture, the Allen-Bradley 320087-A06 sits at the intersection of the drive layer and the control network. Signal acquisition begins at the sensor level — pressure transmitters, flow meters, and proximity switches feed analog and digital signals into remote I/O modules such as the Allen-Bradley 1734 POINT I/O system. These signals are then processed by a CompactLogix 1769-L33ER or ControlLogix 1756-L74 PLC, which issues speed and torque commands to the PowerFlex drive via EtherNet/IP. The 320087-A06 board receives and executes these commands at the drive’s internal control level, translating network instructions into precise motor control outputs.

Simultaneously, the 320087-A06 feeds real-time operational data — including output frequency, DC bus voltage, drive temperature, and active fault codes — back through the network to a PanelView Plus 7 HMI terminal for operator visualization, and to a FactoryTalk View SE SCADA system for plant-wide monitoring and historical trending. In multi-drive installations, a Stratix 5700 managed industrial Ethernet switch aggregates the EtherNet/IP traffic from multiple PowerFlex drives, ensuring deterministic communication across the production line. For facilities requiring protocol bridging between legacy DeviceNet segments and modern EtherNet/IP backbones, a 1788-EN2DN linking device works in conjunction with the 320087-A06-equipped drives to maintain unified data visibility across mixed-protocol environments.

Edge computing nodes, such as the Allen-Bradley Logix 5000-based edge gateway, can further aggregate drive data from multiple 320087-A06 nodes and push structured datasets to cloud-based MES or ERP platforms, enabling production KPI dashboards, predictive maintenance alerts, and energy consumption analytics at the enterprise level. This end-to-end data chain — from the 320087-A06 drive board through the control network to the SCADA and cloud layers — is the backbone of transparent, connected manufacturing.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, drives, PLCs, and upper-level systems operate in silos, unable to share operational data in real time. The Allen-Bradley 320087-A06 directly addresses this challenge by providing a standardized, network-ready communication interface within the PowerFlex drive platform.

In facilities where legacy drives communicate over RS-485 or DH-485 while newer systems use EtherNet/IP, the 320087-A06 enables the PowerFlex drive to participate in both communication environments, eliminating the protocol fragmentation that leads to blind spots in production monitoring. Operators gain full visibility into drive performance parameters — including load trends, fault histories, and energy consumption — directly from their SCADA or HMI workstations, without requiring manual inspection of individual drive keypads.

Remote diagnostics capabilities enabled by the 320087-A06’s network integration allow maintenance engineers to identify developing faults — such as overcurrent conditions, thermal overloads, or encoder feedback errors — before they escalate into unplanned downtime. Alarm notifications are automatically routed through the control network to the SCADA alarm management system, triggering maintenance workflows and reducing mean time to repair (MTTR). For multi-site operations, centralized remote monitoring of all PowerFlex drives equipped with 320087-A06 boards provides a unified view of drive health across geographically distributed production facilities.

System scalability is another key advantage. As production lines expand, additional PowerFlex drives with 320087-A06 boards can be added to the EtherNet/IP network without architectural changes, supporting modular factory growth. Each new drive node is automatically discoverable by the ControlLogix or CompactLogix PLC, reducing commissioning time and ensuring consistent data integration from day one.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 320087-A06 support for SCADA and HMI integration?
The 320087-A06 supports EtherNet/IP as the primary industrial Ethernet protocol for integration with FactoryTalk View SE SCADA and PanelView HMI systems. It also maintains compatibility with DeviceNet and DH-485 for legacy system connectivity, ensuring that PowerFlex drives equipped with this board can participate in both modern and legacy Rockwell Automation control architectures without additional protocol converters.

Q2: How does the 320087-A06 contribute to network stability in high-cycle production environments?
The 320087-A06 is designed to maintain deterministic communication under high-cycle, high-load conditions typical of continuous manufacturing processes. Its internal communication logic prioritizes drive status and fault data transmission, ensuring that critical operational parameters are always available to the PLC and SCADA layers even during peak network traffic periods. When deployed with a Stratix managed switch configured for EtherNet/IP QoS, communication latency is minimized to sub-millisecond levels.

Q3: Can the 320087-A06 be integrated into an existing PowerFlex installation without drive replacement?
Yes. The 320087-A06 is a drop-in replacement board for compatible PowerFlex drive models. It can be installed into existing drives in the field without requiring full drive replacement, making it a cost-effective solution for upgrading communication capabilities or restoring failed drives to full operational status. All units supplied by ZYPLC are pre-tested and verified prior to shipment.

Q4: What warranty and quality assurance does ZYPLC provide for the 320087-A06?
Every Allen-Bradley 320087-A06 supplied by ZYPLC carries a 12-month warranty covering manufacturing defects and functional failures. Each unit undergoes outgoing inspection and functional verification before shipment. In-stock units are available for immediate dispatch, with global logistics support to minimize lead times for urgent maintenance and production continuity requirements.

—
