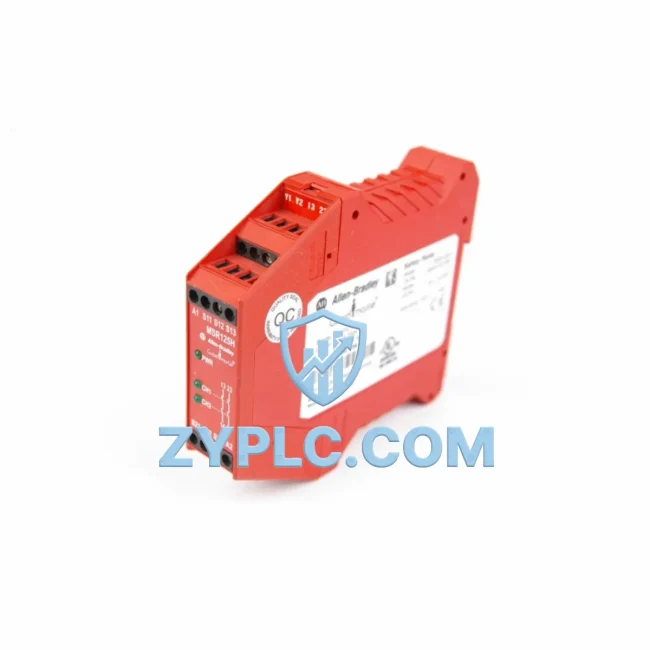

Allen-Bradley 440R-D23166 Safety Relay Guardmaster MSR125H

Allen-Bradley 440R-D23166 MSR125H: Industrial Safety Data Link for Guardmaster Systems

The Allen-Bradley 440R-D23166, commercially designated as the MSR125H, is a Guardmaster series dual-channel safety relay engineered for mission-critical industrial safety networks. Operating at 24V DC and designed for DIN-rail mounting, this safety relay serves as a foundational node in the safety data chain — bridging field-level safety devices such as emergency stop buttons, light curtains, safety door switches, and two-hand control stations with upstream PLC safety controllers and SCADA supervisory systems. In smart factory environments where machine safety, real-time status feedback, and network transparency are non-negotiable, the 440R-D23166 delivers the reliable dual-channel monitoring and forced-guided relay output architecture that modern industrial safety standards demand.

Network Communication Table

Connected Automation Data Flow

In a fully integrated Guardmaster safety architecture, the 440R-D23166 MSR125H sits at the intersection of field-level safety sensing and controller-level decision logic. The data flow begins at the field device layer: safety light curtains such as the Allen-Bradley GuardShield 450L series, or safety door switches from the 440G Trojan series, feed dual-channel input signals directly into the 440R-D23166. The relay evaluates these signals against its internal safety logic and, upon confirmation of a safe state, closes its forced-guided output contacts to enable downstream machine motion.

These output signals are then read by a Allen-Bradley GuardLogix 5580 safety PLC or a CompactLogix 5380 controller equipped with a 1734-IB8S safety I/O module from the POINT Guard I/O series. The safety PLC aggregates status data from multiple 440R-series safety relays — including the 440R-EM4R2 and 440R-S12R2 — and transmits consolidated safety state information over an EtherNet/IP network backbone to the plant-level SCADA system or FactoryTalk View SE HMI. This allows operators to monitor machine safety status, acknowledge faults, and review safety event logs in real time from a centralized control room.

For facilities deploying a distributed safety architecture, the 440R-D23166 can be grouped with Allen-Bradley SmartGuard 600 safety controllers, which act as local safety network managers before forwarding aggregated data upstream via DeviceNet Safety or EtherNet/IP to the main control platform. In multi-zone production lines, this topology allows each safety zone — press, conveyor, robotic cell — to maintain independent safety integrity while contributing to a unified plant-wide safety data layer visible through FactoryTalk Historian or third-party SCADA platforms.

Edge connectivity is further extended through Rockwell Automation’s FactoryTalk Edge Gateway, which can pull safety relay status data from the GuardLogix controller and push it to cloud-based analytics platforms for predictive maintenance and OEE monitoring. This end-to-end data chain — from the 440R-D23166 contact output, through the 1734-IB8S I/O module, across the EtherNet/IP network, into FactoryTalk View SE, and up to the edge gateway — exemplifies the connected safety architecture that Industry 4.0 smart factories require.

Solving Data Isolation in Industrial Safety Sites

One of the most persistent challenges in industrial safety system integration is the fragmentation between legacy hardwired safety circuits and modern networked control platforms. Many facilities operate with safety relays that provide no status feedback beyond a local LED indicator, creating data islands where safety events — nuisance trips, contact wear, input channel faults — go unrecorded and unanalyzed until a production stoppage forces manual investigation.

The Allen-Bradley 440R-D23166 MSR125H addresses this by serving as a structured, diagnostics-capable safety relay whose output states can be read by upstream safety PLCs and surfaced through SCADA and HMI systems. When integrated with a GuardLogix controller and FactoryTalk View SE, every safety relay trip event becomes a timestamped, logged data point — enabling maintenance teams to identify recurring fault patterns, schedule predictive interventions, and reduce unplanned downtime.

For facilities undergoing digital transformation, the 440R-D23166 provides a cost-effective bridge between existing hardwired safety devices and the EtherNet/IP-based smart factory infrastructure. Rather than replacing entire safety circuits, engineers can retain proven field devices — E-stop buttons, rope pulls, safety mats — while gaining network visibility through the relay’s integration with safety PLCs. This approach accelerates the path to production line transparency, remote monitoring capability, and compliance with IEC 62443 industrial cybersecurity frameworks, without the capital expenditure of a full safety system overhaul.

System scalability is equally addressed: as production lines expand, additional 440R-series safety relays can be added to existing DIN-rail panels and integrated into the GuardLogix safety program with minimal engineering effort, ensuring that safety network capacity grows in step with operational requirements.

Industrial Connectivity FAQ

Q1: Does the Allen-Bradley 440R-D23166 MSR125H support EtherNet/IP communication directly?
The 440R-D23166 is a hardwired dual-channel safety relay and does not have a native EtherNet/IP port. Network connectivity is achieved by reading its output contacts through a safety I/O module — such as the Allen-Bradley 1734-IB8S POINT Guard I/O — connected to a GuardLogix or CompactLogix Safety PLC, which then communicates over EtherNet/IP to SCADA and HMI systems.

Q2: What is the response time and safety performance of the 440R-D23166?
The MSR125H is rated for Safety Category 4 / Performance Level e (PLe) per EN ISO 13849-1, making it suitable for the highest-risk machine safety applications. Response times are within the millisecond range, ensuring that safety output contacts open rapidly upon detection of an input channel fault or E-stop activation, minimizing risk exposure in high-speed automated processes.

Q3: Is the 440R-D23166 compatible with third-party safety devices and non-Rockwell PLCs?
Yes. As a hardwired safety relay, the 440R-D23166 accepts standard dual-channel dry contact or OSSD (Output Signal Switching Device) inputs from any compliant safety device, regardless of manufacturer. Its output contacts can similarly be wired into any PLC safety I/O system. However, for full diagnostic integration and network transparency, pairing with Allen-Bradley GuardLogix or SmartGuard controllers is recommended.

Q4: What does the 12-month warranty cover, and how is the unit tested before shipment?
Every Allen-Bradley 440R-D23166 MSR125H supplied by ZYPLC undergoes pre-shipment functional testing, including dual-channel input verification, output contact continuity checks, and power-on self-test validation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support for integration queries, replacement coordination, and compatibility verification with your existing Guardmaster or GuardLogix safety architecture.

—
