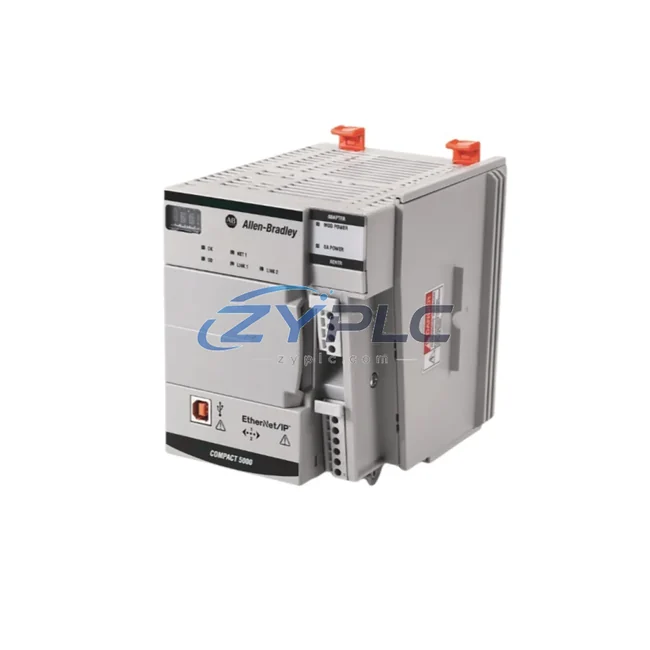

Allen-Bradley 5069-AEN2TR Industrial Network Interface for Compact 5000 Systems

Allen-Bradley 5069-AEN2TR: Industrial Data Link for Compact 5000 Smart Factory Networks

The Allen-Bradley 5069-AEN2TR is a dual-port EtherNet/IP communication adapter engineered for the Compact 5000 I/O platform, delivering deterministic, high-speed data exchange between field-level devices and upper-layer control systems. In modern smart factory environments where every millisecond of latency and every byte of process data matters, the 5069-AEN2TR serves as the critical bridge that connects distributed I/O modules to CompactLogix and ControlLogix controllers over a resilient, ring-topology EtherNet/IP network. Its dual-port design supports Device Level Ring (DLR) architecture, enabling media redundancy without additional switches — a decisive advantage for continuous-process industries where unplanned downtime carries significant operational cost.

From the moment a sensor signal is captured at the field level — whether from a proximity switch wired into a 5069-IB16 digital input module or an analog transmitter feeding a 5069-IF8 analog input module — the 5069-AEN2TR ensures that data is packetized, timestamped, and delivered to the controller with sub-millisecond cycle consistency. This tight integration with the Compact 5000 backplane means that I/O modules such as the 5069-OB16 digital output module and the 5069-OW4I relay output module respond to controller commands with the precision required for coordinated motion, safety interlocks, and high-speed packaging lines.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the 5069-AEN2TR’s role requires tracing the full data path from field device to enterprise system. At the lowest layer, field instruments — pressure transmitters, flow meters, temperature sensors — deliver analog and digital signals to Compact 5000 I/O modules mounted on the same chassis as the adapter. The 5069-AEN2TR aggregates this I/O data and transmits it upstream over EtherNet/IP to a CompactLogix 5380 controller (such as the 5069-L306ERM), which executes the ladder logic or structured text program governing machine behavior.

For installations requiring expanded I/O reach across a production floor, the 5069-AEN2TR enables remote I/O drops to be distributed along a DLR ring. A single ring can incorporate multiple adapter nodes — each hosting its own bank of 5069-series modules — while the controller maintains a single, unified I/O tree. This architecture eliminates the need for a dedicated managed switch at every node, reducing both hardware cost and network configuration complexity. Where a managed switch is still required for uplink aggregation, the 1783-BMS10CGL Stratix managed switch integrates seamlessly into the same EtherNet/IP fabric.

At the HMI layer, a PanelView Plus 7 terminal running FactoryTalk View ME communicates directly with the CompactLogix controller over EtherNet/IP, displaying real-time process values sourced from the 5069-AEN2TR’s connected I/O. For plant-wide SCADA visibility, FactoryTalk View SE or a third-party platform such as Ignition by Inductive Automation polls the controller via OPC-UA or EtherNet/IP, aggregating data from multiple 5069-AEN2TR nodes into unified dashboards and historian databases. This end-to-end data chain — from sensor to SCADA — is what transforms isolated machine data into actionable production intelligence.

Drive integration follows the same EtherNet/IP backbone. PowerFlex 525 and PowerFlex 755 variable frequency drives connect to the same network segment, allowing the CompactLogix controller to issue speed references, read drive fault codes, and log energy consumption data — all without additional fieldbus wiring. When a drive fault occurs, the alarm propagates through the EtherNet/IP network to the SCADA system within one scan cycle, enabling operators to respond before a minor fault escalates into a production stoppage. The 5069-AEN2TR’s DLR capability ensures that even a single cable break in the ring does not interrupt this alarm path, maintaining network continuity during fault conditions.

For safety-critical applications, the 5069-AEN2TR is compatible with GuardLogix 5580 safety controllers, enabling standard and safety I/O to share the same EtherNet/IP infrastructure. Safety modules such as the 5069-IB8S safety digital input module communicate over the same adapter, with CIP Safety protocol ensuring that safety data integrity is maintained end-to-end. This unified architecture reduces panel wiring, simplifies network management, and supports IEC 62443 cybersecurity compliance frameworks increasingly required in industrial automation projects.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where machines, controllers, and systems operate on incompatible protocols, preventing unified monitoring and coordinated control. The 5069-AEN2TR directly addresses this challenge by standardizing field-level I/O communication on EtherNet/IP, the most widely adopted industrial Ethernet protocol in discrete and hybrid manufacturing.

Legacy installations often combine multiple fieldbus protocols — DeviceNet, ControlNet, Modbus RTU — each requiring its own gateway, cabling infrastructure, and engineering expertise. By migrating remote I/O to the 5069-AEN2TR and the Compact 5000 platform, engineers consolidate these disparate data streams onto a single EtherNet/IP backbone. Protocol translation for legacy devices can be handled upstream by a dedicated gateway such as the 1203-USB or a third-party EtherNet/IP-to-Modbus gateway, feeding translated data into the same controller that manages the 5069-AEN2TR nodes.

Remote monitoring and diagnostics are equally transformed. With the 5069-AEN2TR’s embedded web server and EtherNet/IP diagnostic objects, maintenance engineers can query module health, connection status, and I/O fault history from any networked workstation — without physical access to the panel. This capability is foundational to predictive maintenance programs, where early detection of I/O faults, communication retries, or power anomalies prevents unplanned downtime. Combined with FactoryTalk AssetCentre for audit trail logging and FactoryTalk Remote Access for secure remote sessions, the 5069-AEN2TR becomes a node in a comprehensive industrial cybersecurity and remote operations architecture.

Production line transparency — the ability to see real-time OEE, cycle counts, reject rates, and energy consumption at the machine level — depends on reliable, low-latency data from the field. The 5069-AEN2TR’s deterministic EtherNet/IP communication ensures that controller scan times are not compromised by network jitter, maintaining the data quality required for accurate MES and ERP integration. As production volumes grow and new machine cells are added, the DLR ring topology allows additional 5069-AEN2TR nodes to be inserted into the ring without reconfiguring the entire network — a scalability advantage that protects the initial infrastructure investment.

Industrial Connectivity FAQ

Q1: What is the typical communication latency of the 5069-AEN2TR in a DLR ring topology?
In a properly configured DLR ring, the 5069-AEN2TR supports Requested Packet Intervals (RPI) as low as 1 ms for time-critical I/O, with typical end-to-end latency well under 10 ms across a standard plant-floor ring of up to 50 nodes. Network performance depends on switch quality, cable length, and controller scan time configuration.

Q2: Is the 5069-AEN2TR compatible with third-party EtherNet/IP controllers and SCADA systems?
Yes. Because the 5069-AEN2TR implements the open CIP (Common Industrial Protocol) standard over EtherNet/IP, it is compatible with any EtherNet/IP Class 1 (I/O messaging) or Class 3 (explicit messaging) client. Third-party SCADA platforms such as Ignition, Wonderware, and Citect can communicate with the adapter’s connected I/O via the upstream CompactLogix controller using OPC-UA or EtherNet/IP drivers.

Q3: How does the DLR topology maintain network stability during a cable fault?
The Device Level Ring protocol continuously monitors ring integrity. Upon detecting a break, the DLR supervisor (typically the controller or a dedicated ring supervisor node) reconfigures the ring into a linear topology within milliseconds, maintaining all I/O connections without controller program interruption. This self-healing behavior eliminates the single point of failure inherent in linear EtherNet/IP topologies.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 5069-AEN2TR?
All 5069-AEN2TR units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and communication failures. Each unit undergoes pre-shipment functional testing — including EtherNet/IP connection establishment, DLR ring participation verification, and I/O module communication checks — before dispatch. Availability is confirmed via RFQ for same-week shipment globally, with full documentation and configuration support provided by our technical team.
