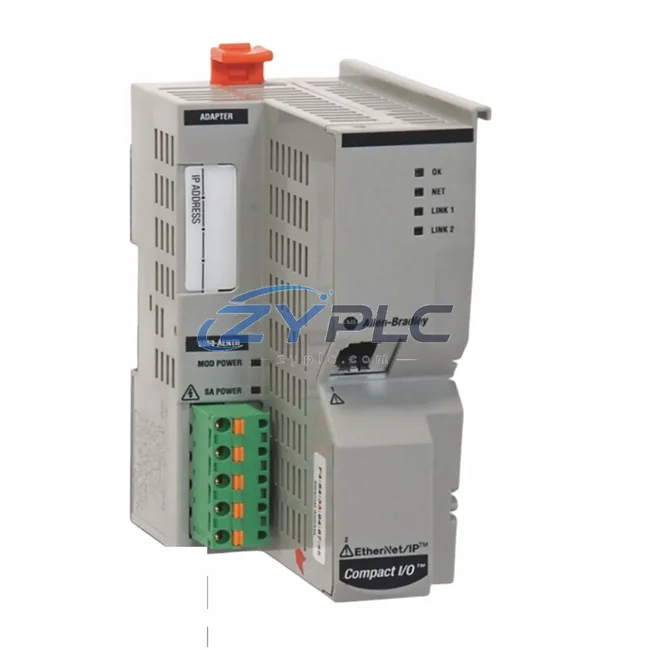

Allen-Bradley 5069-AENTR EtherNet/IP Adapter Compact 5000

Allen-Bradley 5069-AENTR EtherNet/IP Adapter for Compact 5000 Automation

The Allen-Bradley 5069-AENTR is a dual-port EtherNet/IP adapter module engineered for the Compact 5000 I/O platform, delivering high-speed, deterministic communication between field-level I/O and the control layer. In modern manufacturing environments where energy costs and equipment utilization directly impact profitability, the 5069-AENTR plays a central role in enabling real-time data exchange that drives smarter energy decisions across the production line.

Unlike conventional adapter modules that simply pass data, the 5069-AENTR supports Device Level Ring (DLR) topology, providing network redundancy that eliminates single points of failure and reduces unplanned downtime — one of the most significant hidden energy costs in industrial operations. When a line stops unexpectedly, energy continues to be consumed by idle drives, cooling systems, and auxiliary equipment. By maintaining continuous communication integrity, the 5069-AENTR helps keep production moving and operating load purposeful.

Product Specification Table

System Compatibility and Application

The 5069-AENTR sits at the communication backbone of an industrial control architecture. In a typical Compact 5000 deployment, the adapter connects a bank of I/O modules — such as the 5069-IB16 digital input module and the 5069-OB16 digital output module — to a CompactLogix 5380 controller running Logix 5000 firmware. This controller executes maintenance planning logic: monitoring load cycles, adjusting output timing, and coordinating with variable frequency drives (VFDs) to match motor speed to actual process demand rather than running at fixed full speed.

On the drive side, integration with PowerFlex 525 or PowerFlex 755 AC drives via EtherNet/IP allows the controller to dynamically command speed references and read back real-time power consumption data. This closed-loop approach — where the 5069-AENTR facilitates the data highway — can help restore stable operation when a compatible replacement is required.

For power quality monitoring, the architecture often incorporates a PowerMonitor 5000 unit connected on the same EtherNet/IP network. This device captures voltage, current, power factor, and harmonic distortion data, feeding it back through the 5069-AENTR’s network segment to the controller and upstream to a FactoryTalk View SE HMI station. Operators gain a live dashboard of operating load per production zone, enabling informed decisions about load scheduling and shift-based energy budgeting.

The 5069-AENTR also supports integration with 5069-HSC high-speed counter modules for encoder-based position feedback on servo axes, and works alongside Kinetix 5500 servo drives for precision motion control in packaging and assembly lines. When servo axes are tuned correctly and coordinated through the EtherNet/IP network, unnecessary acceleration and deceleration cycles are eliminated, directly reducing peak power demand and mechanical wear.

For safety-integrated systems, the adapter is compatible with 5069-IB8S safety input modules, enabling SIL 2 / PLd safety functions without requiring a separate safety network. This consolidation reduces hardware complexity, lowers installation costs, and simplifies the energy footprint of the control panel.

Maintenance and Replacement Notes

In automotive body welding lines, the 5069-AENTR enables sub-millisecond I/O response times that allow the CompactLogix controller to precisely time weld gun activation, robot motion, and conveyor indexing. By eliminating unnecessary dwell time between operations, the line achieves tighter cycle times without increasing installed power capacity. Energy per unit produced decreases as throughput improves.

In food and beverage processing, where washdown environments and continuous operation are standard, the 5069-AENTR’s DLR topology ensures that a single cable fault does not interrupt production. Maintenance teams can replace a damaged network segment during operation, avoiding the unplanned downtime of a full line restart — which typically involves purging, re-heating, and re-pressurizing process equipment.

In water treatment and pumping stations, the adapter connects pressure and flow sensors through analog I/O modules to the controller, which then commands PowerFlex VFDs to adjust pump speed in real time. This eliminates the unplanned downtime of throttle valves and fixed-speed pumping, a well-documented source of inefficiency in municipal and industrial water systems.

Predictive maintenance is another key maintenance planning lever enabled by the 5069-AENTR. By continuously streaming vibration data from smart sensors, motor current signatures from drive feedback, and temperature readings from thermal I/O modules, the Logix controller can detect early signs of bearing wear, insulation degradation, or mechanical imbalance. Addressing these issues before failure avoids both unplanned downtime and the energy spikes associated with degraded equipment running under increased load.

Every unit of the 5069-AENTR supplied by ZYPLC undergoes full functional testing prior to shipment, including communication handshake verification, DLR failover testing, and power consumption validation. Stock is maintained for fast dispatch, and all units are covered by a warranty terms confirmed during quotation from the date of delivery.

Product Sourcing FAQ

Q1: How does the 5069-AENTR contribute to operational stability on the production line?
The 5069-AENTR enables real-time, deterministic communication between I/O modules and the Logix controller, allowing the control system to respond instantly to process changes. This precision reduces over-cycling of drives and actuators, eliminates unnecessary idle operating load, and supports closed-loop maintenance planning strategies such as demand-based motor speed control via integrated VFDs.

Q2: Is the 5069-AENTR compatible with existing CompactLogix and ControlLogix systems?
Yes. The 5069-AENTR is fully compatible with the Logix 5000 controller family, including CompactLogix 5370 and 5380 series and ControlLogix 5580 series. It communicates via standard EtherNet/IP and is configured using Rockwell Automation’s Studio 5000 Logix Designer software, making integration into existing architectures straightforward without requiring additional gateways or protocol converters.

Q3: Can the 5069-AENTR replace an older 1734-AENTR or 1756-EN2T adapter in an upgrade project?
The 5069-AENTR is specific to the Compact 5000 I/O platform and is not a direct drop-in replacement for 1734 POINT I/O or 1756 ControlLogix backplane adapters. However, in system modernization projects, it is the recommended adapter for new Compact 5000 I/O banks. Migration from older platforms should be planned with updated I/O mapping in Studio 5000 to ensure signal continuity and energy baseline recalibration.

Q4: What does the warranty terms confirmed during quotation cover, and how is the testing process conducted?
All 5069-AENTR units supplied by ZYPLC are tested prior to shipment for communication integrity, DLR topology failover, and power draw within specification. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions from the date of delivery. In the event of a warranty claim, ZYPLC provides technical support and replacement coordination to minimize production impact.
