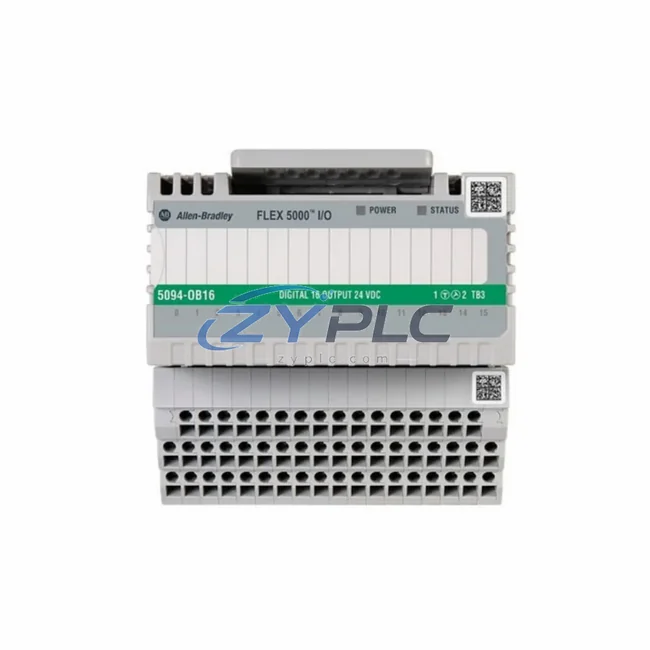

Allen-Bradley 5094-OB16 Digital Output for Flex 5000

Allen-Bradley 5094-OB16 Digital Output for Flex 5000: Compatibility and Replacement Notes

The Allen-Bradley 5094-OB16 is a 16-point 24V DC digital output module engineered for deployment within the Flex 5000 I/O platform — Rockwell Automation’s EtherNet/IP-native distributed I/O architecture designed for high-density, high-availability industrial control environments. Rather than functioning as a standalone component, the 5094-OB16 is purpose-built to operate as a coordinated node within a layered automation system, where its role spans the I/O layer, the execution layer, and the communication backbone simultaneously. Understanding its value requires examining how it integrates across control, network, power, and field device layers to deliver consistent, scalable, and maintainable system performance.

In a typical Flex 5000 deployment, the 5094-OB16 is mounted on a 5094-IB16 or mixed-signal backplane assembly alongside input modules such as the 5094-IB16 (16-point 24V DC digital input) and analog modules like the 5094-IF8 (8-channel analog input). The backplane itself is powered by a dedicated 5094-PA4 or 5094-PB4 power supply module, which provides isolated 24V DC rail power to the entire I/O bank. This power architecture ensures that field-side output switching does not introduce noise into the controller-side logic bus — a critical design consideration in process control and motion-adjacent applications where signal integrity directly affects system reliability.

At the control layer, the 5094-OB16 communicates exclusively over EtherNet/IP using the Common Industrial Protocol (CIP), coordinated by a ControlLogix 5580 or CompactLogix 5380 series CPU. The controller manages output state via cyclic I/O messaging, with the 5094-OB16 appearing as a standard CIP connection endpoint within the I/O tree. This architecture eliminates the need for proprietary fieldbus adapters and allows the output module to participate in the same network topology as EtherNet/IP-capable drives, safety modules, and HMI panels — including PanelView 5510 operator terminals that provide real-time output status visualization to plant operators.

From a system architecture standpoint, the 5094-OB16 is particularly well-suited for applications requiring deterministic output response times and high channel density within a compact DIN-rail footprint. Its 16 sourcing outputs, each rated at 0.5A continuous, support a wide range of field devices including solenoid valves, pilot lights, relay coils, and motor starter contactors. When paired with 5094-IB16 input modules and a 1492-CABLE wiring system or 1492-IFM interface module, the wiring infrastructure becomes modular and pre-terminated — significantly reducing commissioning time and the risk of field wiring errors during initial startup or future maintenance cycles.

Redundancy and fault tolerance are addressed at multiple levels within the Flex 5000 architecture. The 5094-OB16 supports output fault state configuration, allowing engineers to define safe-state behavior — hold last state, turn all outputs off, or apply a user-defined pattern — in the event of a communication loss or controller fault. This capability is essential in applications such as chemical dosing systems, conveyor interlocks, and HVAC damper control, where undefined output behavior during a fault condition could result in process upsets or equipment damage. When combined with a redundant EtherNet/IP ring topology using a Stratix 5700 managed switch, the overall system achieves sub-millisecond failover without requiring output module replacement or reconfiguration.

For multi-zone manufacturing lines, the 5094-OB16 enables distributed I/O strategies where output modules are located close to field devices rather than centralized in a main control panel. This reduces cable runs, simplifies troubleshooting, and allows zone-level isolation during maintenance without shutting down the entire production line. In combination with 5094-IB16 input modules and 5094-IF8 analog modules at each zone, the Flex 5000 system creates a self-contained I/O cluster that reports back to the central ControlLogix or CompactLogix controller over a single EtherNet/IP drop — a topology that scales linearly as production capacity expands.

Long-term maintainability is a defining advantage of the 5094-OB16 within the Flex 5000 ecosystem. Module replacement is tool-free and hot-swappable in supported configurations, meaning field technicians can swap a failed output module without powering down adjacent modules or interrupting the EtherNet/IP network. Configuration data is stored in the controller project file and automatically downloaded to the replacement module upon reconnection — eliminating manual reconfiguration and reducing mean time to repair (MTTR) to minutes rather than hours. This characteristic is particularly valuable in 24/7 continuous process environments such as water treatment, oil and gas compression, and pharmaceutical batch manufacturing.

All 5094-OB16 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring that your system architecture investment is protected from the point of delivery through the critical commissioning and early-operation phases. Our inventory is sourced from authorized distribution channels and subject to pre-shipment functional verification, providing confidence in module authenticity and operational readiness. Global shipping is available with lead times optimized for urgent project timelines.

Product Specification Table

System Compatibility Notes

The 5094-OB16 achieves its full architectural value when deployed as part of a coordinated Flex 5000 system. A complete I/O bank typically includes the 5094-IB16 digital input module for field signal acquisition, the 5094-IF8 analog input module for process variable monitoring, and the 5094-OF8 analog output module for continuous control signals such as valve positioning or variable speed drive references. The 5094-PA4 power supply module provides stable 24V DC power to the entire backplane, while the 5094-AENTR EtherNet/IP adapter (where applicable in legacy Flex I/O migration projects) bridges the I/O bank to the plant network.

At the controller level, a ControlLogix 5580 CPU manages the I/O tree and executes ladder logic or function block programs that drive the 5094-OB16 output states. The PanelView 5510 HMI provides operator-level visibility into output status, alarm conditions, and manual override capability — completing the human-machine interface layer. For safety-critical applications, a GuardLogix 5580 controller can supervise the standard 5094-OB16 outputs within a safety-rated architecture, using hardwired safety relays or 5094-series safety I/O modules to enforce SIL 2 or PLd safety functions at the execution layer.

Network infrastructure is provided by Stratix 5700 or Stratix 2500 managed switches, which support Device Level Ring (DLR) topology for EtherNet/IP resilience. This ensures that a single cable fault does not interrupt communication between the controller and the 5094-OB16, maintaining output state integrity during network maintenance or unexpected cable damage events.

Industrial Application Notes

The 5094-OB16 is deployed across a broad range of industrial sectors where reliable digital output control is a system-critical requirement. In manufacturing and assembly automation, the module drives solenoid valves, pneumatic actuators, and conveyor motor starters across multi-zone production lines, with each zone’s I/O cluster managed independently to support zone-level maintenance isolation. In power generation and electrical distribution, the module controls switchgear pilot circuits, breaker trip coils, and annunciator panels within substation automation systems built on ControlLogix platforms.

In water and wastewater treatment, the 5094-OB16 manages pump motor starters, valve actuators, and chemical dosing solenoids across distributed lift stations and treatment process areas, where the module’s fault-state configuration ensures safe process shutdown during communication loss. In oil and gas compression and pipeline applications, the module controls emergency shutdown (ESD) valve pilots and compressor auxiliary systems within hazardous area control panels, leveraging its wide operating temperature range and robust EtherNet/IP communication for remote monitoring. In pharmaceutical and food processing batch systems, the module’s deterministic output response and hot-swap capability support continuous production with minimal planned downtime during module servicing.

Product Compatibility FAQ

Q1: Is the 5094-OB16 compatible with both ControlLogix and CompactLogix controllers?
Yes. The 5094-OB16 communicates over EtherNet/IP using the CIP protocol and is compatible with ControlLogix 5580, CompactLogix 5380, and GuardLogix 5580 series controllers. It is configured as a standard EtherNet/IP I/O device within Studio 5000 Logix Designer and does not require a separate adapter module when used with a Flex 5000 backplane that includes an integrated EtherNet/IP port. Verify your Studio 5000 version supports the 5094-OB16 Add-On Profile (AOP) for full diagnostic integration.

Q2: Can the 5094-OB16 be replaced without shutting down adjacent modules in the same backplane?
In configurations where the Flex 5000 backplane supports hot-swap operation, the 5094-OB16 can be removed and replaced without powering down adjacent I/O modules or interrupting the EtherNet/IP network connection. Upon reinsertion, the controller automatically downloads the module configuration from the project file, restoring normal operation within seconds. This capability is particularly valuable in continuous process environments where planned downtime is constrained. Confirm hot-swap support with your specific backplane and power supply combination prior to field replacement.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability?
All 5094-OB16 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains strategic inventory of Flex 5000 series modules — including the 5094-OB16, 5094-IB16, 5094-IF8, and 5094-PA4 — to support both immediate project requirements and long-term spare parts programs. For warranty claims, replacement logistics, or volume procurement inquiries, contact our technical sales team at plc.sales@zyplc.com or +86 19859288691.
