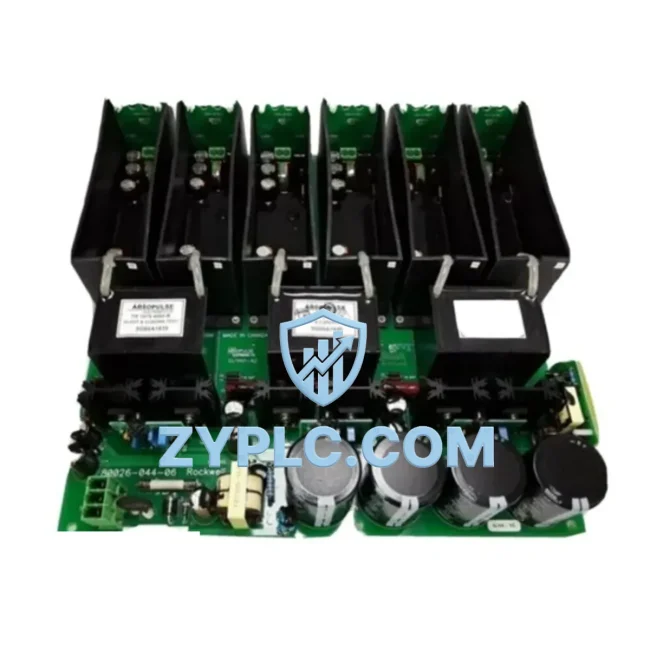

Allen-Bradley 80026-044-06-R Energy-Saving Power Supply

Allen-Bradley 80026-044-06-R Energy-Saving Power Supply for Optimized 8000 Series Automation

The Allen-Bradley 80026-044-06-R is a high-efficiency power supply module engineered for the 8000 Series industrial automation platform. Designed to meet the demanding energy management requirements of modern manufacturing environments, this module delivers stable, regulated DC power to control systems while minimizing conversion losses and reducing overall plant energy consumption. Whether deployed in continuous process lines, discrete manufacturing cells, or hybrid automation architectures, the 80026-044-06-R plays a central role in sustaining reliable, energy-aware operations across the full control hierarchy.

In industrial facilities where energy costs represent a significant share of operating expenditure, the quality and efficiency of power supply infrastructure directly impacts the bottom line. The 80026-044-06-R addresses this by providing tightly regulated output voltage with low ripple, ensuring that downstream components — including programmable logic controllers, servo drives, and I/O expansion modules — receive clean, consistent power that supports optimal performance without unnecessary thermal dissipation or energy waste.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 80026-044-06-R is most effective when integrated as part of a coherent, energy-aware automation architecture. In a typical 8000 Series control cabinet, this power supply module feeds regulated voltage to the Allen-Bradley SLC 500 processor or a ControlLogix L-series CPU, which orchestrates the logic execution for the entire production cell. The processor’s scan cycle efficiency is directly dependent on the stability of its power rail — any voltage sag or ripple introduced by an underperforming supply can cause erratic I/O behavior, false fault conditions, and unnecessary drive trips that waste both time and energy.

On the drive side, the 80026-044-06-R supports the control circuitry of Allen-Bradley PowerFlex 40 and PowerFlex 70 variable frequency drives, which regulate motor speed and torque in response to real-time load demands. By ensuring the drive control boards receive clean, stable power, the module helps these VFDs maintain their energy-saving operating modes — including sleep mode, energy optimization mode, and dynamic braking — without interruption. This is particularly valuable in pump and fan applications where affinity law savings of up to 50% are achievable through precise speed control.

For servo motion applications, the module provides auxiliary power to Allen-Bradley Kinetix 300 or Kinetix 5500 servo drives, which depend on stable low-voltage rails for encoder feedback processing, safety monitoring, and communication with the motion controller. Unstable auxiliary power in servo systems leads to position errors, increased cycle times, and higher reject rates — all of which translate to wasted energy per good part produced.

At the I/O level, the 80026-044-06-R powers 1746 I/O modules and 1734 POINT I/O distributed I/O nodes, which collect field signals from sensors, limit switches, and transducers across the production line. Accurate I/O data is the foundation of any energy optimization strategy: without reliable signal acquisition, the PLC cannot make informed decisions about when to reduce motor speed, activate sleep modes, or shed non-critical loads during low-demand periods.

For energy monitoring and power quality analysis, the module supports the control infrastructure connected to Allen-Bradley PowerMonitor 5000 energy meters, which measure real-time kWh consumption, power factor, harmonic distortion, and demand peaks at the panel level. The data collected by these meters feeds into the FactoryTalk Energy Manager platform, enabling plant engineers to identify inefficient equipment, benchmark energy performance across shifts, and implement targeted reduction strategies. The 80026-044-06-R, as the foundational power infrastructure component, ensures that all monitoring and control devices in this ecosystem operate without interruption.

Communication between the PLC, drives, HMI, and energy monitoring systems is handled via EtherNet/IP and DeviceNet protocols, both of which are natively supported by the 8000 Series platform. The Allen-Bradley PanelView Plus 7 HMI provides operators with real-time visibility into energy consumption trends, drive efficiency metrics, and alarm states — enabling faster response to energy anomalies and reducing the mean time to repair for power-related faults.

Power Optimization in Real Production Lines

In real production environments, the impact of a reliable, high-efficiency power supply module extends far beyond simply keeping the lights on. When the 80026-044-06-R is installed in a packaging line, for example, it ensures that the servo indexing drives maintain precise positioning throughout each machine cycle. Consistent positioning reduces the number of rejected packages per shift, which directly lowers the energy cost per good unit produced — a key metric in lean manufacturing energy accounting.

In conveyor and material handling systems, the module supports the control circuitry of multiple PowerFlex drives operating in coordinated speed control mode. When one section of the conveyor slows due to a downstream bottleneck, the PLC can command upstream drives to reduce speed proportionally, cutting motor energy consumption during the delay. This coordinated response is only possible when the control system’s power infrastructure is stable and responsive — a role the 80026-044-06-R fulfills reliably.

For facilities implementing predictive maintenance programs, the stability of the power supply module is critical. Vibration sensors, thermal cameras, and current signature analyzers connected to the 1734 POINT I/O system continuously monitor motor and drive health. If the power supply introduces noise into the signal chain, these measurements become unreliable, leading to missed fault signatures and unexpected downtime. The 80026-044-06-R’s low-noise output preserves signal integrity, ensuring that predictive maintenance algorithms receive accurate data and can generate actionable maintenance recommendations before failures occur.

Every unit of the 80026-044-06-R supplied by ZYPLC undergoes full functional testing prior to shipment, including output voltage verification, load regulation testing, and ripple measurement. This pre-shipment testing protocol ensures that the module performs to specification from the moment it is installed, eliminating the energy waste and production disruption associated with infant-failure returns. All units are covered by a 12-month warranty, and ZYPLC maintains ready stock to support fast delivery for both planned maintenance replacements and emergency breakdown situations.

Energy Optimization FAQ

Q1: How does the 80026-044-06-R contribute to energy savings in an 8000 Series system?
The module provides stable, regulated DC power with low conversion losses, ensuring that all connected control devices — PLCs, drives, I/O modules, and HMIs — operate at their designed efficiency points. By eliminating power quality issues such as voltage sag and ripple, it prevents unnecessary drive trips and control faults that waste energy through unplanned restarts and idle running.

Q2: Is the 80026-044-06-R compatible with Allen-Bradley PowerFlex variable frequency drives?
Yes. The module is designed for the Allen-Bradley 8000 Series control platform, which is commonly deployed alongside PowerFlex 40, PowerFlex 70, and PowerFlex 755 drives. It provides the auxiliary control power required by these drives’ control boards, communication adapters, and safety modules.

Q3: What is the recommended replacement procedure for this power supply module?
Before replacement, de-energize the control cabinet and verify zero voltage with a calibrated meter. Remove the existing module, inspect the mounting rail and wiring terminals for damage, install the 80026-044-06-R, and reconnect all wiring per the original schematic. Power up the system and verify output voltage and load regulation before returning the line to production. ZYPLC recommends keeping one spare unit in inventory to minimize downtime during scheduled maintenance windows.

Q4: What does the 12-month warranty cover, and how is it supported?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. All units are tested before shipment to verify compliance with specification. In the event of a warranty claim, ZYPLC provides replacement or repair support. Contact our team at [email protected] or +86 19859288691 to initiate a warranty request.
