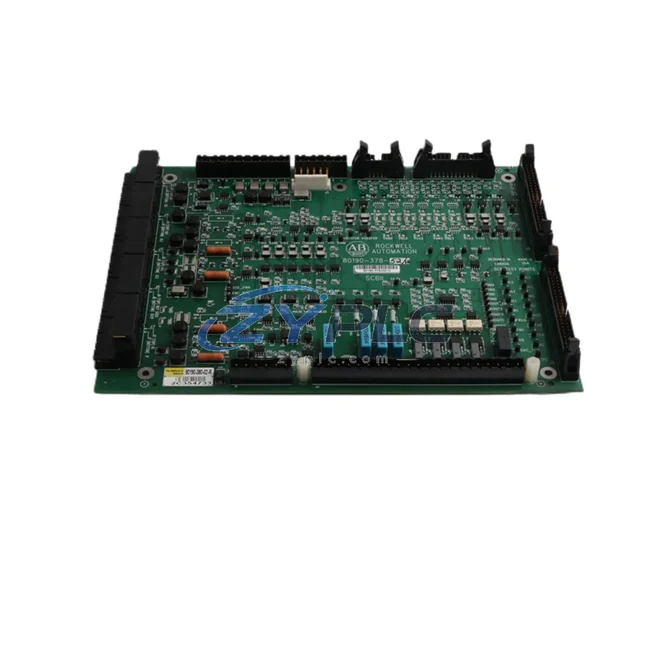

Allen-Bradley 80190-380-02-R Signal Conditioning Board for 1771 Systems

Allen-Bradley 80190-380-02-R Industrial Network Interface for 1771 Systems: Precision Signal Conditioning for Smart Factory Data Links

The Allen-Bradley 80190-380-02-R is a high-reliability Signal Conditioning Board engineered for the 1771 I/O chassis platform — one of the most widely deployed modular I/O architectures in discrete and process manufacturing environments. Designed to bridge field-level analog signals with the digital data backbone of a Rockwell Automation control system, the 80190-380-02-R plays a critical role in ensuring accurate, low-latency signal transmission from sensors and transducers to the PLC processor and upstream SCADA or MES layers. Whether deployed in a legacy retrofit or a greenfield smart factory project, this board delivers the signal integrity and protocol compatibility that modern industrial connectivity demands.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the Allen-Bradley 80190-380-02-R sits at the heart of the signal acquisition layer. Field instruments — including 4–20 mA pressure transmitters, RTD temperature sensors, and analog flow meters — feed raw signals into the 1771 I/O chassis. The 80190-380-02-R conditions these signals, filtering electrical noise and converting them to the precise voltage or current levels required by the 1771-IFE or 1771-IFM analog input modules seated in the same chassis.

Once conditioned, the data travels across the 1771 backplane to the PLC-5 processor — for example, a 1785-L40B or 1785-L80B — where ladder logic or function block programs execute real-time control decisions. The PLC-5 communicates upstream via a 1784-KTX Data Highway Plus (DH+) card or a 1771-ACN ControlNet adapter, forwarding process values to a Wonderware InTouch or FactoryTalk View SE SCADA/HMI system. Operators at the control room level gain live visibility into temperature, pressure, and flow trends without signal degradation or data loss.

For facilities running a hybrid architecture, the 80190-380-02-R integrates seamlessly alongside 1771-SDN DeviceNet Scanner modules, enabling the same chassis to simultaneously manage both analog field signals and DeviceNet-connected smart devices such as PowerFlex 40 or PowerFlex 700 variable frequency drives. This unified I/O approach reduces panel footprint and simplifies network topology, a key advantage when scaling production lines or adding new process loops.

Remote I/O nodes connected via 1771-ASB Remote I/O Adapter modules extend the data reach of the 80190-380-02-R’s conditioned signals to satellite control panels hundreds of meters from the main PLC rack. Combined with a 1747-SN Remote I/O Scanner in an SLC 500 system, this architecture supports distributed manufacturing cells while maintaining a single, coherent data namespace visible to the plant SCADA layer. Edge gateways — such as the Moxa MGate MB3180 or a Kepware KEPServerEX OPC-UA server — can then publish this real-time process data to cloud-based MES or ERP platforms, completing the vertical integration from sensor to enterprise.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation. Legacy 1771-based systems often coexist with newer EtherNet/IP or PROFIBUS networks, creating data silos that prevent plant-wide visibility. The Allen-Bradley 80190-380-02-R addresses this at the signal level: by ensuring that analog field data is accurately conditioned before it enters the digital control layer, it eliminates the root cause of many data quality issues — corrupted readings caused by ground loops, EMI interference, or impedance mismatches.

When paired with a 1771-ACN15 ControlNet Adapter or a 1756-ENBT EtherNet/IP bridge module in a migration project, the 80190-380-02-R allows engineers to preserve existing field wiring and sensor investments while upgrading the communication backbone to modern, high-bandwidth protocols. This phased migration strategy dramatically reduces downtime risk and capital expenditure compared to a full rip-and-replace approach.

For remote monitoring and diagnostics, the conditioned signals from the 80190-380-02-R are accessible through FactoryTalk Diagnostics or RSLogix 5 online monitoring tools, enabling maintenance engineers to trend signal quality, detect sensor drift, and schedule predictive maintenance interventions — all without dispatching technicians to the field. Alarm thresholds configured in the PLC-5 processor trigger notifications through the SCADA layer, ensuring that abnormal process conditions are escalated to the right personnel in real time.

Production line transparency is further enhanced when the 80190-380-02-R’s data is aggregated alongside outputs from 1771-OFE analog output modules and 1771-IQ16 digital input modules, giving process engineers a complete picture of each control loop’s performance. This holistic view supports continuous improvement initiatives, OEE (Overall Equipment Effectiveness) tracking, and ISO compliance reporting — all critical requirements for modern smart factory certification.

Every Allen-Bradley 80190-380-02-R unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying signal conditioning accuracy, backplane communication integrity, and connector condition before dispatch. Units are shipped with a warranty terms confirmed during quotation and full traceability documentation, supporting quality management system requirements in regulated industries such as pharmaceuticals, food and beverage, and automotive manufacturing.

Industrial Connectivity FAQ

Q1: What communication protocols are compatible with the Allen-Bradley 80190-380-02-R in a 1771 I/O system?
The 80190-380-02-R operates within the 1771 I/O backplane and is compatible with the full range of 1771 communication adapters, including DH+ (via 1784-KTX), ControlNet (via 1771-ACN), and Remote I/O (via 1771-ASB). The conditioned analog signals it produces are accessible to any PLC-5 or SLC 500 processor communicating over these protocols, and can be bridged to EtherNet/IP or OPC-UA networks using appropriate gateway modules.

Q2: How does the 80190-380-02-R contribute to network stability and signal integrity in noisy industrial environments?
The board incorporates hardware-level noise filtering and signal isolation circuitry designed to reject common-mode interference from variable frequency drives, welding equipment, and high-voltage switching devices commonly found on factory floors. This ensures that the analog values presented to the PLC processor accurately reflect actual field conditions, reducing spurious alarms and improving closed-loop control stability.

Q3: Can the 80190-380-02-R be integrated into a SCADA or HMI system for remote diagnostics?
Yes. Because the 80190-380-02-R conditions signals that are read by a PLC-5 or SLC 500 processor, all conditioned values are available as standard PLC data table registers. These registers are directly accessible by FactoryTalk View SE, Wonderware InTouch, Ignition SCADA, or any OPC-DA/OPC-UA client connected to the control network, enabling full remote monitoring, trending, and alarm management without additional hardware.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 80190-380-02-R supplied by ZYPLC is tested for signal conditioning accuracy, backplane connector integrity, and board-level functionality prior to shipment. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with DHL or FedEx express freight, and replacement or repair support is coordinated directly through our technical team at plc.sales@zyplc.com.
