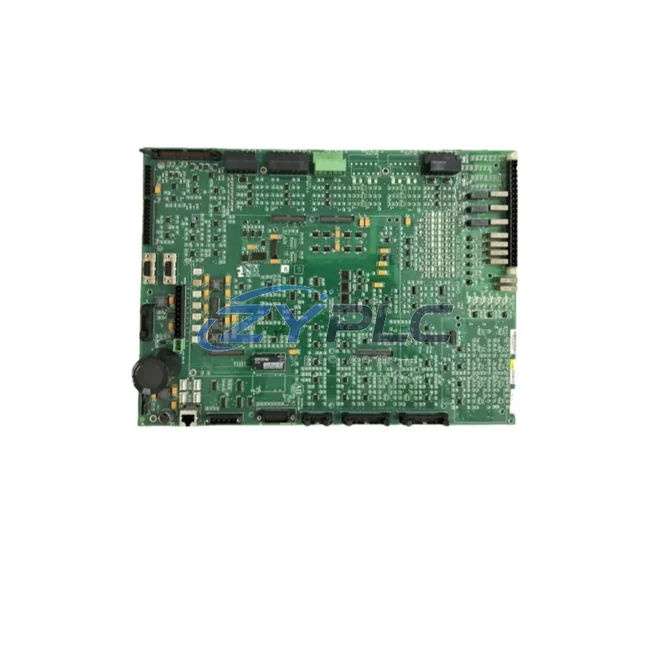

Allen-Bradley 80190-440-02-R Industrial Network Interface for 1771 Systems

Allen-Bradley 80190-440-02-R Industrial Network Interface for 1771 Systems: Bridging the Industrial Data Link in Smart Factory Environments

The Allen-Bradley 80190-440-02-R is a purpose-built industrial network interface module designed to serve as a critical communication bridge within the 1771 PLC chassis architecture. In modern smart factory deployments, where seamless data flow between field devices, controllers, and supervisory systems is non-negotiable, this interface board delivers the protocol translation, signal integrity, and network stability that industrial automation engineers demand. Whether integrating legacy 1771 I/O racks with contemporary SCADA platforms or extending the reach of a Rockwell Automation control network, the 80190-440-02-R provides a reliable, tested, and warranty-backed solution for industrial connectivity challenges.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the Allen-Bradley 80190-440-02-R sits at the heart of the industrial data chain. At the field level, sensors and actuators — including proximity switches, pressure transmitters, and motor feedback devices — feed real-time signals into the 1771 I/O chassis. The 80190-440-02-R interface board manages the backplane communication between these I/O modules and the PLC-5 processor, ensuring that every analog and digital signal is accurately translated and transmitted without latency or data loss.

Moving up the control hierarchy, the PLC-5 processor communicates over Data Highway Plus (DH+) to peer controllers and programming terminals. In multi-node DH+ networks, the 80190-440-02-R enables the 1771 chassis to participate as a fully addressable network node, allowing the 1785-L40B or 1785-L80B PLC-5 processors to exchange data tables with remote I/O adapters such as the 1771-ASB Remote I/O Adapter. This architecture supports distributed control across large plant floors where a single controller must manage dozens of remote I/O racks spread across production lines.

At the supervisory level, FactoryTalk View SE HMI stations and RSView32 SCADA workstations connect to the DH+ network via 1784-PKTX or 1784-U2DHP communication interface cards, pulling real-time process data from the PLC-5 data tables. The 80190-440-02-R ensures that this upstream data path remains stable and deterministic, supporting alarm management, trend logging, and operator visualization without communication dropouts. For facilities transitioning to EtherNet/IP-based architectures, the 1761-NET-ENI or 1756-ENBT EtherNet/IP communication modules can be deployed alongside the 1771 chassis to bridge legacy DH+ segments with modern Logix-based networks, with the 80190-440-02-R continuing to serve as the reliable backplane interface within the 1771 rack.

In drive integration scenarios, PowerFlex 700 and PowerFlex 40 variable frequency drives connected via Remote I/O or DeviceNet receive speed references and control commands routed through the PLC-5 and the 1771 I/O chassis. The 80190-440-02-R’s stable backplane communication ensures that drive command updates are delivered within the required scan cycle, preventing process upsets caused by communication delays. Similarly, Kinetix servo drives integrated into motion control applications depend on the integrity of the I/O chassis backplane for coordinated axis control.

For remote diagnostics and predictive maintenance, edge gateway devices such as the Moxa MGate MB3180 or Advantech ADAM-6717 can be configured to poll PLC-5 data registers over DH+ or serial interfaces, forwarding equipment health data to cloud-based CMMS or IIoT platforms. The 80190-440-02-R’s role in maintaining a clean, noise-free backplane communication path is essential for the accuracy of these remote monitoring data streams, ensuring that vibration readings, temperature trends, and production counters are faithfully represented at the supervisory level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Many manufacturing facilities operate mixed environments where legacy 1771-based PLC-5 systems coexist with newer ControlLogix 1756 platforms, third-party SCADA systems, and cloud-connected IIoT infrastructure. Without a reliable interface module like the 80190-440-02-R, these systems become data islands — unable to share process information, alarm states, or production metrics in real time.

The 80190-440-02-R directly addresses protocol fragmentation by providing a stable, standards-compliant backplane interface that allows the 1771 I/O chassis to communicate reliably with PLC-5 processors operating on DH+ and Remote I/O networks. This eliminates the communication gaps that cause data isolation, enabling plant engineers to implement unified SCADA dashboards that aggregate data from both legacy and modern control systems. Production line transparency — the ability to see real-time OEE metrics, alarm histories, and batch records from a single supervisory interface — becomes achievable without requiring a full system replacement.

Remote monitoring is another area where the 80190-440-02-R delivers measurable value. By maintaining a reliable backplane communication path, the module ensures that remote I/O racks located hundreds of meters from the main control panel continue to report accurate status data to the PLC-5 processor. This supports remote diagnostics workflows where maintenance engineers can identify fault conditions, review I/O status, and initiate corrective actions from a central control room or even from off-site locations via VPN-connected SCADA terminals.

System expansion is simplified as well. As production capacity grows, additional 1771 I/O racks can be added to the Remote I/O network without disrupting existing control logic. The 80190-440-02-R’s compatibility with the full range of 1771 I/O modules — including analog input, analog output, digital input, digital output, and specialty modules — means that new measurement points and control outputs can be integrated into the existing network architecture with minimal engineering effort. All units supplied by ZYPLC undergo pre-shipment functional testing to verify communication integrity before dispatch, and are Warranty terms are confirmed during quotation.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 80190-440-02-R support, and is it compatible with modern EtherNet/IP networks?
The 80190-440-02-R is designed for the Allen-Bradley 1771 PLC chassis backplane, supporting Data Highway Plus (DH+) and Remote I/O (RIO) communication protocols native to the PLC-5 platform. While it does not natively support EtherNet/IP, it can be integrated into EtherNet/IP-based architectures through protocol gateway modules such as the 1756-DHRIO or third-party DH+ to EtherNet/IP bridges, allowing legacy 1771 systems to participate in modern network topologies without full system replacement.

Q2: How does the 80190-440-02-R ensure network stability and minimize communication latency in high-speed production environments?
The module is engineered to meet Allen-Bradley’s backplane communication specifications for the 1771 chassis, ensuring deterministic scan cycle performance. In properly configured DH+ networks operating at 57.6 kbps or 230.4 kbps, communication latency is kept within the bounds required for real-time process control. ZYPLC performs pre-shipment communication testing on all units to verify that backplane signal integrity meets OEM specifications before dispatch.

Q3: Can the 80190-440-02-R be used in SCADA and HMI integration projects, and what supervisory systems are compatible?
Yes. The 80190-440-02-R supports integration with FactoryTalk View SE, RSView32, Wonderware InTouch, and other SCADA/HMI platforms that communicate with PLC-5 processors via DH+ or Remote I/O. These supervisory systems connect to the DH+ network through communication interface cards such as the 1784-PKTX or 1784-U2DHP, enabling real-time data acquisition, alarm management, and historical trending from the 1771 I/O chassis.

Q4: What warranty and quality assurance does ZYPLC provide for the Allen-Bradley 80190-440-02-R?
All Allen-Bradley 80190-440-02-R units supplied by ZYPLC are covered by a warranty and support terms confirmed before quote against hardware defects and communication failures. Each unit undergoes pre-shipment functional testing to verify backplane communication performance and I/O signal integrity. Availability and shipment timing are confirmed by RFQ with Export shipping options available after RFQ confirmation. For volume orders, lead time and quotation inquiries, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
