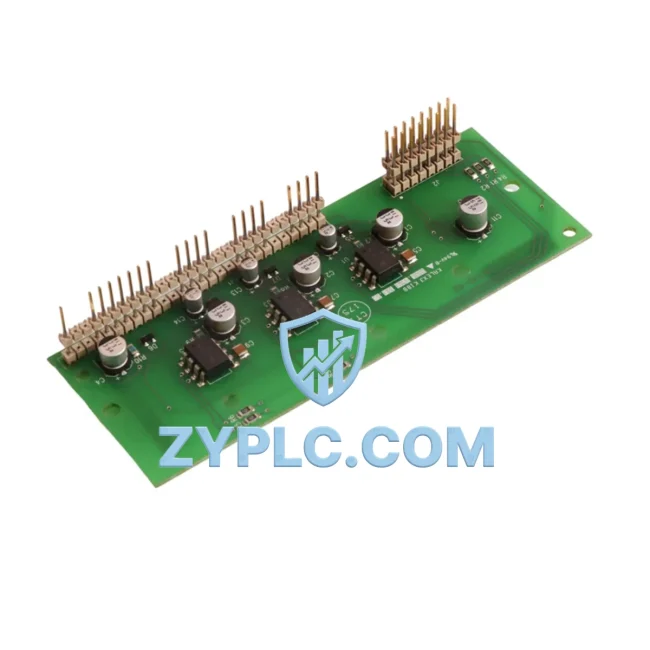

Allen-Bradley MFIXSUP0601 Industrial Network Interface for SLC 500 Systems

Allen-Bradley MFIXSUP0601 193112: Industrial Data Link for SLC 500 Smart Factory Networks

The Allen-Bradley MFIXSUP0601 193112 is a purpose-built industrial network interface circuit board engineered for the SLC 500 control platform — one of the most widely deployed small-to-mid-range PLC architectures in discrete manufacturing, process automation, and material handling environments. Designed to operate within the 1747 Series modular chassis, this board serves as a critical communication node that bridges field-level devices with supervisory control systems, enabling seamless data flow across the full automation stack.

In modern smart factory deployments, the integrity of the data link between a PLC controller and its upstream SCADA or HMI system determines the responsiveness of the entire production line. The MFIXSUP0601 supports the SLC 500’s native communication architecture — including Data Highway Plus (DH+), DH-485, RS-232 serial, and DF1 full-duplex/half-duplex protocols — making it a versatile interface for both legacy integration and contemporary industrial Ethernet migration projects. Whether connecting to a Rockwell Automation RSView32 SCADA workstation, a PanelView HMI terminal, or a third-party gateway device, this board ensures low-latency, deterministic data exchange that production environments demand.

Signal acquisition begins at the field device layer, where sensors, proximity switches, and analog transmitters feed real-time process values into the SLC 500 I/O subsystem via 1746 Series I/O modules. The MFIXSUP0601 board facilitates the upward transmission of this data through the SLC 500’s backplane, routing structured messages to the communication port for network delivery. In multi-node DH+ networks, the board participates in token-passing arbitration, ensuring that each controller — including peer SLC 5/03, SLC 5/04, and SLC 5/05 processors — receives its allocated transmission window without collision or data loss.

For facilities running distributed control architectures, the MFIXSUP0601 enables the SLC 500 to act as both a data producer and consumer within a coordinated automation network. Remote I/O adapter modules, such as those in the 1771 Series, can be polled through the SLC 500’s I/O scanner function, while upstream MES or ERP systems receive aggregated production data via DF1 messaging or OPC server bridges. This bidirectional data flow is essential for real-time OEE monitoring, alarm management, and predictive maintenance workflows that define Industry 4.0 operations.

Integration with HMI and SCADA platforms is straightforward. The SLC 500 processor communicates natively with PanelView 550, PanelView 900, and PanelView Plus terminals over DH-485 or DH+ networks, with the MFIXSUP0601 providing the physical and logical interface layer that sustains these connections. For SCADA environments built on FactoryTalk View SE or legacy RSView32, the board supports MSG instruction-based data exchange, enabling supervisory systems to read and write controller tags, trigger recipe downloads, and collect historian data without interrupting scan cycle execution.

Remote diagnostics and network health monitoring are supported through the SLC 500’s built-in communication status registers, which the MFIXSUP0601 exposes to connected monitoring tools. Network administrators can identify communication faults, retransmission counts, and node timeout events from a central RSLinx Classic gateway, reducing the need for on-site troubleshooting and minimizing mean time to repair (MTTR). In facilities where downtime costs are measured in thousands of dollars per minute, this remote visibility capability is a direct operational asset.

The board is also compatible with protocol conversion gateways — such as ProSoft Technology MVI56 or HMS Anybus communicators — that translate DH+ or DH-485 traffic into Modbus TCP, PROFIBUS DP, or EtherNet/IP for integration with third-party drives, variable frequency drives (VFDs), and smart instrumentation. This makes the MFIXSUP0601 a viable component in hybrid automation environments where Allen-Bradley controllers must coexist with Siemens, Schneider Electric, or Mitsubishi field devices.

Power supply stability is a prerequisite for reliable network communication. The SLC 500 chassis relies on 1746 Series power supply modules to deliver regulated DC voltage to all installed boards, including the MFIXSUP0601. Ensuring that the power supply operates within its rated capacity — accounting for all installed I/O and communication modules — is a fundamental step in commissioning any SLC 500 network node.

Every MFIXSUP0601 193112 unit supplied by ZYPLC undergoes pre-shipment functional verification, including communication port integrity checks and backplane interface testing. Units are shipped with full electrostatic discharge (ESD) protection packaging and are backed by a 12-month warranty covering manufacturing defects and communication failures. Global logistics via DHL Express and FedEx International Priority ensure rapid delivery to manufacturing sites across Asia, Europe, the Americas, and the Middle East.

Network Communication Table

Connected Automation Data Flow

In a typical SLC 500 automation cell, the MFIXSUP0601 sits at the center of a layered communication architecture. At the field level, 1746-IB16 digital input modules and 1746-NI4 analog input modules collect process signals from proximity sensors, pressure transmitters, and flow meters. These values are scanned into the SLC 500 processor’s data table and made available for network transmission through the MFIXSUP0601’s communication interface.

Upstream, a Rockwell Automation RSLinx Classic OPC server bridges the DH+ network to a FactoryTalk View SE SCADA workstation, where operators monitor real-time production KPIs, acknowledge alarms, and initiate batch sequences. Simultaneously, a PanelView Plus 700 HMI terminal connected via DH-485 provides machine-level operator interaction — displaying setpoints, fault codes, and trend data sourced directly from the SLC 500 data table.

For facilities requiring protocol translation, a ProSoft Technology MVI46-MCM Modbus Communication Module installed in the same 1747 chassis enables the SLC 500 to exchange data with Modbus RTU-based VFDs, smart meters, and third-party PLCs. An HMS Anybus Communicator gateway further extends connectivity to PROFIBUS DP networks, allowing the SLC 500 to integrate with Siemens ET 200S distributed I/O or ABB ACS880 drives without replacing the existing control architecture.

Edge computing nodes — such as a Moxa UC-8112 industrial computer running Node-RED — can subscribe to the SLC 500’s data stream via an OPC-UA wrapper, forwarding production metrics to cloud-based MES platforms or IoT dashboards. This edge-to-cloud data path, anchored by the MFIXSUP0601’s reliable communication interface, enables real-time OEE calculation, energy consumption monitoring, and predictive maintenance alerting without modifying the core PLC program.

Solving Data Isolation in Industrial Sites

Many manufacturing facilities operating SLC 500 systems face a common challenge: protocol fragmentation. When field devices speak Modbus RTU, the PLC communicates over DH+, and the SCADA system expects EtherNet/IP, data becomes siloed at each layer — operators lose visibility, maintenance teams cannot diagnose faults remotely, and production managers lack the real-time data needed for informed decisions.

The MFIXSUP0601 addresses this by maintaining the SLC 500’s role as a reliable communication hub within a multi-protocol environment. By preserving the integrity of the DH+ and DH-485 network layers, it ensures that existing SCADA integrations, HMI connections, and peer-to-peer PLC messaging continue to function without interruption — even as facilities add new EtherNet/IP devices or cloud connectivity layers at the supervisory level.

For production line transparency, the board enables MSG instruction-based data exchange between SLC 500 nodes, allowing one controller to read or write data in another’s data table. This peer communication capability supports coordinated multi-machine sequences, synchronized conveyor control, and distributed alarm management — all without requiring a central coordinator PLC or additional communication hardware.

System expansion is equally straightforward. Additional 1747 chassis slots can accommodate supplementary communication modules — such as the 1747-KE RS-232 interface or the 1747-SDN DeviceNet Scanner — alongside the MFIXSUP0601, extending the SLC 500’s network reach without replacing the base controller. This modular expandability protects the capital investment in existing SLC 500 infrastructure while accommodating the communication demands of evolving smart factory architectures.

Industrial Connectivity FAQ

Q: What communication protocols does the Allen-Bradley MFIXSUP0601 193112 support?
A: The MFIXSUP0601 supports the SLC 500 platform’s native communication protocols, including Data Highway Plus (DH+), DH-485, RS-232 serial, and DF1 full-duplex and half-duplex messaging. These protocols enable connectivity to RSLinx gateways, PanelView HMI terminals, peer SLC 500 controllers, and third-party protocol converters.

Q: Is the MFIXSUP0601 compatible with EtherNet/IP or modern industrial Ethernet networks?
A: The MFIXSUP0601 operates within the SLC 500’s legacy DH+/DH-485 communication architecture. For EtherNet/IP integration, a protocol gateway — such as the ProSoft Technology MVI46-DFNT or an HMS Anybus Communicator — can bridge the SLC 500’s DH+ network to an EtherNet/IP backbone, enabling coexistence with modern Logix-based systems and EtherNet/IP-capable devices.

Q: How does ZYPLC verify the MFIXSUP0601 before shipment?
A: Every unit undergoes pre-shipment functional testing, including communication port integrity verification and backplane interface checks. Units are packaged with full ESD protection and ship with documentation confirming test results. All MFIXSUP0601 193112 units are covered by a 12-month warranty against manufacturing defects and communication failures.

Q: Can the MFIXSUP0601 support remote diagnostics and network monitoring?
A: Yes. The SLC 500 processor exposes communication status registers — including node timeout events, retransmission counts, and fault codes — that are accessible via RSLinx Classic from a remote workstation. This enables network administrators to diagnose communication issues, identify faulty nodes, and monitor DH+ network health without requiring physical access to the control panel.

—
