Allen-Bradley SP-148540 Industrial Network Interface for PLC-5 Systems

Allen-Bradley SP-148540 Industrial Network Interface for PLC-5 Systems: Enabling Seamless Data Links Across Smart Factory Architectures

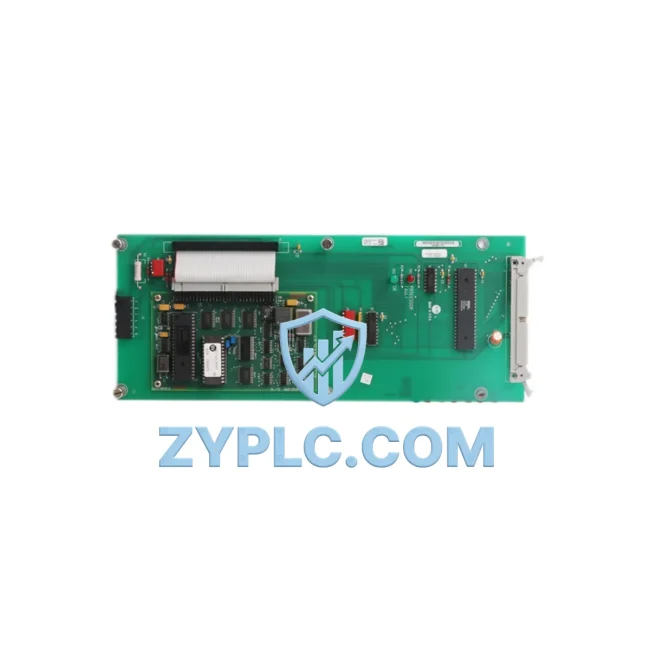

The Allen-Bradley SP-148540 (cross-referenced as 148539 and 129736-05, Series A) is a precision-engineered printed circuit board designed to sustain the communication backbone of Allen-Bradley PLC-5 control platforms. In modern industrial environments where data continuity between field devices, controllers, and supervisory systems is non-negotiable, this PC board serves as a critical hardware node — ensuring that signal acquisition, protocol translation, and real-time data transmission remain uninterrupted across the entire automation chain.

Network Communication Table

Connected Automation Data Flow

Within a PLC-5-based automation architecture, the SP-148540 PC board functions as the internal communication engine that keeps the processor synchronized with every layer of the control hierarchy. At the field level, sensors and actuators — including proximity switches, pressure transmitters, and servo drives — feed real-time signals into remote I/O racks such as the Allen-Bradley 1771-ASB Remote I/O Adapter. These signals are aggregated and passed upstream through the DH+ network, where the PLC-5 processor — supported by this board — executes logic and issues control commands with deterministic timing.

The data flow continues upward to operator interfaces. Allen-Bradley PanelView 1000 and PanelView Plus 6 HMI terminals connect via DH+ or ControlNet, rendering live process data, alarm states, and trend graphs for floor operators. Simultaneously, SCADA platforms such as Rockwell FactoryTalk View SE poll the PLC-5 over the DH+ gateway, collecting production metrics, batch records, and equipment health data for plant-wide visibility.

For sites requiring protocol bridging between legacy DH+ segments and modern EtherNet/IP infrastructure, the Allen-Bradley 1761-NET-DNI DeviceNet Interface and 1784-PKTX DH+/ControlNet Communication Card work in tandem with the SP-148540 board to ensure seamless data handoff. Variable frequency drives such as the Allen-Bradley PowerFlex 40 and PowerFlex 700 receive speed references and fault acknowledgment commands routed through this communication path, enabling closed-loop motor control without data latency.

At the network infrastructure layer, managed industrial switches — including the Stratix 5700 Managed Switch — segment and prioritize traffic between ControlNet and EtherNet/IP zones, while edge gateways aggregate data from multiple PLC-5 nodes for transmission to MES and ERP systems. The SP-148540 board ensures that the PLC-5 processor remains the authoritative data source throughout this chain, from signal acquisition at the sensor level to real-time reporting at the enterprise level.

Solving Data Isolation in Industrial Sites

Legacy PLC-5 installations frequently encounter data isolation challenges as plants modernize. The SP-148540 PC board directly addresses these pain points by maintaining the integrity of the DH+ and ControlNet communication layers that many existing SCADA and HMI systems depend upon.

Protocol Fragmentation: In mixed-protocol environments where newer EtherNet/IP devices coexist with legacy DH+ nodes, a failed or degraded SP-148540 board creates a communication gap that isolates the PLC-5 from the rest of the network. Replacing this board restores the protocol bridge, allowing legacy and modern devices to exchange data without requiring a full controller migration.

Data Silos and Production Transparency: When the PLC-5 communication board fails, production data stops flowing to SCADA dashboards and HMI screens, creating blind spots on the plant floor. Restoring the SP-148540 re-establishes the data pipeline, enabling operators and engineers to monitor OEE, cycle times, alarm histories, and energy consumption in real time — eliminating information silos that lead to unplanned downtime.

Remote Monitoring and Diagnostics: With the SP-148540 board operational, remote diagnostic tools can interrogate the PLC-5 processor over DH+ or ControlNet, allowing maintenance engineers to perform online program edits, fault analysis, and firmware verification without physical access to the control panel. This capability is essential for multi-site operations where centralized engineering teams support distributed production lines.

System Scalability: As production lines expand, additional remote I/O racks, drives, and communication modules can be integrated into the existing DH+ network without disrupting current operations — provided the PLC-5 communication board is functioning correctly. The SP-148540 ensures that the controller’s communication capacity scales with the network, supporting system growth without requiring a platform change.

Every SP-148540 unit supplied by ZYPLC undergoes functional testing prior to shipment, with a 12-month warranty covering communication failures, board-level defects, and interface faults. Stock is maintained for immediate dispatch via DHL and FedEx to global destinations, with full export documentation provided.

Industrial Connectivity FAQ

Q1: Will the SP-148540 PC board introduce communication latency on the DH+ network?
No. The SP-148540 is designed to operate within the deterministic timing parameters of the Allen-Bradley DH+ protocol, which supports scan rates compatible with real-time PLC-5 control loops. When the board is in good condition, it does not add measurable latency to the communication cycle. If latency is observed after installation, it typically indicates a network configuration issue or a cable fault rather than a board defect.

Q2: Is the SP-148540 compatible with both ControlNet and DH+ communication simultaneously?
The SP-148540 supports the internal backplane communication architecture of the PLC-5 platform, which can interface with both DH+ and ControlNet networks depending on the communication modules installed in the chassis. Compatibility with specific network configurations should be verified against the PLC-5 system’s installed communication cards and firmware revision.

Q3: How is network stability ensured after replacing the SP-148540 board?
Each SP-148540 unit from ZYPLC is tested for electrical continuity, signal integrity, and communication handshake performance before shipment. After installation, it is recommended to perform a full network diagnostic using RSLinx or FactoryTalk Diagnostics to confirm that all DH+ nodes are communicating correctly and that the PLC-5 processor is scanning all I/O modules without errors.

Q4: What does the 12-month warranty cover, and what is the support process?
The 12-month warranty covers manufacturing defects, communication interface failures, and board-level faults under normal operating conditions. If a warranty claim is required, contact ZYPLC with the order reference and a description of the fault. Replacement or repair will be arranged promptly, with return shipping coordinated by our logistics team to minimize downtime impact.
