Allen-Bradley SP-170025 Industrial Network Interface for 1336 VFD Systems

Allen-Bradley SP-170025 Industrial Network Interface for 1336 VFD Systems: Bridging the Industrial Data Link in Smart Factory Environments

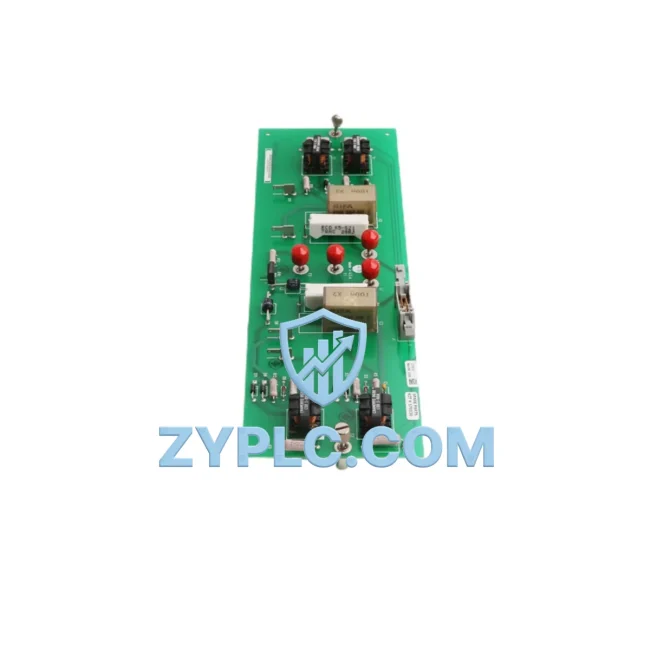

The Allen-Bradley SP-170025 (also cross-referenced as SP-170130 and 170026-01) is a precision-engineered Drive Control Board designed for the 1336 Series Variable Frequency Drive (VFD) platform. Far beyond a simple replacement component, this board functions as the critical communication and control nucleus within the 1336 VFD architecture — enabling seamless data exchange between field-level motor drives, PLC controllers, remote I/O modules, HMI panels, SCADA systems, and upper-level MES/ERP platforms. In modern smart factory deployments, where real-time data visibility and network stability are non-negotiable, the SP-170025 delivers the reliability and protocol compatibility that industrial automation engineers demand.

Whether you are maintaining an existing 1336 PLUS, 1336 FORCE, or 1336 IMPACT drive installation, or integrating legacy VFD assets into a contemporary Industrial Ethernet backbone, the SP-170025 provides the hardware foundation for uninterrupted motor control, drive diagnostics, and network communication across your production floor.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the Allen-Bradley SP-170025 sits at the intersection of the drive layer and the control network, orchestrating data flow across multiple automation tiers. At the field level, motor feedback signals — including speed reference, current draw, torque output, and fault status — are captured by the SP-170025 control board and transmitted upstream via DeviceNet or Remote I/O (RIO) communication links to the plant’s PLC controller layer.

In a typical 1336 Series VFD installation, the SP-170025 interfaces directly with Allen-Bradley SLC 500 or PLC-5 controllers through the DH+ network, enabling the PLC to issue speed commands, read drive status words, and trigger fault resets without manual intervention. For facilities that have migrated to the ControlLogix platform, the 1336 drive equipped with the SP-170025 board can be bridged into the EtherNet/IP backbone via a 1203-USB or 1203-GU6 communication adapter, allowing Studio 5000 to monitor and control the drive in real time.

Moving up the data chain, the drive’s operational data — cycle counts, energy consumption, alarm history — is aggregated by a SCADA gateway such as the Rockwell FactoryTalk View SE server or a third-party OPC-UA edge gateway. This data is then visualized on PanelView Plus HMI terminals installed at operator stations, giving line supervisors immediate visibility into motor performance, drive health, and production throughput without leaving the control room.

Remote I/O expansion modules connected to the same DH+ or RIO network allow the 1336 VFD to coordinate with upstream conveyor drives, downstream packaging line inverters, and auxiliary sensor arrays — including proximity sensors, encoder feedback modules, and temperature transmitters — creating a tightly synchronized motion control network. In multi-drive applications, the SP-170025-equipped 1336 drives can be daisy-chained across a DeviceNet segment alongside PowerFlex 40 or PowerFlex 70 drives, enabling centralized parameter management and coordinated speed profiling from a single ControlLogix controller.

For remote diagnostic scenarios, the SP-170025 supports fault code broadcasting across the communication network, allowing maintenance engineers to interrogate drive fault logs, reset alarms, and adjust PID parameters remotely via RSLogix 5 or RSLogix 500 programming terminals — eliminating the need for on-site intervention during off-hours fault events. This remote diagnostics capability is further enhanced when the 1336 drive network is connected to an industrial edge computing node running FactoryTalk Analytics or a compatible MES platform, enabling predictive maintenance scheduling based on real-time drive health data.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where older 1336 Series VFDs running DH+ or RIO communication exist alongside newer EtherNet/IP-based control systems, creating data silos that prevent plant-wide visibility and coordinated control. The Allen-Bradley SP-170025 addresses this challenge at the hardware level by providing a stable, proven control board platform that supports protocol bridging through compatible communication adapter modules.

By restoring or replacing a failed SP-170025 board, maintenance teams can immediately re-establish the drive’s network presence on the DH+ or DeviceNet segment, eliminating the data gap that occurs when a drive drops offline due to control board failure. This is particularly critical in continuous process industries — such as water treatment, chemical processing, and food and beverage production — where a single offline drive can disrupt an entire production line and trigger cascading alarms across the SCADA system.

For facilities undertaking digital transformation initiatives, the SP-170025 enables a phased integration approach: existing 1336 VFDs can be retained and networked into the new control architecture via protocol gateways, rather than requiring immediate full drive replacement. This approach significantly reduces capital expenditure while accelerating the timeline for achieving plant-wide data transparency, real-time OEE monitoring, and remote diagnostics capability.

System scalability is another key advantage. As production lines expand, additional 1336 drives equipped with SP-170025 boards can be added to the existing DH+ or DeviceNet network segment without requiring changes to the upper-level PLC or SCADA configuration — provided the network node count and cable length remain within specification. This plug-and-extend architecture supports rapid line reconfiguration and capacity scaling, which is essential for manufacturers operating in high-mix, variable-volume production environments.

All SP-170025 units supplied by ZYPLC undergo functional testing prior to shipment, including communication link verification, parameter read/write testing, and fault simulation checks. This pre-shipment test protocol ensures that every board arrives ready for immediate installation, minimizing drive downtime and reducing the risk of commissioning delays on the production floor.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley SP-170025 support, and is it compatible with EtherNet/IP networks?
The SP-170025 is the native control board for the 1336 Series VFD and supports DH+, Remote I/O (RIO), and DeviceNet communication protocols natively. Direct EtherNet/IP connectivity requires an additional communication adapter module (such as the 1203-GU6 or equivalent), which interfaces with the SP-170025 board’s communication port to bridge the drive onto an EtherNet/IP or ControlNet segment. This configuration is fully supported and widely deployed in Rockwell Automation ControlLogix environments.

Q2: How does the SP-170025 affect network stability and communication latency in a multi-drive DeviceNet installation?
The SP-170025 is designed to maintain deterministic communication timing on DeviceNet and DH+ networks, with scan cycle times consistent with the 1336 Series drive specification. In multi-drive installations, network stability depends on proper node addressing, cable termination, and baud rate configuration — all of which are managed through the drive’s parameter set accessible via the SP-170025 control board. ZYPLC recommends verifying network configuration parameters during board replacement to ensure consistent scan times across all connected drives.

Q3: Can the SP-170025 be used as a direct replacement for SP-170130 and 170026-01 part numbers?
Yes. SP-170025, SP-170130, and 170026-01 are cross-referenced part numbers for functionally equivalent control boards used across the 1336 PLUS, 1336 FORCE, and 1336 IMPACT drive families. Minor hardware revisions may exist between part numbers, but all three are compatible replacements within the 1336 Series platform. ZYPLC’s technical team can confirm compatibility based on your specific drive model and firmware revision prior to shipment.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the SP-170025?
All SP-170025 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing, including communication interface verification, control signal testing, and fault diagnostic checks. In-stock units are available for same-day or next-business-day dispatch, supporting urgent maintenance and production recovery requirements globally.
