Amsamotion 3DB30 PC Interface for S7-200

Amsamotion 3DB30 PC Interface for S7-200: Compatibility and Replacement Notes

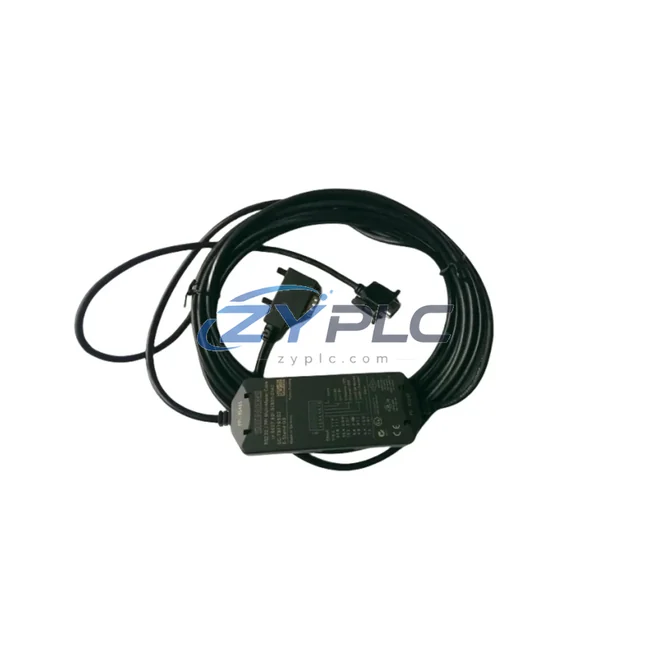

In modern industrial automation, the reliability of a control system depends not on any single component, but on the seamless coordination between every layer of the architecture — from the CPU and power supply at the core, through the I/O and communication layers, to the HMI and field actuators at the periphery. The Amsamotion 3DB30 PC Interface Module is engineered specifically to serve as the critical communication bridge within S7-200 series PLC architectures, enabling stable, high-integrity data exchange between the programming workstation and the controller platform. Its role in the system is not peripheral — it is foundational to engineering commissioning, real-time diagnostics, program upload/download, and long-term maintenance efficiency across the full automation lifecycle.

The 3DB30 is designed for engineers and system integrators who require a dependable, plug-and-play PC-to-PLC interface that maintains signal integrity under industrial operating conditions. Whether deployed in a standalone machine controller or as part of a distributed multi-node network, the 3DB30 delivers consistent communication performance that supports both initial commissioning and ongoing operational monitoring.

Product Specification Table

System Compatibility Notes

The Amsamotion 3DB30 does not operate in isolation. Its value is fully realized when understood within the context of a complete S7-200-based control system architecture. At the controller layer, the 3DB30 interfaces directly with S7-200 CPU modules such as the CPU 224 XP and CPU 226, which serve as the computational core of the automation system. These CPUs manage ladder logic execution, process variable handling, and inter-module communication — and the 3DB30 provides the essential PC-side gateway for programming, monitoring, and firmware management of these units.

At the power layer, the system relies on S7-200 24VDC power supply modules to deliver stable regulated voltage to the CPU and expansion racks. Voltage stability at this layer directly affects communication reliability — a well-regulated power supply ensures that the RS-485 signal transmitted through the 3DB30 remains within tolerance across all operating conditions.

Expanding the I/O capacity of the S7-200 platform typically involves EM 221 digital input expansion modules, EM 222 digital output modules, and EM 231 analog input modules. These expansion modules connect to the CPU via the local I/O bus, and their configuration, calibration, and diagnostic data are all accessible through the programming interface established by the 3DB30. Engineers can monitor analog signal scaling, verify digital output states, and adjust PID loop parameters — all through the communication channel that the 3DB30 provides.

For applications requiring network-level integration, the S7-200 architecture supports CP 243-1 Ethernet communication modules and EM 277 PROFIBUS-DP slave modules, which extend the controller’s connectivity to plant-level SCADA systems, DCS platforms, and field device networks. The 3DB30 complements these network modules by providing a direct, local engineering access point — particularly valuable during commissioning phases when network infrastructure may not yet be fully operational, or during maintenance windows when isolated access to the CPU is required without disrupting the live network.

At the human-machine interface layer, SIMATIC TP177 or OP 73 HMI panels connected via MPI or PPI communicate with the same S7-200 CPU that the 3DB30 accesses. Coordinated use of the 3DB30 during HMI commissioning allows engineers to simultaneously verify PLC variable mapping and HMI tag binding — reducing integration errors and shortening overall commissioning time.

In redundancy-critical applications, the 3DB30 supports maintenance access to backup CPU configurations, enabling engineers to verify that standby controllers hold synchronized program versions. This is particularly relevant in systems using S7-200 SMART CPUs or dual-controller architectures where program consistency between primary and redundant units must be validated periodically.

Industrial Application Notes

Manufacturing and Discrete Production Lines: In automotive component assembly, electronics manufacturing, and packaging machinery, the 3DB30 enables rapid program modification and real-time monitoring of S7-200-controlled conveyor systems, robotic pick-and-place stations, and quality inspection gates. Maintenance engineers can connect directly to the PLC during a scheduled downtime window, upload the current program for backup, apply parameter adjustments, and verify I/O states — all within minutes, without requiring network access.

Power Distribution and Electrical Substations: In low-voltage switchgear panels and motor control centers (MCCs), S7-200 PLCs manage protection relay logic, motor starter sequencing, and fault logging. The 3DB30 provides the local engineering interface for commissioning protection thresholds, verifying interlock logic, and extracting fault history data — functions that are critical during both initial installation and periodic maintenance inspections.

Water Treatment and Pumping Stations: Remote pumping stations and water treatment facilities often rely on S7-200 PLCs for level control, pump sequencing, and chemical dosing automation. In these environments, the 3DB30 allows field engineers to access the controller directly via laptop during site visits, eliminating the need for permanent network infrastructure at remote locations. The optical isolation built into the 3DB30 also protects the engineering workstation from ground potential differences common in outdoor electrical installations.

Petrochemical and Process Control: In batch processing and continuous flow applications within the petrochemical industry, S7-200 PLCs control valve actuators, flow meters, and pressure transmitters. The 3DB30 supports engineering access for PID tuning, setpoint adjustment, and alarm threshold configuration — tasks that require direct, low-latency communication with the controller to ensure process stability during parameter changes.

Mining and Metallurgical Applications: Conveyor belt control systems, crusher automation, and ore processing lines in mining operations frequently use S7-200 PLCs due to their robustness and simplicity. The 3DB30’s industrial-grade operating temperature range and optical isolation make it suitable for the electrically noisy environments typical of mining facilities, where reliable engineering access is essential for maintaining production continuity.

Product Compatibility FAQ

Q1: Is the Amsamotion 3DB30 fully compatible with all S7-200 CPU variants, and does it support multi-drop network configurations?
The 3DB30 is compatible with the full range of S7-200 CPU modules, including CPU 221, CPU 222, CPU 224, CPU 224 XP, and CPU 226, communicating via the PPI protocol over RS-485. In multi-drop configurations, the module supports network addresses assigned to individual CPUs, allowing a single engineering workstation to access multiple controllers on the same RS-485 bus by switching the target address within the programming software. This makes the 3DB30 suitable for both single-controller machines and multi-node distributed control architectures.

Q2: How does the 3DB30 integrate into an existing S7-200 system without disrupting live operations, and what are the installation requirements?
The 3DB30 connects to the S7-200 CPU’s RS-485 programming port via a dedicated cable and to the engineering workstation via USB — no additional power supply, DIN rail mounting, or system shutdown is required for connection. In most cases, the module can be connected to a running system for monitoring and non-critical parameter reads without interrupting PLC execution. Program downloads and CPU mode changes should be performed during scheduled maintenance windows. The system integration design of the 3DB30 ensures that it adapts to the existing communication parameters of the target CPU without requiring manual baud rate configuration in most standard deployments.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term system maintenance?
The warranty terms confirmed during quotation covers all manufacturing defects, communication failures, and hardware malfunctions arising under normal industrial operating conditions from the date of purchase. This includes optical isolation failures, USB interface faults, and RS-485 signal integrity issues attributable to the module itself. For long-term system maintenance, ZYPLC maintains inventory of the 3DB30 and compatible S7-200 interface components to support spare parts programs and emergency replacement requirements. Engineers managing aging S7-200 installations can rely on continued availability of the 3DB30 to sustain engineering access capability throughout the operational life of their control systems.
