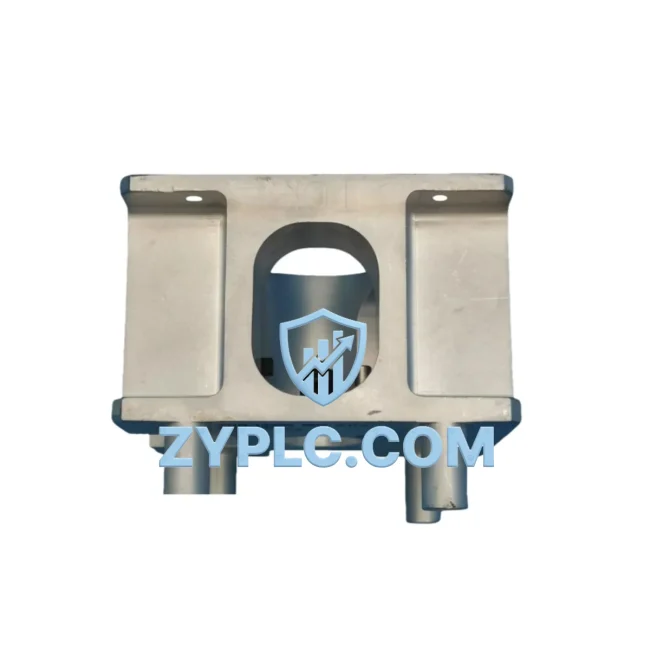

Applied Materials 0010-19238 Throttle Valve Drive Assembly

Applied Materials 0010-19238 Throttle Valve Drive Assembly: Precision Process Control for Semiconductor Fabrication Systems

The Applied Materials 0010-19238 Throttle Valve Drive Assembly is a critical motion-control and process-regulation component engineered for use in Applied Materials CVD (Chemical Vapor Deposition), PVD (Physical Vapor Deposition), and etch process chambers. As a factory-grade spare part, the 0010-19238 governs the precise actuation of the throttle valve mechanism, directly controlling chamber pressure, gas flow dynamics, and process uniformity across wafer surfaces. In high-throughput semiconductor fabs running 200mm and 300mm wafer processes, the integrity of this drive assembly is fundamental to yield stability, recipe repeatability, and equipment uptime.

In modern semiconductor process equipment, the throttle valve drive assembly sits at the intersection of mechanical actuation and real-time process feedback. The 0010-19238 interfaces with the chamber pressure control loop, receiving position commands from the equipment controller — typically an Applied Materials system controller or a compatible PLC-based motion controller — and translating those commands into precise valve travel. This closed-loop interaction ensures that chamber pressure is maintained within tight tolerances during deposition or etch steps, where even minor deviations can result in film thickness non-uniformity or etch rate variation across the wafer.

Network Communication Table

Connected Automation Data Flow

Within an Applied Materials process tool, the 0010-19238 Throttle Valve Drive Assembly operates as part of a tightly integrated automation chain. The equipment controller — often running on an Applied Materials proprietary platform or interfacing with a Siemens S7-series PLC or Allen-Bradley ControlLogix controller via a dedicated I/O module — issues real-time position setpoints to the throttle valve actuator. These setpoints are derived from the process recipe manager, which coordinates gas flow, RF power, and pressure targets across each process step.

The drive assembly’s position feedback is continuously monitored by the chamber pressure management subsystem. Pressure transducers and Baratron capacitance manometers feed live pressure readings back to the controller, which compares actual chamber pressure against the recipe setpoint and adjusts the throttle valve position accordingly. This feedback loop operates in milliseconds, ensuring that transitions between process steps — such as moving from a deposition phase to a purge cycle — are executed with the precision required for advanced node semiconductor manufacturing.

In multi-chamber cluster tools, such as the Applied Materials Centura or Endura platforms, the throttle valve drive assembly in each process module must operate in synchronization with the central cluster handler controller. The handler coordinates wafer transfer sequences, and each chamber’s pressure must be stabilized before a transfer slot valve opens. A degraded or failed 0010-19238 drive assembly can cause pressure excursions that trigger interlock faults, halting wafer transfers and reducing overall equipment throughput.

Beyond the immediate process chamber, the health of the throttle valve drive assembly is increasingly monitored through equipment data collection systems. Advanced process control (APC) platforms and fault detection and classification (FDC) systems — such as those integrated with Applied Materials SmartFactory solutions or third-party MES platforms — log valve position data, response time, and pressure deviation metrics. Anomalies in drive assembly performance can be flagged automatically, enabling predictive maintenance scheduling before an unplanned downtime event occurs. Remote diagnostic access through the fab’s equipment monitoring network allows process engineers to review valve performance trends without requiring physical access to the tool.

For fabs integrating legacy Applied Materials tools with modern SCADA or MES environments, the throttle valve control loop data is often aggregated alongside data from other critical subsystems — including RF match networks, gas panel mass flow controllers (MFCs), electrostatic chuck (ESC) temperature controllers, and turbomolecular pump controllers — to provide a holistic view of chamber health. The 0010-19238 assembly’s reliable operation is therefore not isolated to a single mechanical function; it is a data-generating node within the broader equipment intelligence architecture of the fab.

Solving Data Isolation in Semiconductor Process Equipment

One of the persistent challenges in semiconductor equipment maintenance is the fragmentation of component-level performance data. When a throttle valve drive assembly such as the 0010-19238 begins to degrade — exhibiting slower response times, increased position error, or intermittent actuation failures — the symptoms may initially appear as process drift rather than a mechanical fault. Without granular component-level monitoring integrated into the fab’s data infrastructure, engineering teams may spend significant time investigating process chemistry or RF parameters before identifying the root cause in the drive assembly.

The Applied Materials 0010-19238, when maintained in optimal condition and replaced proactively based on performance data, eliminates this diagnostic ambiguity. Fabs that have implemented closed-loop equipment health monitoring — correlating throttle valve position data with chamber pressure trends and wafer-level metrology results — report faster fault isolation, reduced mean time to repair (MTTR), and improved overall equipment effectiveness (OEE). Replacing a worn drive assembly before failure, rather than after an unplanned downtime event, is a straightforward intervention that yields measurable yield and throughput benefits.

ZYPLC maintains verified inventory of the Applied Materials 0010-19238 Throttle Valve Drive Assembly, with each unit subject to pre-shipment functional inspection. All units are covered by a 12-month warranty, and global logistics via DHL and FedEx Express ensures rapid delivery to fab locations worldwide. For volume procurement, consignment stock arrangements, or urgent AOG (Aircraft on Ground equivalent — critical equipment down) requirements, contact the ZYPLC procurement team directly.

Industrial Connectivity FAQ

Q1: Is the Applied Materials 0010-19238 compatible with all Applied Materials CVD and etch systems?
The 0010-19238 Throttle Valve Drive Assembly is designed for specific Applied Materials process chamber configurations. Compatibility depends on the tool model, chamber generation, and throttle valve OEM specification. Please provide your tool model and chamber ID when submitting an RFQ to confirm fitment.

Q2: What is the lead time for the 0010-19238, and do you maintain stock?
ZYPLC maintains active inventory of the 0010-19238. Lead time varies based on current stock levels and destination. Contact our team for real-time availability and expedited shipping options for critical equipment-down situations.

Q3: Does the 0010-19238 come with a warranty, and what does it cover?
Yes. All Applied Materials 0010-19238 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. The warranty covers functional defects identified under normal operating conditions. Each unit undergoes pre-shipment inspection and testing prior to dispatch.

Q4: Can ZYPLC support volume orders or ongoing consignment stock for the 0010-19238?
Yes. ZYPLC supports volume procurement agreements and consignment stock programs for high-usage spare parts including the 0010-19238. This is particularly suited for fabs operating multiple Applied Materials tools with high PM (preventive maintenance) cycle frequency. Contact plc.sales@zyplc.com to discuss a tailored supply arrangement.
