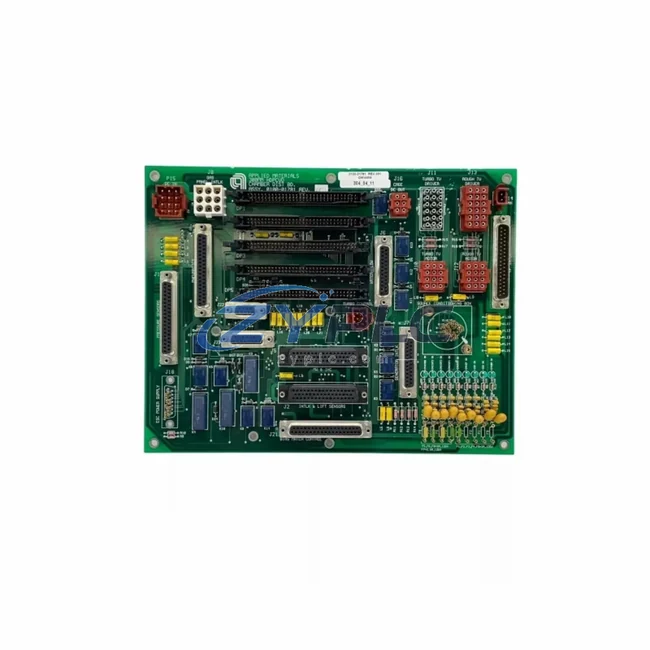

Applied Materials 0100-01781 HDPCVD Chamber Distribution Board | Endura

Applied Materials 0100-01781 HDPCVD Chamber Distribution Board: Critical Signal Distribution and Process Control for Endura Systems

The Applied Materials 0100-01781 (cross-reference: 0010-10521, assembly code AJ530FT-336-B4) is a precision-engineered HDPCVD Chamber Distribution Board designed for the Applied Materials Endura physical vapor deposition (PVD) and high-density plasma chemical vapor deposition (HDPCVD) platform. This board serves as the central signal routing and power distribution hub within the process chamber, managing real-time communication between the chamber’s subsystems, the system controller, and the fab-level process management infrastructure.

In advanced semiconductor fabrication environments, the distribution board is not a passive component — it is the nerve center of chamber-level automation. It coordinates signal flow between the RF match network, gas delivery manifold controllers, electrostatic chuck (ESC) power supply, throttle valve actuators, and the chamber pressure transducers, ensuring that every process parameter is accurately captured, transmitted, and acted upon within the tight tolerances demanded by sub-28nm device manufacturing.

Compatibility & Integration Notes

Connected Automation Data Flow

Within the Applied Materials Endura mainframe architecture, the 0100-01781 Chamber Distribution Board operates at the intersection of hardware control and process data acquisition. When a wafer enters the HDPCVD process chamber, the board immediately begins orchestrating a complex chain of subsystem interactions.

The Applied Materials 0190-10971 RF Generator delivers high-frequency plasma excitation energy; the distribution board routes the match network feedback signals to the chamber controller, enabling real-time impedance tuning. Simultaneously, the Applied Materials 0100-09808 ESC Power Supply Board receives clamping voltage commands through the distribution board’s regulated signal paths, ensuring the wafer remains electrostatically secured throughout the deposition cycle.

Gas flow data from the Applied Materials 0190-35965 MFC (Mass Flow Controller) assemblies is aggregated through the distribution board before being relayed to the Endura System Controller — typically running on an Applied Materials 0100-35140 VME Controller Board — where recipe-driven process logic compares real-time flow rates against setpoints and issues corrective commands within milliseconds.

Chamber pressure management relies on the distribution board to relay position feedback from the Applied Materials 0190-09986 Throttle Valve Assembly to the pressure control loop. Any deviation from the target process pressure triggers an immediate closed-loop correction, with the board serving as the critical signal conduit between sensor and actuator.

At the fab level, the Endura platform interfaces with the facility’s Manufacturing Execution System (MES) and SCADA infrastructure via the system controller. The distribution board’s role in maintaining clean, noise-free signal paths directly impacts the quality of process data reported upstream — including wafer-level deposition uniformity metrics, chamber health indicators, and predictive maintenance triggers monitored by the fab’s Equipment Engineering System (EES).

When the Applied Materials 0100-01781 board degrades or fails, the consequences cascade across the entire data chain: RF tuning becomes erratic, ESC clamping loses precision, gas flow feedback is corrupted, and the system controller loses confidence in chamber state — often triggering automatic process aborts and unplanned downtime. Replacing this board with a verified, tested unit restores full signal integrity and returns the chamber to qualified process performance.

Solving Data Isolation in Semiconductor Process Chambers

One of the most persistent challenges in semiconductor equipment maintenance is the loss of signal transparency when a distribution board begins to fail intermittently. Unlike a catastrophic failure that immediately halts production, a degrading 0100-01781 board may introduce subtle signal noise, intermittent communication dropouts between the RF match and the controller, or inconsistent ESC voltage feedback — all of which manifest as unexplained process drift, yield excursions, or wafer-level defect patterns that are difficult to trace to a root cause.

By replacing the distribution board with a fully tested Applied Materials 0100-01781 unit, fab engineers restore complete signal transparency across the chamber’s subsystems. Every sensor reading, every actuator command, and every process feedback loop is once again routed through a clean, verified signal path — eliminating the data isolation that occurs when a degraded board introduces noise or intermittent open circuits into the communication chain.

This restoration of signal integrity directly supports the fab’s broader goals of process transparency, real-time monitoring accuracy, and predictive maintenance capability. With a reliable distribution board in place, the Endura chamber can once again contribute clean, trustworthy data to the fab’s MES and SCADA systems — enabling engineers to make confident process decisions based on accurate chamber telemetry rather than noisy, unreliable signals.

For fabs operating multiple Endura chambers in parallel, maintaining a verified spare 0100-01781 board in inventory is a standard risk mitigation practice. The ability to swap a suspect board and restore chamber qualification within a single maintenance window — rather than waiting weeks for OEM lead times — is a critical factor in sustaining fab throughput and meeting wafer output commitments.

Industrial Connectivity FAQ

Q: Is the Applied Materials 0100-01781 compatible with all Endura platform configurations?
A: The 0100-01781 is designed for the Applied Materials Endura HDPCVD chamber configuration. Cross-reference part numbers 0010-10521 and assembly code AJ530FT-336-B4 confirm compatibility. We recommend verifying your specific Endura mainframe revision and chamber module type before ordering. Our technical team can assist with compatibility confirmation.

Q: How is the board tested before shipment?
A: Every 0100-01781 unit undergoes functional verification prior to shipment, including signal continuity testing, connector integrity inspection, and visual inspection for component-level damage. Units are shipped with full documentation and are covered by a warranty terms confirmed during quotation against defects in materials and workmanship.

Q: What is the lead time and shipping availability?
A: The 0100-01781 is maintained in availability subject to RFQ confirmation and is available for shipment arranged after confirmation globally. Standard lead time from confirmation to dispatch is 1–3 business days. Expedited shipping options are available for urgent fab requirements.

Q: What warranty coverage is included?
A: All Applied Materials 0100-01781 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Warranty coverage includes functional failure under normal operating conditions. Our support team provides technical assistance throughout the warranty period to ensure successful chamber requalification after installation.
