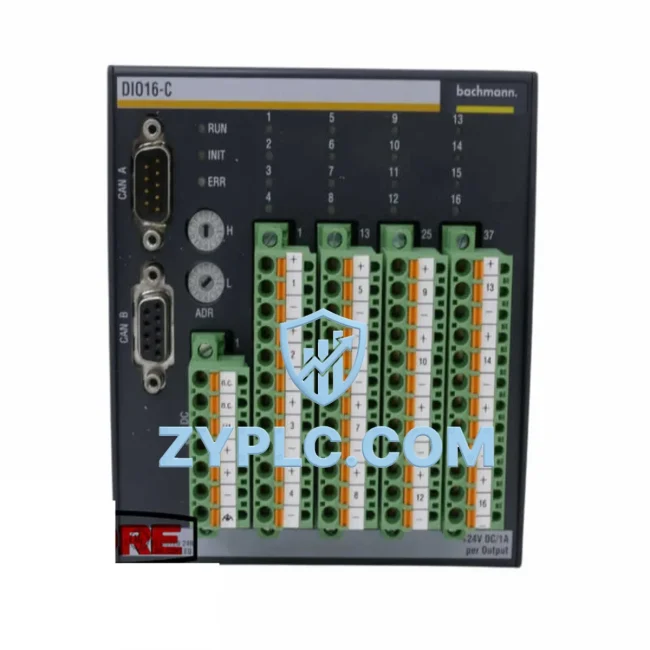

The Bachmann DIO16/C (SKU: DIO16-C) is a high-performance 16-channel digital I/O module engineered for demanding industrial automation environments. As a core component of the Bachmann Electronic Series, the DIO16/C bridges the gap between field-level devices and upper-layer control systems, delivering reliable, real-time digital signal acquisition and output across complex industrial network architectures. Whether deployed in discrete manufacturing, process automation, or energy management, this module serves as a critical node in the smart factory data chain — connecting sensors, actuators, PLCs, remote I/O stations, HMI panels, SCADA platforms, and edge gateways into a unified, transparent communication fabric.

Network Communication Table

Connected Automation Data Flow

In a modern smart factory, the Bachmann DIO16/C operates at the intersection of field instrumentation and supervisory control. The data flow begins at the sensor layer, where proximity switches, photoelectric sensors, and limit switches feed discrete signals directly into the DIO16/C’s 16 configurable digital channels. These signals are then processed and transmitted upstream via CANopen to the Bachmann M1 Controller — the central PLC platform of the Electronic Series — which orchestrates logic execution across the entire automation cell.

Within the same network segment, the DIO16/C works in close coordination with the Bachmann AIO288/C analog I/O module, enabling mixed signal acquisition from both digital and analog field devices without requiring additional protocol converters. For distributed control architectures, the module integrates seamlessly with Bachmann MPC240 motion controllers and Bachmann CPC210 compact PLCs, sharing real-time I/O data over the CANopen bus with deterministic cycle times suitable for high-speed machine control.

At the network communication layer, the DIO16/C’s Modbus TCP/RTU capability allows it to interface directly with third-party SCADA systems such as Wonderware, Ignition, and Siemens WinCC, transmitting digital status data — valve positions, motor run/stop states, alarm contacts — to the supervisory layer without latency. Industrial Ethernet switches, such as those from the Hirschmann MICE or Phoenix Contact FL SWITCH families, provide the backbone infrastructure that connects the Bachmann controller network to the plant-wide SCADA and MES systems.

For remote I/O expansion, the DIO16/C can be paired with Bachmann NT255 network terminals or similar distributed I/O nodes, extending the digital I/O footprint across large production floors while maintaining a single unified CANopen network address space. HMI panels — including Bachmann-compatible displays and third-party Weintek or Siemens TP series panels — retrieve real-time digital status from the M1 controller via Modbus TCP, presenting operators with live machine state visualization and alarm management dashboards.

At the edge, industrial IoT gateways such as the Moxa MGate series or Advantech ADAM-3600 collect aggregated I/O data from the Bachmann network and forward it to cloud-based analytics platforms or on-premise MES systems via MQTT or OPC-UA, completing the data chain from field device to enterprise system. Variable frequency drives (VFDs) and servo drives connected to the same automation cell receive start/stop and fault-reset commands through the DIO16/C’s digital outputs, closing the control loop between the PLC and the drive layer.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the fragmentation of process information across incompatible protocols, legacy equipment, and siloed control systems. The Bachmann DIO16/C directly addresses this challenge through its multi-protocol architecture, supporting CANopen, Modbus RTU/TCP, and PROFIBUS DP simultaneously, enabling it to act as a protocol bridge between older field devices and modern Ethernet-based control networks.

In brownfield installations where legacy PLCs communicate over PROFIBUS and new controllers operate on CANopen or Modbus TCP, the DIO16/C serves as a transparent gateway, collecting digital signals from legacy field devices and republishing them in formats consumable by modern SCADA and MES platforms. This eliminates the need for costly rip-and-replace upgrades, allowing manufacturers to extend the operational life of existing infrastructure while progressively migrating toward Industry 4.0 architectures.

For remote monitoring and diagnostics, the DIO16/C’s integration with the Bachmann M1 platform enables remote access to real-time I/O status, channel diagnostics, and fault history via standard engineering tools. Maintenance engineers can identify open-circuit faults, signal bounce issues, or wiring errors remotely — reducing mean time to repair (MTTR) and minimizing unplanned downtime. Alarm signals from field devices are captured at the DIO16/C level and propagated through the network to SCADA alarm management systems within milliseconds, ensuring operators receive timely fault notifications regardless of their physical location.

Production line transparency is further enhanced by the DIO16/C’s ability to timestamp digital events at the module level, providing accurate sequence-of-events (SOE) data for post-incident analysis and OEE (Overall Equipment Effectiveness) reporting. As production demands grow, the modular architecture of the Bachmann Electronic Series allows additional DIO16/C modules to be added to the M1 rack without system reconfiguration, providing seamless system scalability from small machine cells to plant-wide automation networks.

Every Bachmann DIO16/C unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying channel integrity, protocol communication, and power consumption within specification. All units are covered by a 12-month warranty, with in-stock availability and global shipping to support urgent maintenance and project timelines.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bachmann DIO16/C support, and is it compatible with third-party SCADA systems?
The DIO16/C supports CANopen, Modbus RTU/TCP, and PROFIBUS DP, making it compatible with a wide range of SCADA platforms including Wonderware InTouch, Ignition by Inductive Automation, Siemens WinCC, and GE iFIX. Modbus TCP is the most common integration path for third-party SCADA connectivity, with typical polling cycles of 10–100ms depending on network load and SCADA configuration.

Q2: How does the DIO16/C ensure network stability in high-noise industrial environments?
The Bachmann DIO16/C is designed to operate in electrically noisy industrial environments, featuring optically isolated digital inputs to prevent ground loop interference and EMI-induced false triggering. The CANopen bus architecture provides inherent error detection and automatic retransmission, ensuring data integrity even in environments with significant electromagnetic interference from VFDs, welding equipment, and high-current motor starters.

Q3: Can the Bachmann DIO16/C be expanded as production requirements grow?
Yes. The Bachmann Electronic Series uses a modular rack-based architecture, allowing additional DIO16/C modules and other I/O types — such as the AIO288/C for analog signals — to be added to the M1 controller rack without modifying the existing network configuration. The CANopen master automatically detects new nodes during startup, minimizing commissioning time for system expansions.

Q4: What does the 12-month warranty cover, and how does ZYPLC handle pre-shipment testing?
All Bachmann DIO16/C units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification including digital channel I/O testing, protocol communication checks, and power supply validation. Units that fail any test parameter are quarantined and not shipped. Replacement or repair support is available throughout the warranty period with expedited logistics options for critical production environments.
