Bentley Nevada 330854-040-24-CN Proximity Sensor for 3300 XL Systems

Bentley Nevada 330854-040-24-CN: Industrial Data Link for 3300 XL Condition Monitoring Networks

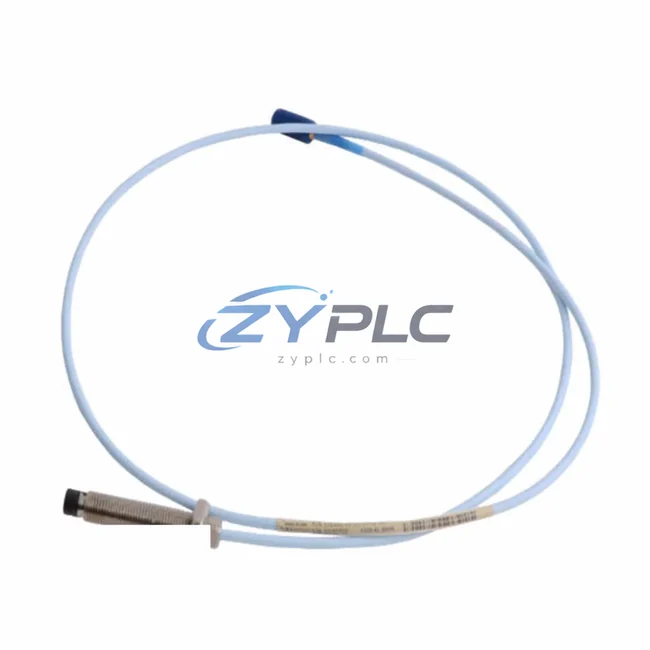

The Bentley Nevada 330854-040-24-CN is a high-precision eddy-current proximity sensor engineered for the 3300 XL Series machinery protection and condition monitoring platform. Designed to operate at the intersection of rotating equipment diagnostics and industrial network communication, this sensor serves as a critical data acquisition node within smart factory architectures — converting mechanical displacement and vibration signals into real-time digital data streams that feed SCADA systems, DCS controllers, and plant-wide asset management platforms.

In modern industrial environments, the integrity of the data chain from field device to control room is non-negotiable. The 330854-040-24-CN anchors this chain at the signal acquisition layer, delivering sub-millisecond response times and micron-level resolution that upstream systems depend on for accurate condition assessment, predictive maintenance scheduling, and alarm management.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330854-040-24-CN proximity sensor operates as the primary signal source within a layered industrial data architecture. At the field level, the sensor mounts adjacent to rotating shaft surfaces — turbines, compressors, pumps, and motors — and continuously measures radial vibration, axial displacement, and shaft eccentricity with micron-level accuracy. This raw analog signal is transmitted via matched extension cable to a Bentley Nevada 3300 XL Proximitor/Seismic Monitor, which conditions and amplifies the signal before passing it upstream.

Within the Bentley Nevada 3500 Series Machinery Protection Rack, the conditioned signal is processed by dedicated monitor cards — such as the 3500/42M Proximitor/Seismic Monitor and the 3500/22M Transient Data Interface — which apply alarm thresholds, danger limits, and trip logic in real time. These rack-level decisions are communicated downstream to PLC platforms including GE Fanuc Series 90-30 or Siemens S7-300 controllers via hardwired relay outputs or digital communication modules.

For plant-wide data integration, the 3500 rack connects to Bentley Nevada System 1 Evolution asset management software through Ethernet TCP/IP, enabling continuous waveform capture, spectrum analysis, and trend logging. System 1 acts as the SCADA-layer gateway, feeding processed vibration data to Honeywell Experion PKS or Emerson DeltaV DCS platforms via OPC-DA or OPC-UA protocol bridges. This ensures that operators at the control room HMI — whether running Wonderware InTouch or Ignition SCADA — receive live machinery health data alongside process variables from field transmitters and remote I/O modules.

At the edge layer, Moxa industrial Ethernet switches and HMS Anybus gateways facilitate protocol conversion between the Bentley Nevada network segment and plant Ethernet backbones running PROFINET or EtherNet/IP. This architecture ensures that the vibration data captured by the 330854-040-24-CN is not siloed within the machinery protection system but flows seamlessly into the plant’s unified data fabric — enabling cross-system correlation between vibration anomalies, process upsets, and energy consumption data from ABB ACS880 variable frequency drives and Endress+Hauser flow transmitters.

Remote diagnostic capability is maintained through secure VPN tunnels to the plant historian, allowing maintenance engineers to access real-time and historical vibration trends from off-site locations — a critical feature for multi-site asset management programs and predictive maintenance initiatives.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in rotating equipment monitoring is the fragmentation of machinery health data from the broader plant information system. Legacy installations often rely on standalone vibration analyzers with proprietary data formats, creating information silos that prevent maintenance teams from correlating machinery behavior with process conditions or energy metrics.

The Bentley Nevada 330854-040-24-CN, when deployed within the 3300 XL and 3500 Series ecosystem, directly addresses this isolation problem. By standardizing signal output through the 3500 rack’s communication modules, plant engineers can bridge the gap between machinery protection data and process control networks using OPC-UA servers or Modbus TCP gateways — eliminating the need for manual data export or separate trending software.

Protocol unification is achieved through the 3500 rack’s built-in communication options, which support simultaneous output to multiple systems: relay contacts for hardwired PLC integration, 4–20 mA analog outputs for DCS loop integration, and digital communication for SCADA historian feeds. This multi-protocol output capability means a single 330854-040-24-CN sensor installation can simultaneously serve the machinery protection function, feed the plant DCS, and populate the enterprise asset management database — maximizing the return on instrumentation investment.

For greenfield smart factory projects and brownfield retrofits alike, the 330854-040-24-CN provides a proven, standards-compliant foundation for production line transparency. Real-time vibration alarms can trigger automated maintenance work orders in SAP PM or Maximo, closing the loop between condition monitoring data and maintenance execution — a key enabler of Industry 4.0 asset management strategies.

All units supplied by ZYPLC are sourced from verified supply channels, undergo pre-shipment functional testing, and are covered by a warranty terms confirmed during quotation. Stock availability is maintained for rapid deployment, with global logistics via DHL Express and FedEx International Priority to minimize equipment downtime.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bentley Nevada 330854-040-24-CN support for SCADA integration?
The 330854-040-24-CN is an analog proximity sensor that outputs a conditioned voltage signal to the 3300 XL Proximitor module. When integrated with the Bentley Nevada 3500 Series rack, the system supports Modbus TCP, OPC-DA, and OPC-UA communication to SCADA and DCS platforms. Direct protocol conversion to PROFINET or EtherNet/IP is achievable via third-party gateways such as HMS Anybus or Moxa MGate series.

Q2: How does the 330854-040-24-CN ensure network stability and signal integrity in high-vibration environments?
The sensor is engineered with a robust coaxial cable interface and matched impedance design that minimizes signal attenuation over the specified cable run length. The eddy-current measurement principle is inherently immune to contamination from oil, dust, and moisture, ensuring stable signal output even in harsh industrial environments. The 3300 XL system’s signal conditioning electronics further filter electrical noise before data enters the network.

Q3: Can the 330854-040-24-CN be integrated into an existing Bentley Nevada 3500 rack without system reconfiguration?
Yes. The 330854-040-24-CN is a direct replacement-compatible sensor within the 3300 XL product family. It connects to existing 3300 XL Proximitor/Seismic Monitor modules without requiring rack reconfiguration, provided the cable length and target material specifications are matched. System 1 software configuration may require a sensor calibration update to reflect the new unit’s sensitivity curve.

Q4: What is the warranty coverage and pre-shipment testing process for units supplied by ZYPLC?
All Bentley Nevada 330854-040-24-CN units supplied by ZYPLC carry a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes functional verification testing prior to dispatch, including output signal level checks and insulation resistance testing. Units are shipped with full export documentation and are available for expedited delivery via DHL Express or FedEx International Priority to minimize plant downtime.
