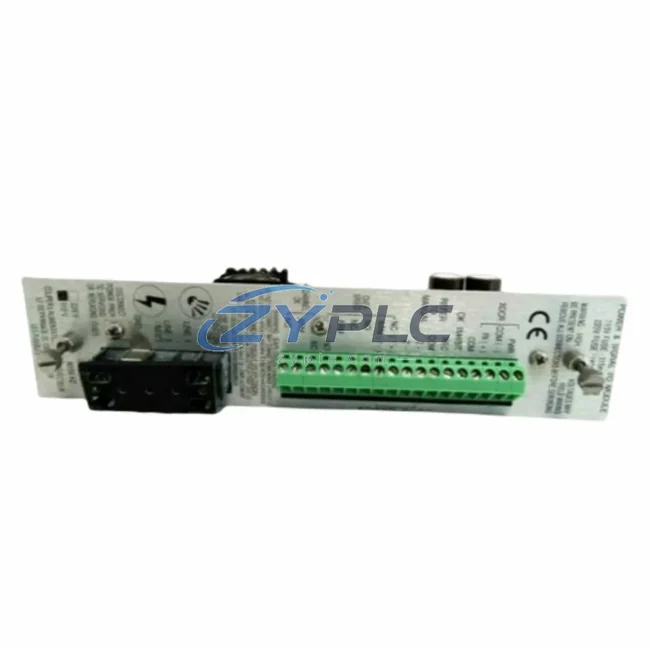

Bently Nevada 102618-01 Power Signal Input Card for 3500 Series

Bently Nevada 102618-01 Power Signal Input Card for 3500 Series

The Bently Nevada 102618-01 is a Power Signal Input Card engineered specifically for deployment within the 3500 Series Machinery Protection System architecture. As a critical component at the intersection of the power layer and signal acquisition layer, this module ensures that conditioned electrical power and raw transducer signals are correctly routed, filtered, and distributed to downstream monitoring and processing modules. In multi-rack 3500 Series installations — common in turbomachinery protection for gas turbines, steam turbines, compressors, and large rotating equipment — the 102618-01 plays a foundational role in maintaining signal integrity and system-wide consistency across all monitoring channels.

Unlike standalone signal conditioners, the 102618-01 is designed for system integration within the 3500 rack backplane ecosystem. It interfaces directly with the 3500/15 Power Supply module to receive regulated DC power, while simultaneously accepting raw vibration, proximity, and process signals from field-mounted transducers such as Bently Nevada 3300 XL 8mm proximity probes and 330180 series extension cables. The card’s architecture ensures that signal paths remain electrically isolated from power distribution rails, a design principle that is essential in high-noise industrial environments such as petrochemical plants, offshore platforms, and power generation facilities.

Within a fully configured 3500 Series rack, the 102618-01 operates in close coordination with the 3500/22M Transient Data Interface, the 3500/40M Proximitor/Seismic Monitor, and the 3500/42M Proximitor/Seismic Monitor to deliver continuous, real-time machinery health data to the control layer. The card’s signal conditioning outputs feed directly into these monitor modules, which in turn communicate alarm and trip states to the 3500/32 Relay Output Module. This relay module interfaces with the plant DCS or safety instrumented system (SIS), completing the signal chain from field sensor to executive action.

System architects integrating the 102618-01 into new or retrofit 3500 Series installations benefit from its compatibility with the 3500/20 Rack Interface Module, which provides the primary communication gateway between the 3500 rack and plant-level networks using Modbus TCP, EtherNet/IP, or proprietary Bently Nevada protocols. This network-layer integration enables remote configuration, alarm acknowledgment, and historical data retrieval from the plant historian or condition monitoring platform — capabilities that are increasingly demanded in modern predictive maintenance programs.

For installations requiring redundancy, the 102618-01 supports deployment alongside the 3500/05 Rack Configuration Module in dual-rack redundant configurations. In these architectures, two complete 3500 racks operate in parallel, with the primary rack actively monitoring and the secondary rack in hot-standby mode. The 102618-01’s deterministic signal routing behavior ensures that switchover events do not introduce transient errors into the monitoring data stream, preserving alarm state continuity and preventing spurious trips during rack failover.

From an engineering commissioning perspective, the 102618-01 is configured using Bently Nevada’s System 1 software platform, which provides a graphical interface for channel assignment, transducer type selection, full-scale range calibration, and alarm setpoint definition. Engineers can verify signal path integrity using the built-in diagnostic functions accessible through the 3500/20 Rack Interface Module, reducing commissioning time and eliminating the need for external signal injection equipment in most standard configurations.

Long-term maintenance of the 102618-01 is simplified by its modular card format, which allows hot-swap replacement in most 3500 rack configurations without requiring a full system shutdown. This capability is particularly valuable in continuous-process industries such as LNG liquefaction, ethylene production, and power generation, where unplanned downtime carries significant financial and safety consequences. Maintaining a spare 102618-01 in the plant’s critical spares inventory is a standard recommendation in Bently Nevada’s machinery protection best practices documentation.

All 102618-01 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and undergo functional testing prior to shipment. Each unit is verified for correct power input acceptance, signal channel continuity, and backplane connector integrity. ZYPLC maintains RFQ-confirmed sourcing of the 102618-01 to support urgent replacement requirements, with global shipping available to support plant maintenance schedules worldwide.

Product Specification Table

System Compatibility Notes

The 102618-01 achieves its full operational value when deployed as part of a coordinated 3500 Series system architecture. At the power layer, the 3500/15 Power Supply Module provides the regulated DC voltage that the 102618-01 distributes to signal conditioning circuits. At the monitoring layer, the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor receive conditioned signals from the 102618-01 and apply alarm logic based on configured setpoints. The 3500/22M Transient Data Interface captures high-resolution waveform data during transient events such as machine startups and coastdowns, using the same signal paths established by the 102618-01.

At the output layer, the 3500/32 Relay Output Module translates alarm and trip states into dry-contact relay outputs that interface with the plant emergency shutdown system (ESD) or DCS. The 3500/20 Rack Interface Module bridges the 3500 rack to plant Ethernet networks, enabling integration with SCADA platforms and historian databases. For human-machine interface requirements, the 3500 system data is typically surfaced through Bently Nevada System 1 Evolution software running on plant workstations, providing trend displays, alarm management, and machinery health dashboards.

In installations requiring terminal block connectivity, the 3500 Series I/O Module Terminal Blocks and associated field wiring termination assemblies ensure that transducer cables from Bently Nevada 3300 XL 8mm Proximity Probes and 330180 Extension Cables are correctly landed and strain-relieved before entering the rack. This complete signal chain — from field sensor through the 102618-01 to the monitor module and relay output — represents the standard Bently Nevada machinery protection architecture deployed in thousands of installations globally.

Industrial Application Notes

The Bently Nevada 102618-01 is deployed across a wide range of heavy industrial applications where continuous machinery protection is non-negotiable. In power generation facilities, the module protects steam and gas turbine trains by ensuring that vibration and axial position signals from critical shaft monitoring points are accurately acquired and processed without interruption. In petrochemical and refining plants, the 102618-01 supports protection of centrifugal compressors, pumps, and gearboxes in hazardous area installations, where signal integrity directly impacts process safety.

In LNG and gas processing facilities, the module’s compatibility with redundant rack architectures makes it suitable for SIL-rated machinery protection loops, where dual-rack configurations provide the fault tolerance required by IEC 61511 functional safety standards. In mining and minerals processing operations, the 102618-01 protects large grinding mills, conveyors, and hoisting equipment, where unexpected machinery failures result in significant production losses. In water and wastewater treatment plants, the module supports protection of large pump stations and blower systems, ensuring continuous operation of critical infrastructure.

For packaging and discrete manufacturing lines that incorporate high-speed rotating equipment, the 102618-01 provides the signal acquisition foundation for condition-based maintenance programs, reducing unplanned downtime and extending equipment service intervals. Across all these applications, the module’s role as the signal and power input interface within the 3500 rack architecture makes it a long-lifecycle component that is specified at the system design stage and maintained throughout the operational life of the machinery protection system.

Product Compatibility FAQ

Q1: Is the Bently Nevada 102618-01 compatible with all 3500 Series rack configurations, including those using the 3500/05 Rack Configuration Module for redundant architectures?
Yes. The 102618-01 is designed for use within the standard 3500 Series 19-inch rack backplane and is compatible with both simplex and dual-rack redundant configurations managed by the 3500/05 Rack Configuration Module. In redundant installations, both the primary and secondary racks require individual 102618-01 cards. ZYPLC recommends maintaining at least one spare unit per installation to support rapid replacement during scheduled or unscheduled maintenance windows, backed by our warranty terms confirmed during quotation.

Q2: What commissioning steps are required when installing a replacement 102618-01 in an existing 3500 Series system?
Replacement of the 102618-01 in an existing system requires verification of rack power status, physical installation of the card into the correct backplane slot, and confirmation of channel assignments using Bently Nevada System 1 software. In most configurations, the replacement card will inherit the existing rack configuration stored in the 3500/05 Rack Configuration Module, minimizing re-commissioning effort. Signal path verification using the diagnostic functions of the 3500/20 Rack Interface Module is recommended before returning the system to service. ZYPLC provides pre-shipment functional testing documentation to support site acceptance testing.

Q3: How does the warranty terms confirmed during quotation from ZYPLC apply to the 102618-01, and what support is available for long-term spare parts management?
All 102618-01 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains ongoing inventory of the 102618-01 and related 3500 Series components to support long-term spare parts programs for plant operators. For critical installations, ZYPLC can provide consignment stock arrangements and priority shipping agreements to ensure that replacement units are available within the response time requirements of your maintenance program. Contact our technical sales team at plc.sales@zyplc.com or +86 19859288691 for spare parts planning support.
